Router 1GbE - WAN ports: 2
| Main Specifications | |
|---|---|

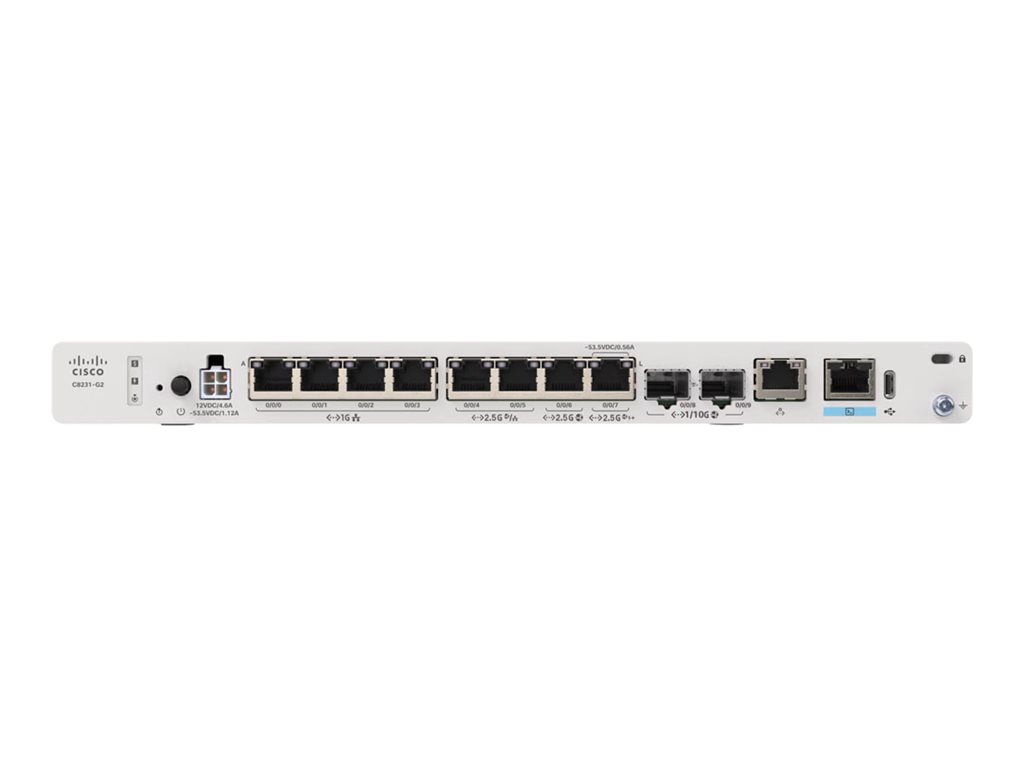

| Product Description | Cisco 8200 Series - router - desktop |
| Device Type | Router |
| Enclosure Type | Desktop |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 5.6 Gbps ¦ IPsec throughput: 3 Gbps ¦ SD-WAN throughput: 2 Gbps ¦ Threat protection (EMIX): 1 Gbps |
| Capacity | IPv4 routes: 1500000 ¦ IPv4 ACL entries: 3000 ¦ Access Control Entries (ACEs) per system (IPv4): 15000 ¦ IPv6 routes: 1500000 ¦ NAT sessions: 1500000 ¦ VRF instances: 4000 ¦ IPSec tunnels: 700 |
| Features | Blue Beacon LED, reset button, fanless |
| Power | AC 85 - 264 V |
| Dimensions (WxDxH) | 10.8 in x 7.2 in x 1.1 in |
| Weight | 3.37 lbs |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 5.6 Gbps ¦ IPsec throughput: 3 Gbps ¦ SD-WAN throughput: 2 Gbps ¦ Threat protection (EMIX): 1 Gbps |
| Capacity | IPv4 routes: 1500000 ¦ IPv4 ACL entries: 3000 ¦ Access Control Entries (ACEs) per system (IPv4): 15000 ¦ IPv6 routes: 1500000 ¦ NAT sessions: 1500000 ¦ VRF instances: 4000 ¦ IPSec tunnels: 700 |
| Features | Blue Beacon LED, reset button, fanless |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status, beaconing |
| Expansion / Connectivity | |
| Interfaces | WAN: 2 x 1Gb Ethernet - RJ-45/SFP ¦ Flex Ports: 2 x 1Gb Ethernet - RJ-45 ¦ LAN: 1 x 1Gb Ethernet - RJ-45 ¦ Management: 1 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x Type C |
| Power | |
| Power Device | External power adapter - 30 watt |
| Installed Qty | 2 (max) |
| Voltage Required | AC 85 - 264 V |
| Power Consumption Operational | 15.4 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 10.8 in |
| Depth | 7.2 in |
| Height | 1.1 in |
| Weight | 3.37 lbs |
