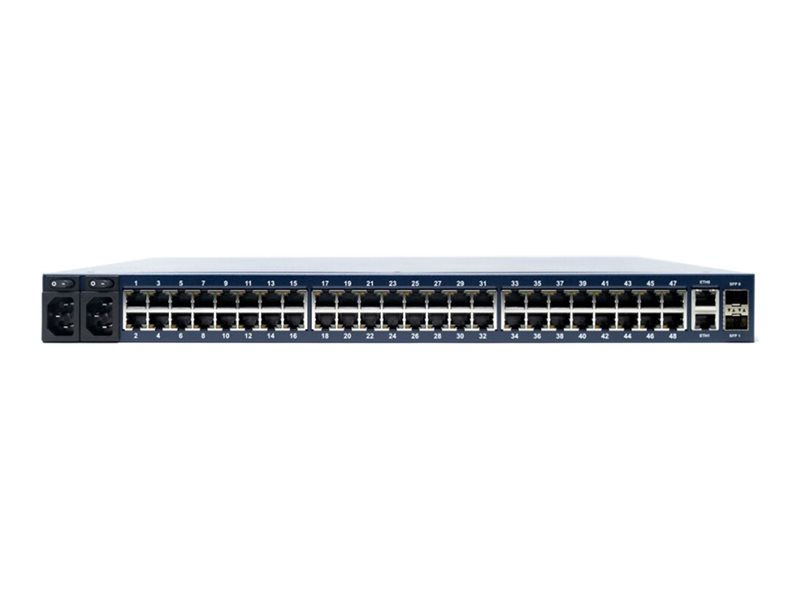

Core Edition - console server - 48 ports - RS-232, 10GbE - 1U - cloud-managed - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | ZPE Nodegrid Serial Console Plus - Core Edition - console server - cloud-managed |
| Device Type | Console server |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Quad Core |
| RAM | 4 GB |
| Hard Drive | 32 GB |
| Ports Qty | 48 |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Capacity | Simultaneous sessions: 100+ ¦ Port buffer (MB): 20 MB |
| Included Accessories | 2 power cords |
| Power | DC 40 - 63 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 12.3 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 12.3 in |
| Height | 1.7 in |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SIM card |
| Interfaces | 48 x RS-232 - RJ-45 ¦ 2 x 10/100/1000Base-T - RJ-45 ¦ 2 x 10Gb Ethernet - SFP+ ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x HDMI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 power cords |
| Cables Included | 1 x console cable |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPv4, IPv6, DHCP |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2, SNMP 3, HTTPS, HTTP, Syslog, Telnet, SSH, SSH-2 |
| Cloud-Managed | Yes |
| Capacity | Simultaneous sessions: 100+ ¦ Port buffer (MB): 20 MB |
| Status Indicators | System, power, reset |
| Features | Failover support, VLAN support, LLDP support, LACP support, Zero-touch provisioning (ZTP), Remote Procedure Call (RPC), Remote Procedure Call (RPC, gRPC), Trusted Platform Module 2.0 (TPM 2.0), UEFI Secture Boot, 4096-bit encryption, IP forwarding support, firewall protection, TCP support, port sharing, port custom field support, break-over SSH support, port icon configuration, port search, web GUI management portal, RESTful APIs, WAN/ZPE Cloud, user levels of access, Orchestration Integration & Automation, 20 MB per local port buffering, off-line data logging, time stamp & rotation for data logging, UEFI Secure Boot, Signed OS, 2-factor authentication, fine grain access control, role based access control, Gen 3 Out-of-Band Management Integration |
| Encryption Algorithm | MD5, TLS 1.1, TLS 1.2, TLS 1.3, TLS 1.0, SHA, RSA |
| Authentication Method | X.509 certificates, Secure Shell (SSH), Active Directory, LDAP, RADIUS, TACACS+, Kerberos, SAML 2.0, Duo |
| Compliant Standards | X.509 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC 40 - 63 V |
| Power Consumption Operational | 45 watt |
| Software / System Requirements | |
| OS Provided | Nodegrid OS (64-bit) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Quad Core |
| RAM | 4 GB DDR4 SDRAM |
| Hard Drive | SSD 32 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 8.2 in |
| Shipping Weight | 19.28 lbs |
