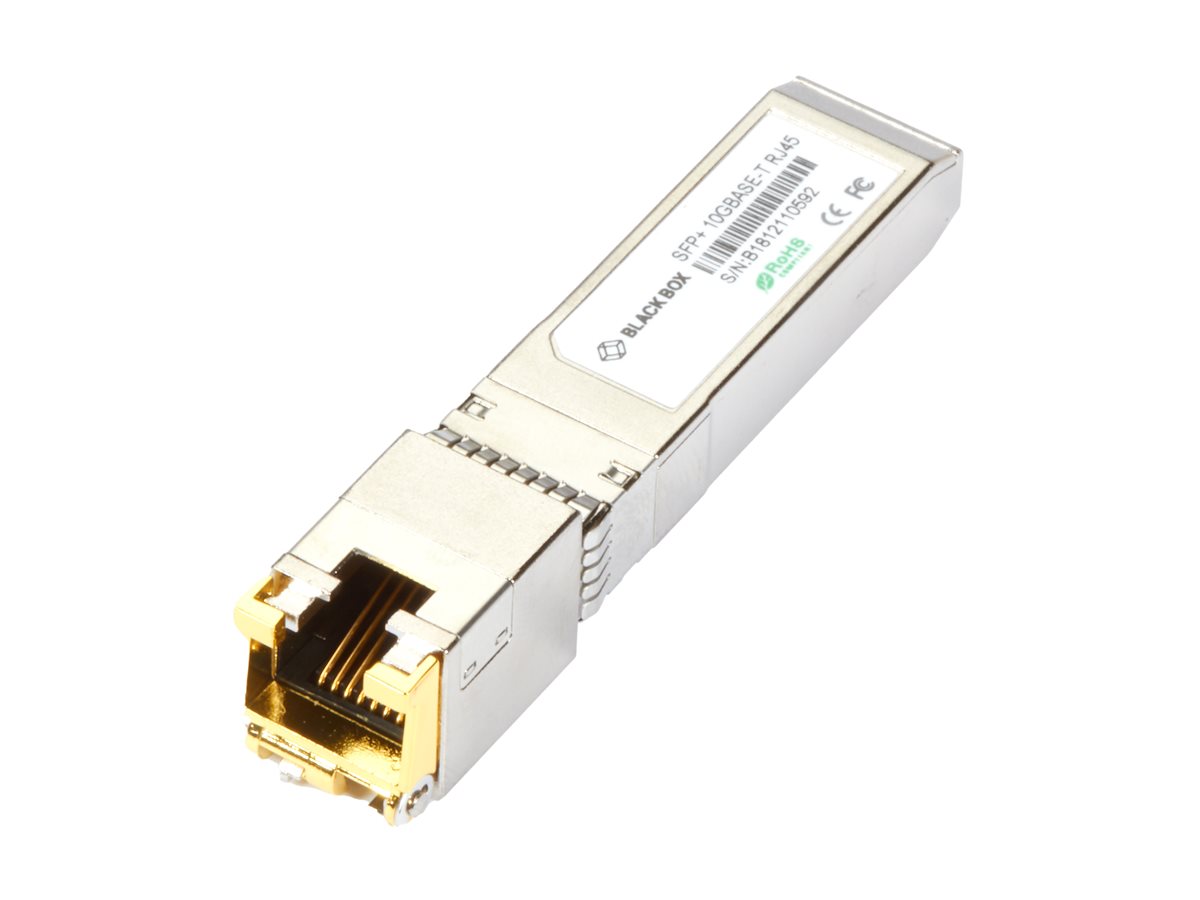

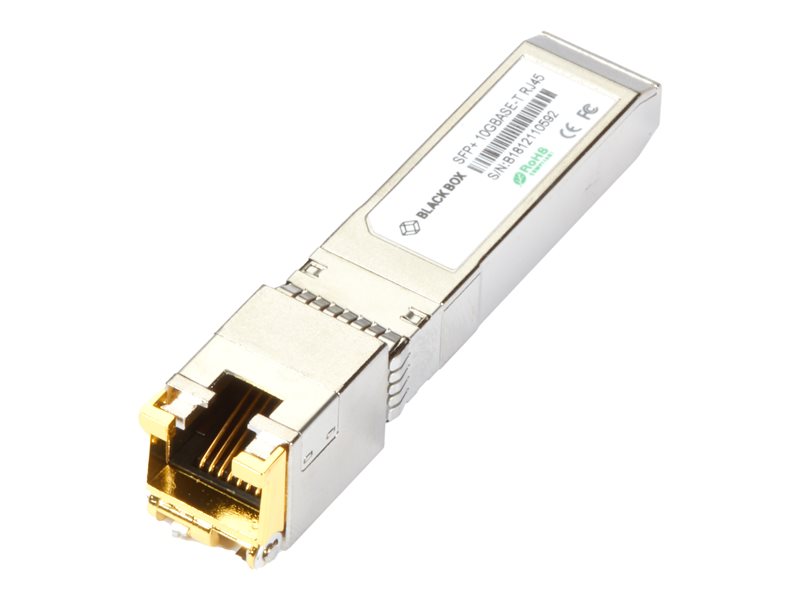

SFP+ transceiver module - 10GbE - over CAT 6a - 10GBase-T - RJ-45 - up to 98 ft - TAA Compliant - with 1 year Double Diamond Warranty
| Main Specifications | |
|---|---|
| Product Description | Black Box LSP444 - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - RJ-45 |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-T |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10GbE |
| Transmission Medium | CAT 6a |
| Max Transfer Distance | 98 ft |
| Power | 3.3 V |
| Dimensions (WxDxH) | 0.6 in x 2.7 in x 0.6 in |
| Weight | 0.56 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Bundled Services | 1 year Double Diamond Warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |

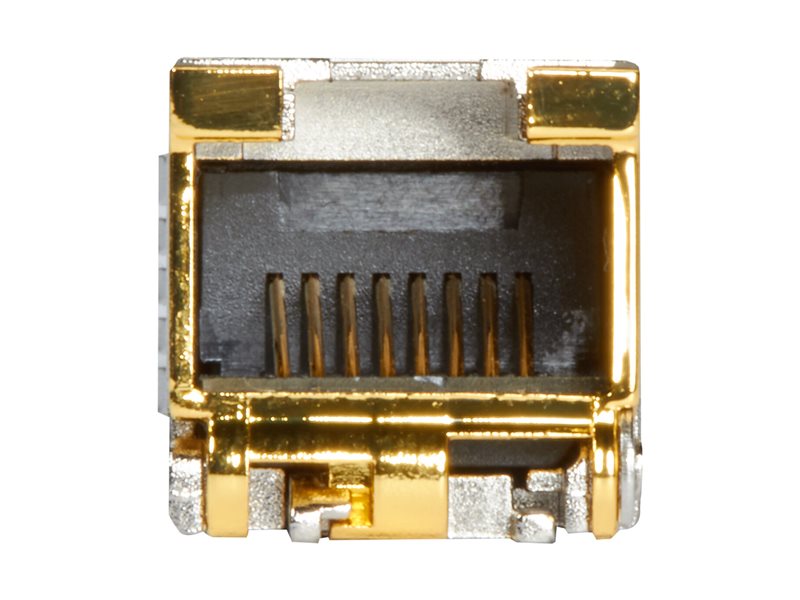

| Interfaces | 1 x Ethernet 10GBase-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Bundled Services | 1 year Double Diamond Warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-T |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Max Transfer Distance | 98 ft |
| Features | Hot-pluggable |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Voltage Required | 3.3 V |
| Power Consumption Operational | 2.26 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.7 in |
| Height | 0.6 in |
| Weight | 0.56 oz |
