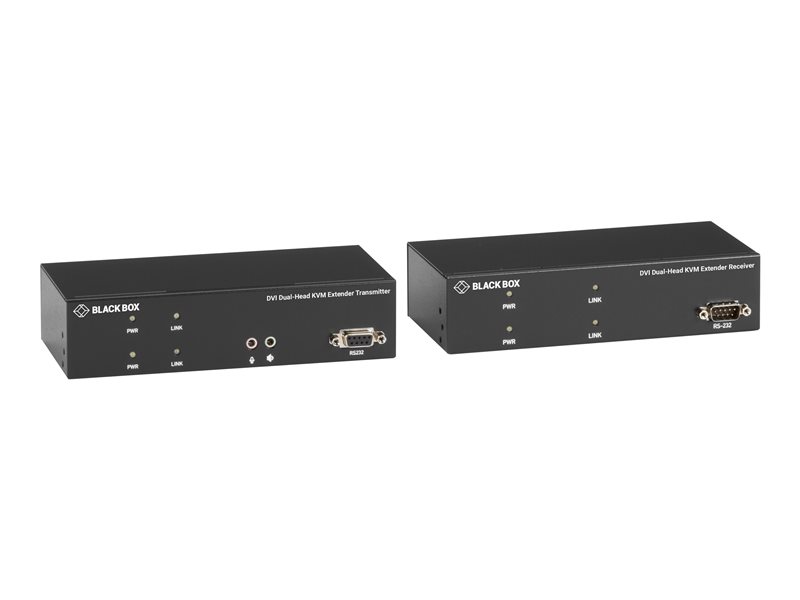

Extender Kit - KVM / audio / serial / USB extender - over fiber optic - USB - up to 1.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box KVX Series - Extender Kit - KVM / audio / serial / USB extender - TAA Compliant |
| Device Type | KVM / audio / serial / USB extender - USB |
| Form Factor | External |
| Localization | United States, Europe, United Kingdom |
| Optical Wave Length | 1310 nm |
| Transmission Medium | Fiber optic |
| Max Transfer Distance | 1.2 miles |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / serial / USB extender |
| Form Factor | External |
| Localization | United States, Europe, United Kingdom |
| Expansion / Connectivity | |
| Interfaces | 2 x DVI-D (transmitter input) female ¦ 1 x serial (transmitter) - DB-9 female ¦ 2 x link (transmitter) - SFP female ¦ 1 x USB (transmitter) - Type B female ¦ 1 x audio line-in (transmitter) - mini jack female ¦ 1 x audio line-out (transmitter) - mini jack female ¦ 2 x DVI-D (transmitter output) female ¦ 2 x DVI-D (receiver output) female ¦ 1 x serial (receiver) - DB-9 male ¦ 2 x USB HID (receiver) - Type A female ¦ 2 x USB 2.0 (receiver) - Type A female ¦ 1 x audio line-in (receiver) - mini jack female ¦ 1 x audio line-out (receiver) - mini jack female ¦ 2 x link (receiver) - SFP female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 desk mount kits, 4 x multimode SFP transceivers (1310 nm) |
| Cables Included | DVI-D cable - 6 ft ¦ 1 x audio cable - 6 ft ¦ 1 x USB type A to USB type B cable - 6 ft |
| Mounting Kit | Included |
| Rack Mounting Kit | Optional |
| MTBF | 137,540 (TX)/165,620 (RX) hours |
| Compliant Standards | MIL-HDBK-217F, Plug and Play, DDC, DDC-2, DDC-2B |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Optical Wave Length | 1310 nm |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Power, link |
| Features | Metal housing, DDC2B compatible, dual monitor support, dual head, extended diagnostics |
| Compliant Standards | USB 2.0 |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Receiver: 7.1 in x 3.3 in x 1.7 in / 18 oz ¦ Transmitter: 7.1 in x 3.3 in x 1.7 in / 18 oz |
