Document scanner - 2 x Contact Image Sensor (CIS) - Duplex - 297.18 x 3556 mm - 600 dpi x 600 dpi - up to 70 ppm (mono) / up to 70 ppm (color) - ADF (150 sheets) - up to 11200 scans per day - USB 3.2 Gen 1, Gigabit LAN, Wi-Fi(ac), USB 2.0 (Host) - for P/N: B12B819291, B12B819791, EPPDSIE1, EPPDSIE2, EPPDSIE4
| Main Specifications | |
|---|---|

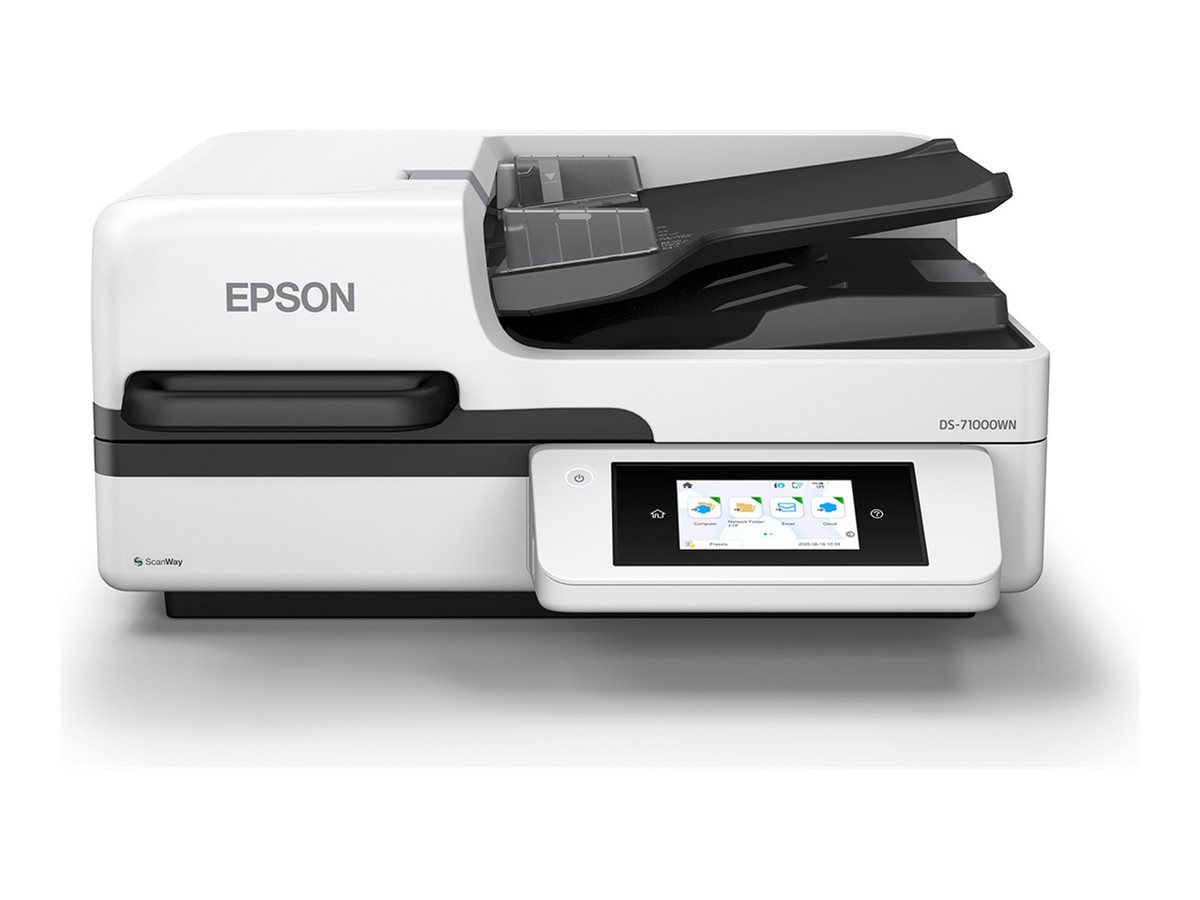

| Product Description | Epson DS-71000WN - document scanner - desktop - USB 3.2 Gen 1, Gigabit LAN, Wi-Fi(ac), USB 2.0 (Host) |
| Device Type | Document scanner - desktop |
| Interface Type | USB 3.2 Gen 1, Gigabit LAN, Wi-Fi(ac), USB 2.0 (Host) |
| Scanning Sensor Type | 2 x Contact Image Sensor (CIS) |
| Light Source | Dual white LED |
| Additional Functions | Scan to USB, scan to network folder, scan to email, scan to online storage accounts |
| Max Supported Document Size | 297.18 x 3556 mm |
| Input Type | Color |
| Grayscale / Color Depth | 10-bit gray / 30-bit color |
| Grayscale / Color Depth (External) | 8-bit (256 gray levels) / 24-bit (16.7 million colors) |
| Optical Resolution | 600 dpi x 600 dpi |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Max Document Scan Speed | 70 ppm (mono) / 70 ppm (color) |
| Max Document Size | 297.18 mm x 14 in |
| Automatic Duplexing | Yes |
| Supported Document Type | Plain paper, bulk objects (such as books, magazines and other bound materials) |
| Document Feeder Type | Automatic |
| Feeder Capacity | 150 sheets |
| Duty Cycle | 11200 scans per day |
| Power | AC 100-240 V (50 - 60 Hz) |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple MacOS X 10.7.5, Apple macOS Tahoe 26 |
| Dimensions (WxDxH) | 21.9 in x 23.8 in x 10.1 in |
| Weight | 43.43 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: B12B819291, B12B819791, EPPDSIE1, EPPDSIE2, EPPDSIE4 |
| General | |
| Type | Document scanner - desktop |
| Interface Type | USB 3.2 Gen 1, Gigabit LAN, Wi-Fi(ac), USB 2.0 (Host) |
| Additional Functions | Scan to USB, scan to network folder, scan to email, scan to online storage accounts |
| Max Supported Document Size | 297.18 x 3556 mm |
| Expansion / Connectivity | |
| Interfaces Details | USB 2.0 (Host) ¦ USB 3.2 Gen 1 ¦ Gigabit LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable |
| Compliant Standards | RoHS |
| Media Handling | |
| Max Document Size | 297.18 mm x 14 in |
| Supported Document Type | Plain paper, bulk objects (such as books, magazines and other bound materials) |
| Supported Document Size Details | ADF - up to 297.18 x 3556 mm ¦ Flatbed - up to 297.18 x 431.8 mm |
| Document Feeder Type | Automatic |
| Feeder Capacity | 150 sheets |
| Power | |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational (Standby) | 27 watt |
| Power Consumption Stand by | 8 watt |
| Power Consumption Sleep | 1.2 watt |
| Software / System Requirements | |
| Software Included | EPSON Document Capture Pro, EPSON Scan 2, Epson Device Admin, EPSON Document Capture for Mac |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple MacOS X 10.7.5, Apple macOS Tahoe 26 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Scanner | |
| Input Type | Color |
| Grayscale Depth | 10-bit gray |
| Grayscale Depth (External) | 8-bit (256 gray levels) |
| Color Depth | 30-bit color |
| Color Depth (External) | 24-bit (16.7 million colors) |
| Optical Resolution | 600 dpi x 600 dpi |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | 2 x Contact Image Sensor (CIS) |
| Lamp / Light Source Type | Dual white LED |
| Max Document Scan Speed B/W | 70 ppm |
| Max Document Scan Speed Color | 70 ppm |
| Control Panel Buttons Functions | Back navigation, home, power, stop |
| Duty Cycle | 11200 scans per day |
| Scanner Speed Details | 70 ppm - black&white - Letter - 200 - 300 dpi ¦ 70 ppm - color - Letter - 200 - 300 dpi ¦ 140 ipm - duplex - black&white - Letter - 200 - 300 dpi ¦ 140 ipm - duplex - color - Letter - 200 - 300 dpi ¦ 4 sec/scan - black&white - Letter - 200 - 300 dpi ¦ 4 sec/scan - color - Letter - 200 - 300 dpi |
| Scanner Features | Ultrasonic sensor, 4.3" touch screen LCD display, built-in OCR, Auto Document Rotation, auto exposure control, Backlight Correction, Color Dropout & Enhance, descreening, dual image output, edge fill, Remove Background, skew correction, Text Enhancement, Unsharp Mask, watermark adding |
| Compliant Standards | TWAIN, ISIS |
| Dimensions & Weight | |
| Width | 21.9 in |
| Depth | 23.8 in |
| Height | 10.1 in |
| Weight | 43.43 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 30.4 in |
| Shipping Depth | 28.6 in |
| Shipping Height | 18.8 in |
| Shipping Weight | 55.12 lbs |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Compatibility Information | |
| Designed For | P/N: B12B819291, B12B819791, EPPDSIE1, EPPDSIE2, EPPDSIE4 |
