Network tester
| Main Specifications | |
|---|---|

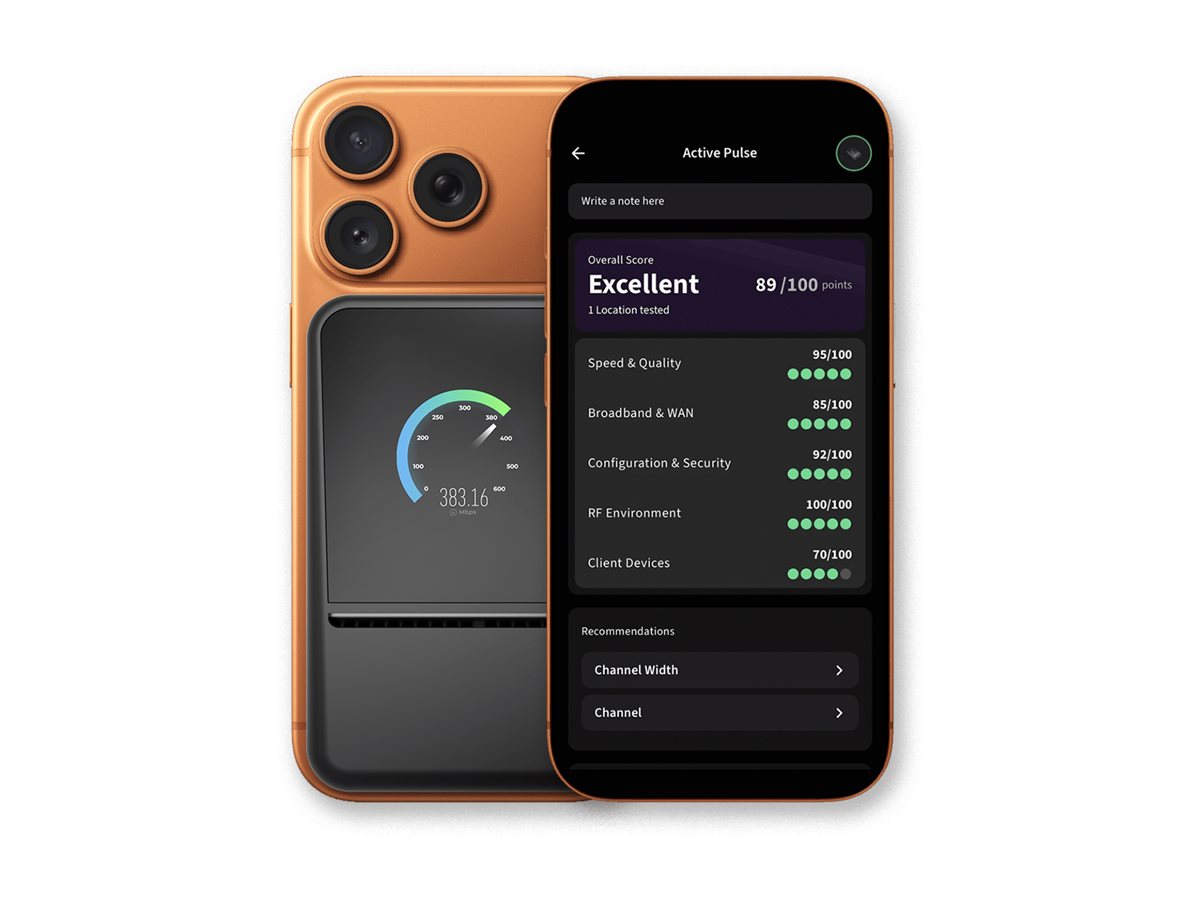

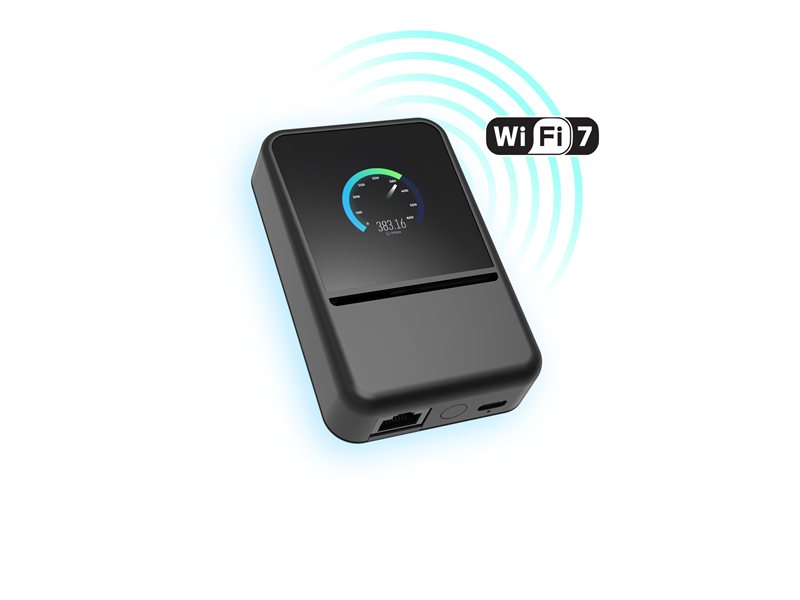

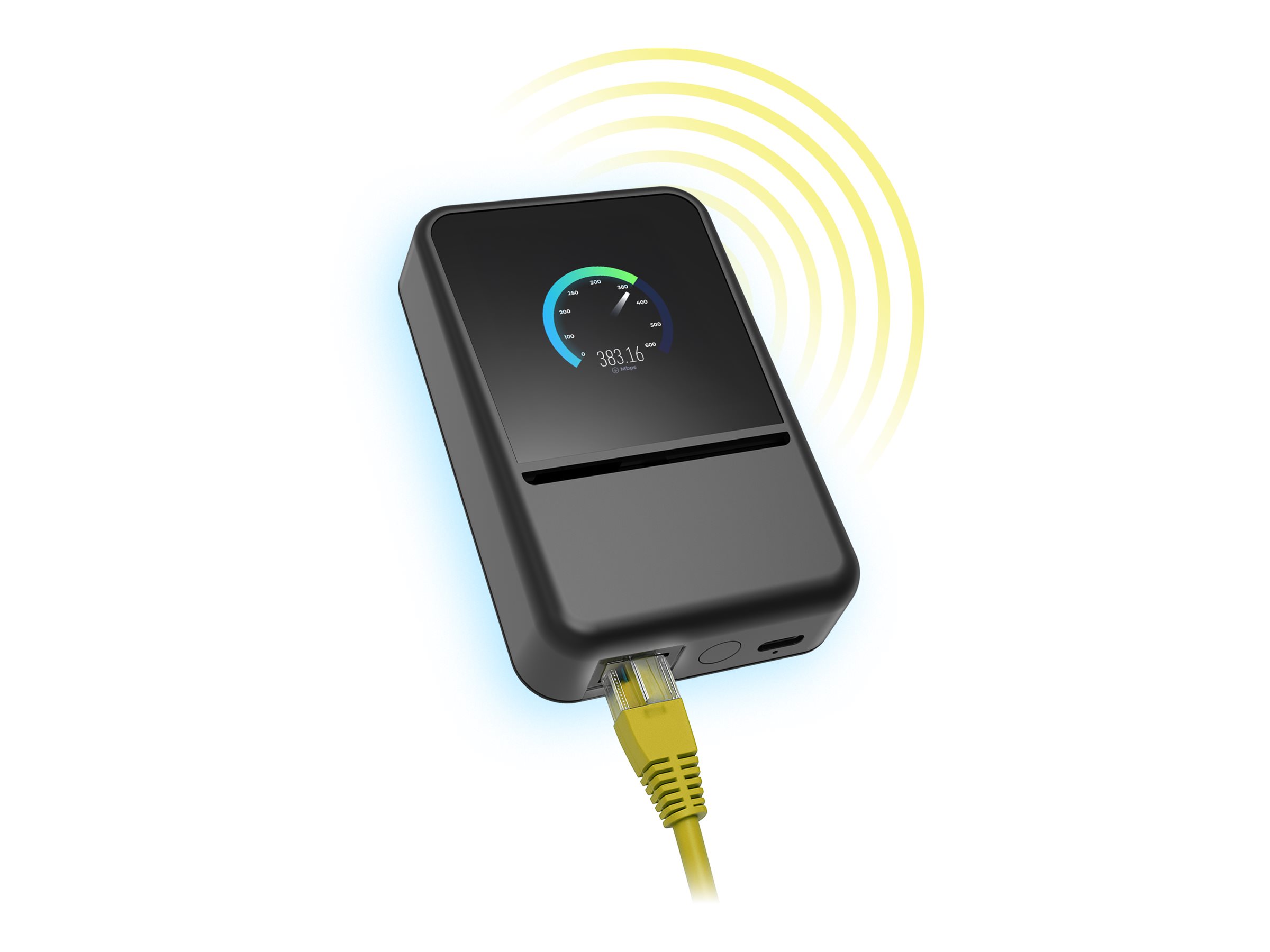

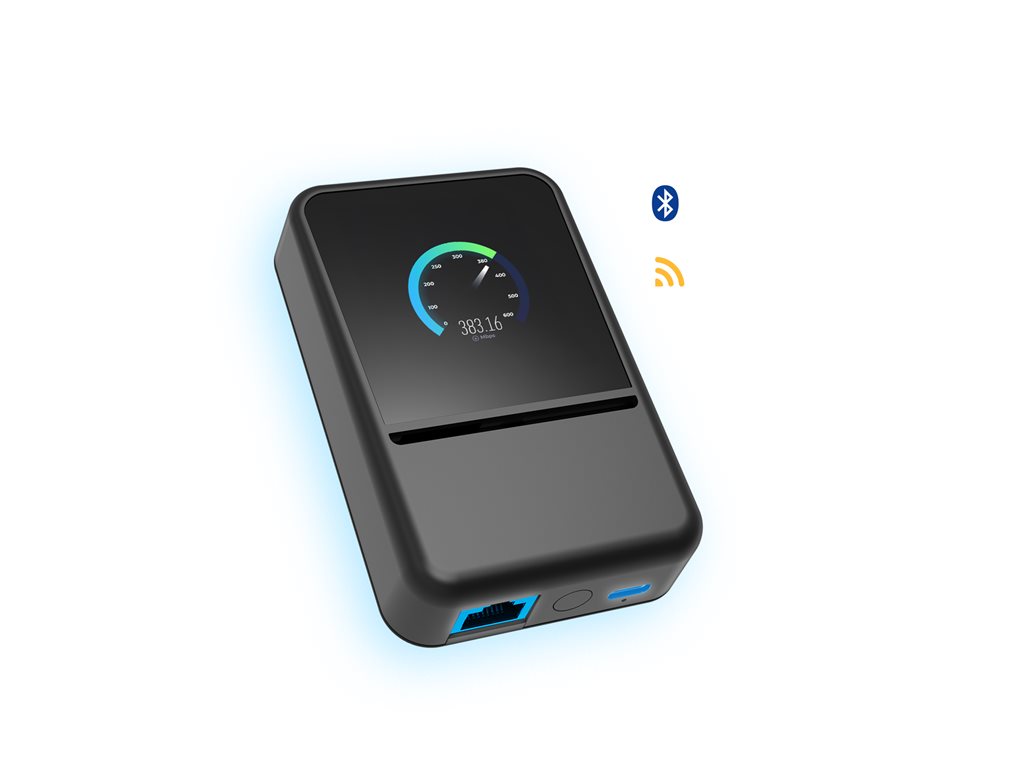

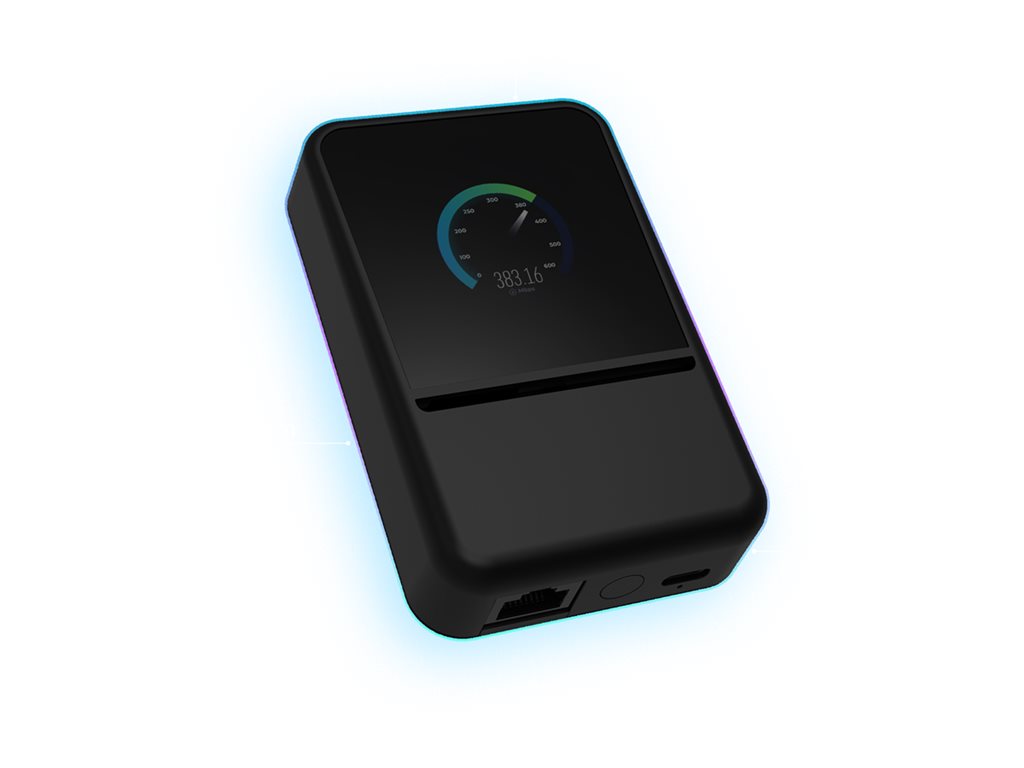

| Product Description | Ekahau Speedtest Pulse STP-1 - network tester |
| Device Type | Network tester |
| Tests, Tools and Measurements | IEEE 802.11 a/b/g/n/ac/ax/be discovery, wireless LAN testing, Ethernet link diagnostic, network connectivity |
| Features | Bluetooth 5.4, PoE support, LED indicators, reset button, magnetic attachment ring |
| Display | 2.1" |
| Dimensions (WxDxH) | 2.6 in x 1 in x 4.1 in |
| Weight | 6.35 oz |
| General | |
| Device Type | Network tester |
| Media | Radio |
| Features | Bluetooth 5.4, PoE support, LED indicators, reset button, magnetic attachment ring |
| Tests, Tools and Measurements | IEEE 802.11 a/b/g/n/ac/ax/be discovery, wireless LAN testing, Ethernet link diagnostic, network connectivity |
| Included Accessories | Carrying pouch |
| Cables Included | 1 x USB-C to USB-C cable |
| Connectors | 24 pin USB type C, RJ-45 |
| Compliant Standards | FCC Part 15, ISED, RED, UKCA, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Battery | |
| Technology | Lithium ion |
| Voltage | 3.7 V |
| Run Time (Up To) | 2 hours |
| Display | |
| Diagonal Size | 2.1" |
| Technology | AMOLED |
| Color Support | Color |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 1 in |
| Height | 4.1 in |
| Weight | 6.35 oz |
