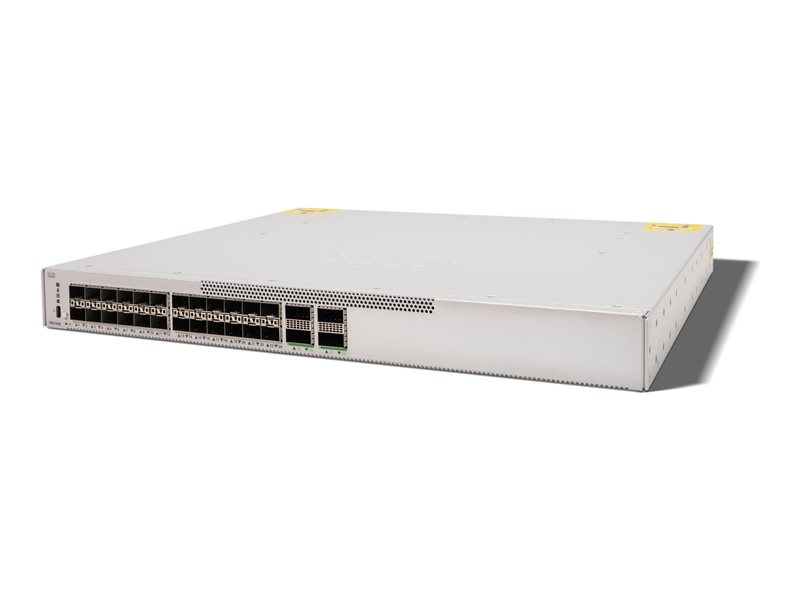

Switch - L3 - smart - 24 x 50 Gigabit SFP56 + 4 x 40/100/400 Gigabit QSFP-DD - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco C9550-24L4CD - switch - 24 ports - smart - rack-mountable |
| Device Type | Switch - 24 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 24 x 50 Gigabit SFP56 + 4 x 40/100/400 Gigabit QSFP-DD |
| Performance | ASIC throughput: 3.2 Tbps ¦ Switching capacity (full duplex): 3.2 Tbps ¦ Forwarding rate: 2.6 Bpps |
| Capacity | Packet buffer memory: 64 MB ¦ IP routes: 512000 ¦ IPv4 routes: 512000 ¦ IPv6 routes: 256000 ¦ ARP entries: 64000 ¦ NDP entries: 64000 ¦ Switched virtual interfaces (SVIs): 4000 ¦ STP Virtual Ports for MST: 100000 ¦ STP Virtual Ports for PVST: 32000 ¦ VLAN IDs: 4094 ¦ Active VLANs: 4094 ¦ IGMP snooping entries: 8000 ¦ Multicast routes: 16000 ¦ QoS ACL scale: 5000 ¦ IPv4 ACL entries (ingress): 21000 ¦ IPv6 ACL entries (ingress): 21000 ¦ IPv4 ACL entries (egress): 21000 ¦ IPv6 ACL entries (egress): 21000 ¦ NetFlow entries: 32000 ¦ GRE tunnels: 1000 ¦ Policy-Based Routing (PBR): 8000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP, policy-based routing (PBR) |
| Remote Management Protocol | NETCONF, RESTCONF, YANG, CLI |
| Features | Post-quantum cryptography (PQC) support, zero-day malware detection, ACL support, Cisco StackWise Technology, ERSPAN, FNF, ISSU, SMU, SSO, SPAN, Preboot Execution Environment, Cisco Trust Anchor module, SecureBoot, full duplex mode, built-in ASIC, IPv6 support, BGP, QoS, SD-Access support, EVPN, cloud managed, Zero-Touch Deployment |
| Power | AC 90-264 V (47 - 63 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 18.1 in x 1.7 in |
| System Requirements | Cisco IOS XE 26.2.1 EA |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet |
| Ports | 24 x 50 Gigabit SFP56 + 4 x 40/100/400 Gigabit QSFP-DD |
| Performance | ASIC throughput: 3.2 Tbps ¦ Switching capacity (full duplex): 3.2 Tbps ¦ Forwarding rate: 2.6 Bpps |
| Capacity | Packet buffer memory: 64 MB ¦ IP routes: 512000 ¦ IPv4 routes: 512000 ¦ IPv6 routes: 256000 ¦ ARP entries: 64000 ¦ NDP entries: 64000 ¦ Switched virtual interfaces (SVIs): 4000 ¦ STP Virtual Ports for MST: 100000 ¦ STP Virtual Ports for PVST: 32000 ¦ VLAN IDs: 4094 ¦ Active VLANs: 4094 ¦ IGMP snooping entries: 8000 ¦ Multicast routes: 16000 ¦ QoS ACL scale: 5000 ¦ IPv4 ACL entries (ingress): 21000 ¦ IPv6 ACL entries (ingress): 21000 ¦ IPv4 ACL entries (egress): 21000 ¦ IPv6 ACL entries (egress): 21000 ¦ NetFlow entries: 32000 ¦ GRE tunnels: 1000 ¦ Policy-Based Routing (PBR): 8000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP, policy-based routing (PBR) |
| Remote Management Protocol | NETCONF, RESTCONF, YANG, CLI |
| Encryption Algorithm | 256-bit AES-GCM |
| Features | Post-quantum cryptography (PQC) support, zero-day malware detection, ACL support, Cisco StackWise Technology, ERSPAN, FNF, ISSU, SMU, SSO, SPAN, Preboot Execution Environment, Cisco Trust Anchor module, SecureBoot, full duplex mode, built-in ASIC, IPv6 support, BGP, QoS, SD-Access support, EVPN, cloud managed, Zero-Touch Deployment |
| Processor | 1 x AMD Quad Core: 3 GHz |
| RAM | 16 GB DDR5 SDRAM |
| Flash Memory | 18 GB |
| Built-in Devices | 5 x fans, 240 GB SSD, RFID tag |
| Status Indicators | Status, system |
| Expansion / Connectivity | |
| Interfaces | 24 x 50Gbit LAN SFP56 ¦ 4 x 40/100/400Gbit LAN QSFP-DD uplink ¦ 1 x console (USB) Type C ¦ 1 x management (LAN) RJ-45 ¦ 1 x USB 3.0 Type A host ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| Rack Mounting Kit | Included |
| MTBF | 339,040 hours |
| Compliant Standards | Plug and Play, AS/NZS 62368.1, ANSI/UL 60950-1, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, ANSI/UL 62368-1, IEC/EN 62368-1, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, FCC 47 CFR Part 15, ICES-003 issue 7, KS C 9832, VCCI-CISPR 32, CNS 15936, CISPR 32, EN 300 386 V2.1.23:2021, CISPR 35, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, KS C 9835, RoHS |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 750 watt |
| Voltage Required | AC 90-264 V (47 - 63 Hz) |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 26.2.1 EA |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 18.1 in |
| Height | 1.7 in |
