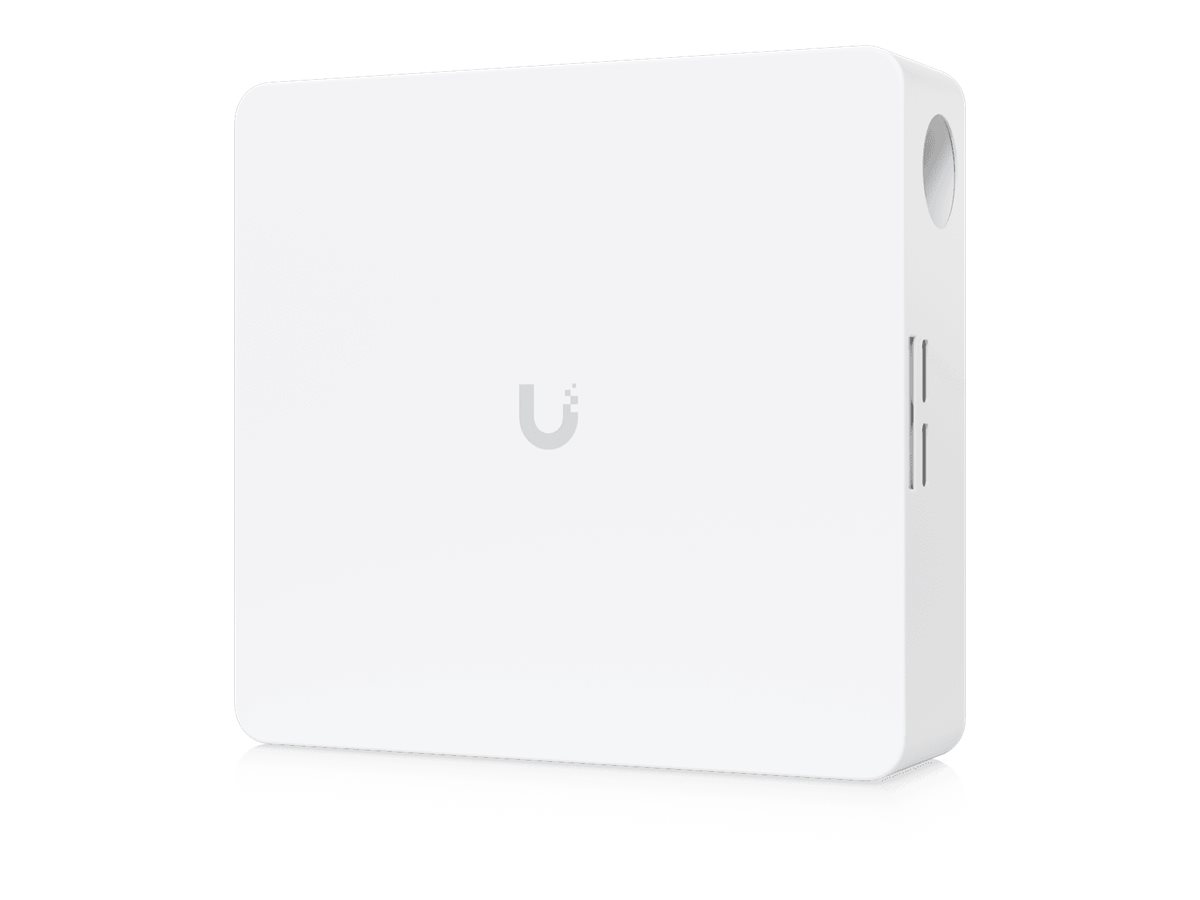

Alarm hub with enclosure - wired - 10/100 Ethernet
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi Protect Alarm Hub Kit - alarm hub with enclosure |
| Product Type | Alarm hub with enclosure |
| Environment | Indoor |
| Placing / Mounting | Wall-mounting |
| Integrated Sensors | Time of Flight (ToF) |
| Power Source | PoE, battery |
| Connectivity | Wired - 10/100 Ethernet |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 14 in x 4.1 in x 14.9 in |
| Designed For | P/N: UACC-POE+++-10G-EU, U-POE++-EU |
| General | |
| Product Type | Alarm hub with enclosure |
| Environment | Indoor |
| Integrated Sensors | Time of Flight (ToF) |
| Power Source | PoE, battery |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet |
| Interfaces Details | Fast Ethernet ¦ 32 x alarm input ¦ Emergency input ¦ Relay output ¦ Relay output ¦ 6 x auxilary output ¦ Power output |
| Features | Backup battery support, tamper detection, LED indicators, reset button, up to 32 sensors, PoE++, SGCC steel housing |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Steel, SGCC, polycarbonate |
| Warranty | 2-year warranty |
| Power Consumption Operational | 90 watt |
| Compliant Standards | NDAA, FCC, IC, IEEE 802.3bt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Software | |
| Type | UniFi Protect |
| Battery | |
| Rechargeable Battery | Rechargeable |
| Required Qty | 1 |
| Technology | Sealed Lead Acid (SLA) |
| Voltage Provided | 12 V |
| Dimensions & Weight | |
| Width | 14 in |
| Depth | 4.1 in |
| Height | 14.9 in |
| Weight | 18.3 lbs |
| Compatibility Information | |
| Designed For | P/N: UACC-POE+++-10G-EU, U-POE++-EU |
