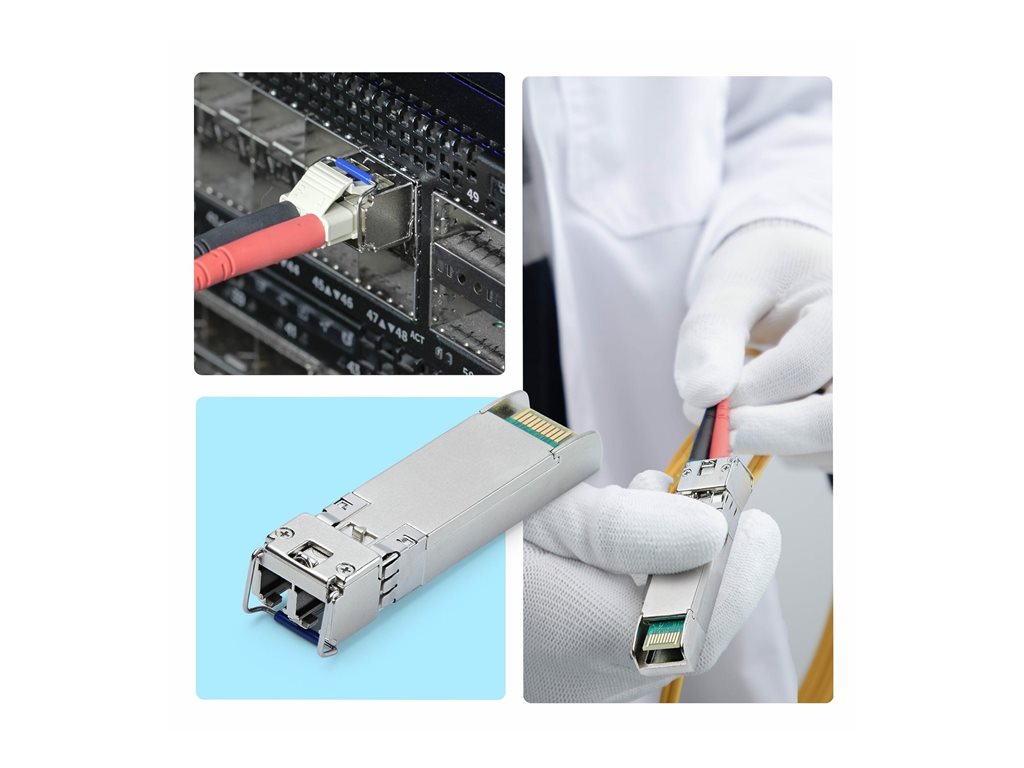

SFP+ transceiver module - 10GbE - 10GBase-LR - LC single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Startech - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-LR |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 6.2 miles |
| Dimensions (WxDxH) | 0.5 in x 2.3 in x 0.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR (uncoded) - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 13,029,315 hours |
| Compliant Standards | MSA |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Industrial temperature rated (IND), Digital Diagnostics Monitoring (DDM), I-Temp, uncoded SFP transceiver support, full duplex mode, Single Mode Fiber (SMF) |
| Compliant Standards | IEEE 802.3ae |
| Power | |
| Power Consumption Operational | 1.2 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.3 in |
| Height | 0.5 in |
