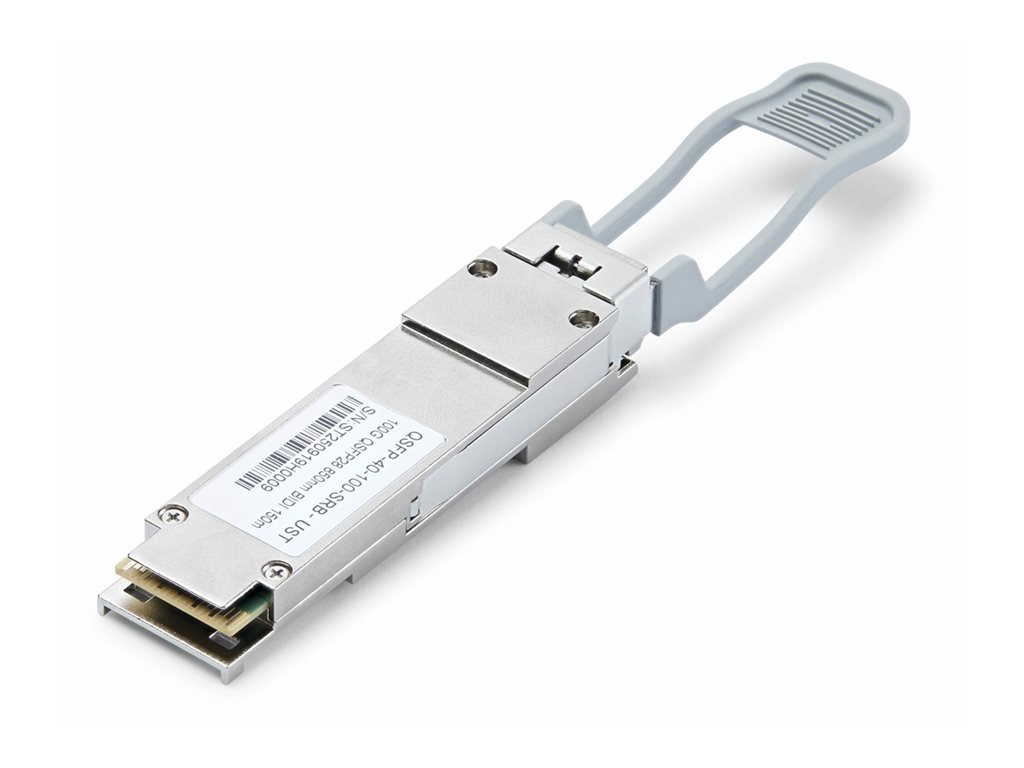

QSFP transceiver module (equivalent to: MSA Generic Q8BL-851H-01D) - 100GbE, 40GbE - 100GBase-SRBD - LC multi-mode - up to 328 ft - 832-918 nm
| Main Specifications | |
|---|---|
| Product Description | Startech - QSFP transceiver module - 100GbE, 40GbE |
| Device Type | QSFP transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100GBase-SRBD |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 832-918 nm |
| Data Link Protocol | 100GbE, 40GbE |
| Max Transfer Distance | 328 ft |
| OEM Manufacturer Equivalent Part Number | MSA Generic Q8BL-851H-01D |
| Dimensions (WxDxH) | 0.7 in x 4.6 in x 0.5 in |
| Manufacturer Warranty | 1-year limited warranty |
| General | |
| Device Type | QSFP transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-SRBD - LC multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 3,543,209 hours |
| Compliant Standards | MSA |
| OEM Manufacturer Equivalent Part Number | MSA Generic Q8BL-851H-01D |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-SRBD |
| Data Link Protocol | 100GbE, 40GbE |
| Data Transfer Rate | 100 Gbps |
| Optical Wave Length | 832-918 nm |
| Max Transfer Distance | 328 ft |
| Features | Half/full duplex mode, Digital Diagnostics Monitoring (DDM), hot swappable |
| Compliant Standards | IEEE 802.3ba |
| Power | |
| Power Consumption Operational | 4 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.6 in |
| Height | 0.5 in |
