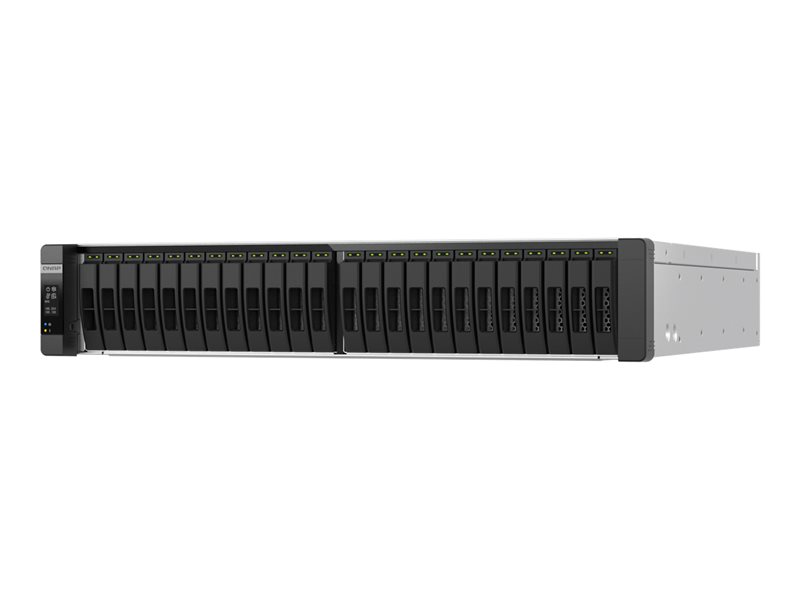

NAS server - U.2/U.3 - RAM 64 GB - 10 Gigabit Ethernet - 2U
| Main Specifications | |
|---|---|
| Product Description | QNAP ES2486AFDC - NAS server |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Dimensions (WxDxH) | 19 in x 20.7 in x 3.5 in |
| Weight | 48.5 lbs () |
| Processor | 1 x Intel Xeon D-2142IT 1.9 GHz (8-core) |
| Storage Controller | U.2/U.3 |
| Networking | 10GbE |
| RAM | 64 GB |
| Power | AC 90-264 V |
| Power Redundancy | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | 2U |
| Total Storage Capacity | 0 GB |
| Width | 19 in |
| Depth | 20.7 in |
| Height | 3.5 in |
| Weight | 48.5 lbs () |
| Built-in Devices | Buzzer, LED panel |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion Slots | 2 (total) / 0 (free) x PCI Express 3.0 x8 |
| Interfaces | 1 x USB 3.2 Gen 2 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EN55022, EN55024, EN60950, BSMI, VCCI, LVD, CB |
| Networking | |
| Data Link Protocol | 10GbE |
| Features | Jumbo Frames support, WOL, floating point unit, hardware-accelerated transcoding, SSD cache acceleration support |
| Encryption Algorithm | AES-NI |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Power Redundancy | Yes |
| Voltage Required | AC 90-264 V |
| Power Provided | 700 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Interface Type | U.2/U.3 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon D-2142IT 1.9 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3 GHz |
| RAM | 64 GB DDR4 |
| Features | Registered, ECC |
| Flash Memory Installed | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 59.3 lbs |
