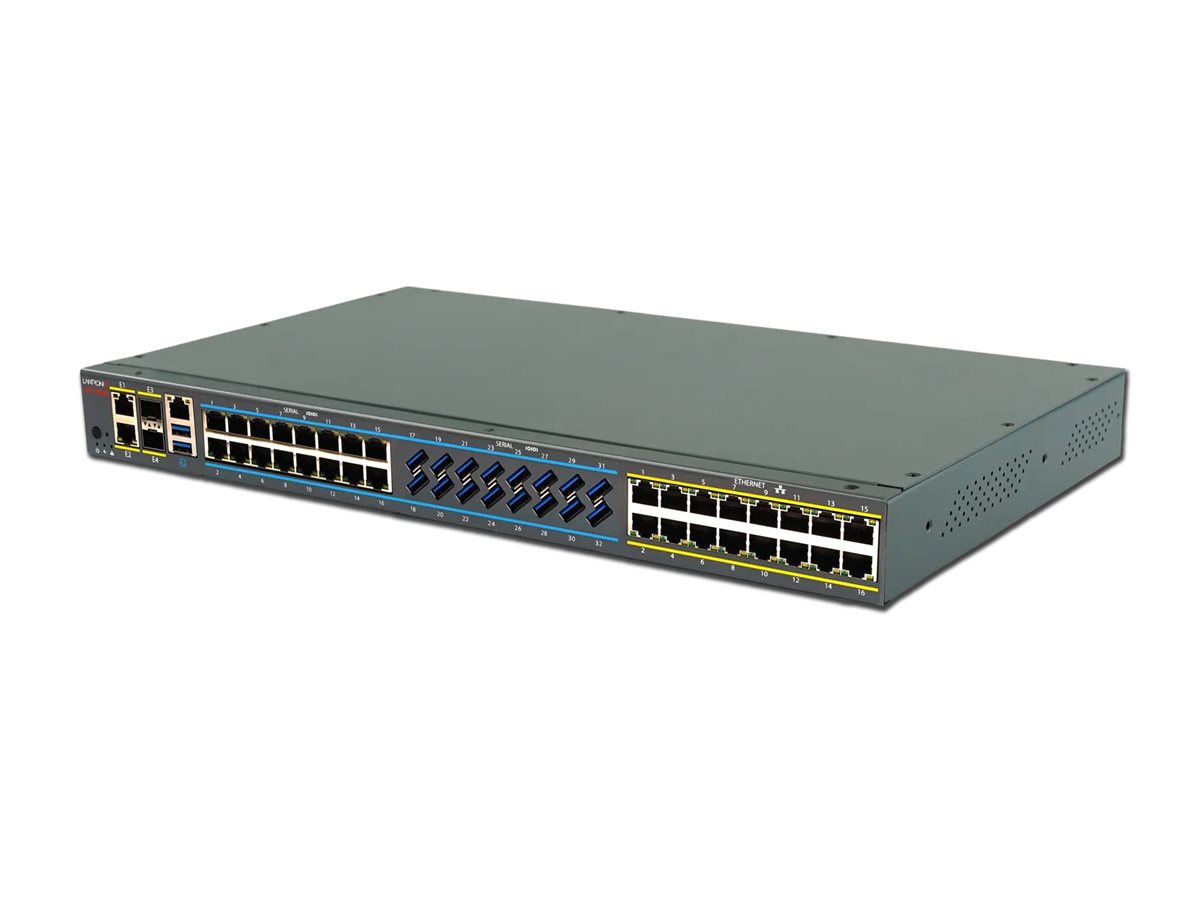

Console server - 32 ports - 1GbE - rack-mountable - TAA Compliant - for P/N: NTC-501-SLC9
| Main Specifications | |
|---|---|
| Product Description | Lantronix SLC 9000 - console server - TAA Compliant |
| Device Type | Console server |
| Form Factor | Rack-mountable |
| Processor | LS1046A - 1.8 GHz |
| RAM | 8 GB |
| Hard Drive | 128 GB |
| Ports Qty | 32 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Included Accessories | 2 rack mounting ears, 4 screws |
| Power | AC 100-240 V (50/60 Hz) |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.5 in x 10.5 in x 1.8 in |
| Weight | 5.95 lbs |
| Designed For | P/N: NTC-501-SLC9 |
| General | |
| Device Type | Console server |
| Width | 17.5 in |
| Depth | 10.5 in |
| Height | 1.8 in |
| Weight | 5.95 lbs |
| Expansion / Connectivity | |
| Interfaces | 16 x serial - RJ-45 ¦ 16 x USB - Type A ¦ 2 x management - SFP+ ¦ 2 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories | 2 rack mounting ears, 4 screws |
| Compliant Standards | FCC Class A certified, TUV, RoHS, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 32 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Status Indicators | Power, status, warning |
| Features | Trusted Platform Module 2.0 (TPM 2.0), power button |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 60 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | LS1046A 1.8 GHz |
| RAM | 8 GB LPDDR4 SDRAM |
| Hard Drive | 128 GB |
| Compatibility Information | |
| Designed For | P/N: NTC-501-SLC9 |
