Video/audio/infrared/serial extender - receiver - HDMI, RS-232, HDBaseT 3.0 - up to 230 ft - for P/N: RK-3T-B
| Main Specifications | |
|---|---|

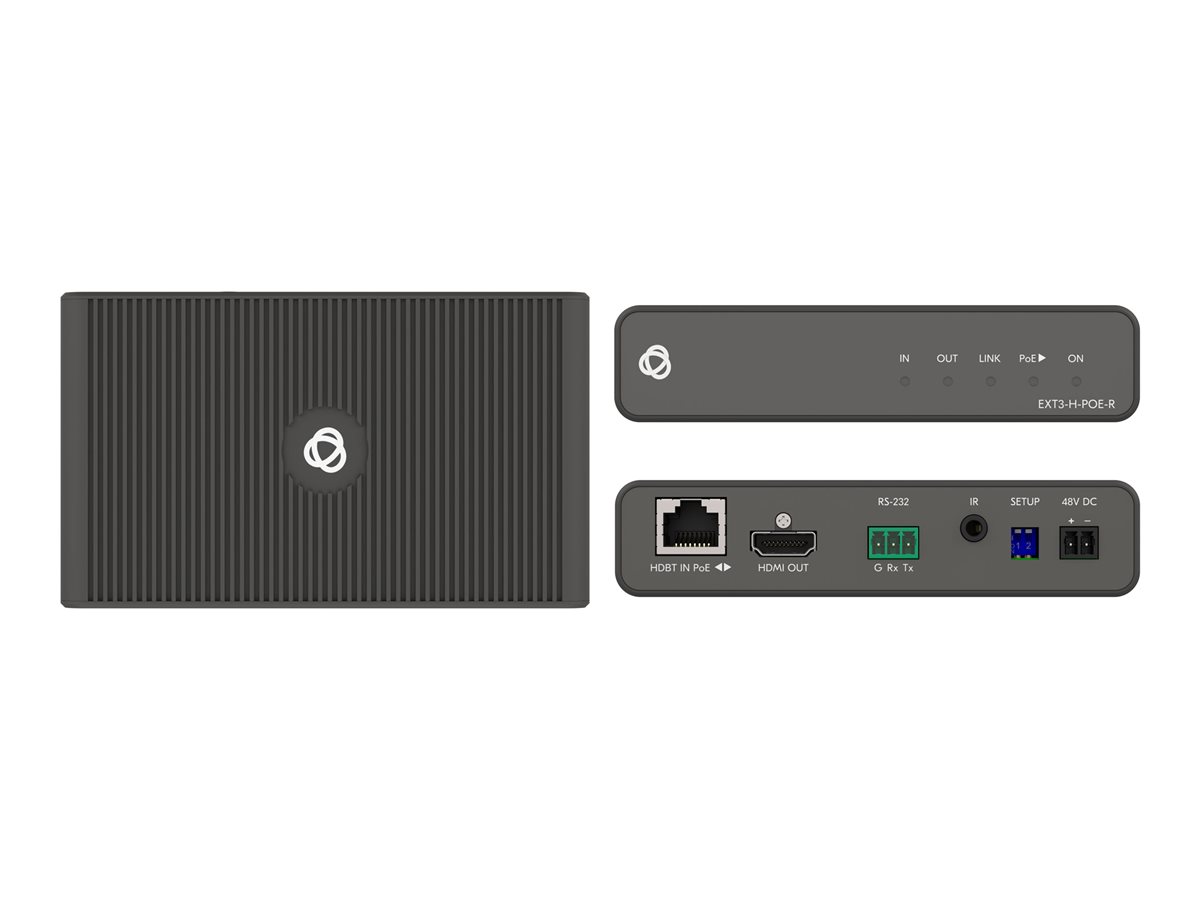

| Product Description | Kramer EXT3-H-POE-R - video/audio/infrared/serial extender - HDMI, RS-232, HDBaseT 3.0 |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDMI, RS-232, HDBaseT 3.0 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 4.7 in x 2.8 in x 1 in |
| Weight | 10.58 oz |
| Designed For | P/N: RK-3T-B |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x HDBaseT input - RJ-45 female ¦ 1 x IrDA - mini jack female ¦ 1 x RS-232 - 3 pin terminal block female |
| Miscellaneous | |
| Included Accessories | Power cord, bracket kit |
| Compliant Standards | EDID compatible, CEC, UL, RoHS, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, RS-232, HDBaseT 3.0 |
| Data Transfer Rate | 18 Gbps |
| Max Transfer Distance | 230 ft |
| Status Indicators | Input, output, link, PoE, power |
| Features | 4K60Hz support, 4:4:4 chroma subsampling support, HDR10 support, 3D support, Deep Color support, Dolby TrueHD support, DTS-HD support, Lip Sync pass-through, x.v.Color support, 32 channel audio support, bi-directional RS-232, bi-directional IR, fanless, aluminum housing |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 2.8 in |
| Height | 1 in |
| Weight | 10.58 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.2 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 3.4 in |
| Shipping Weight | 24.69 oz |
| Compatibility Information | |
| Designed For | P/N: RK-3T-B |
