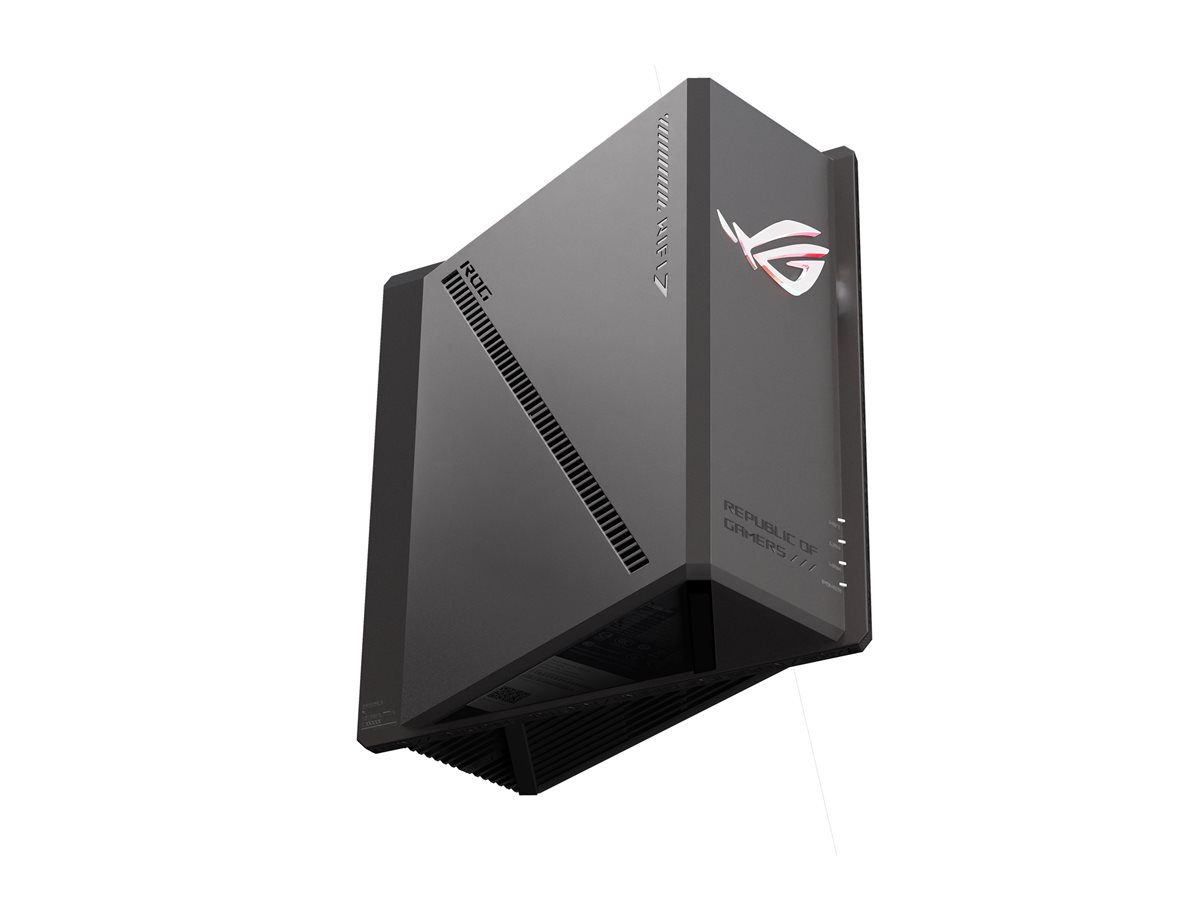

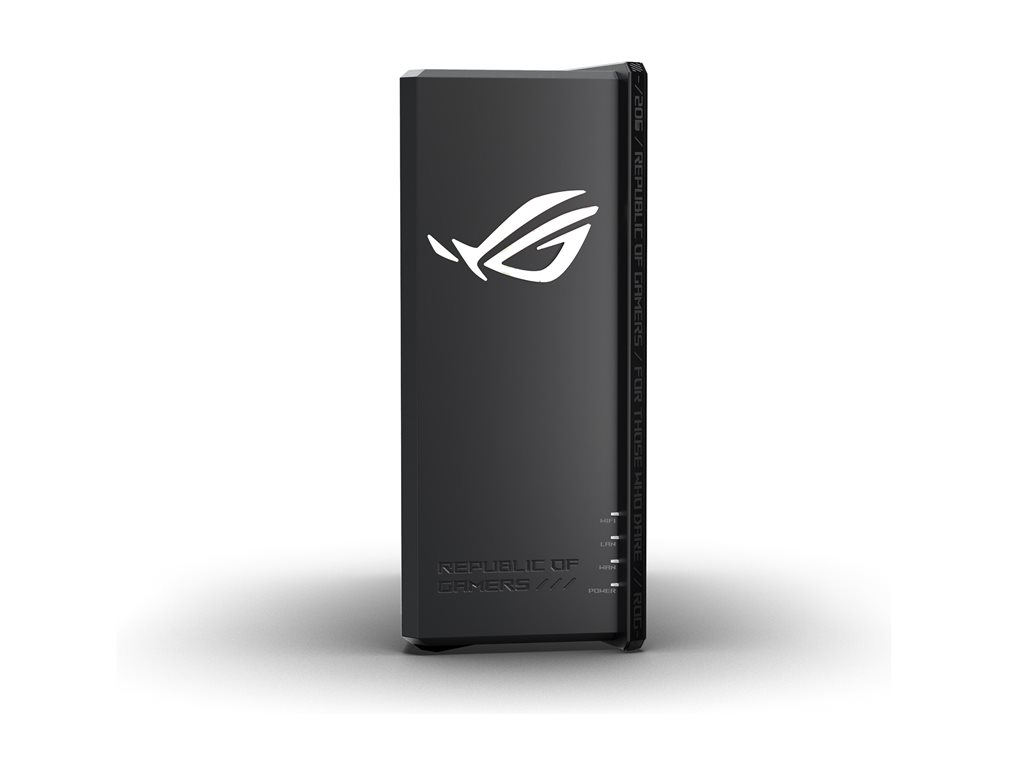

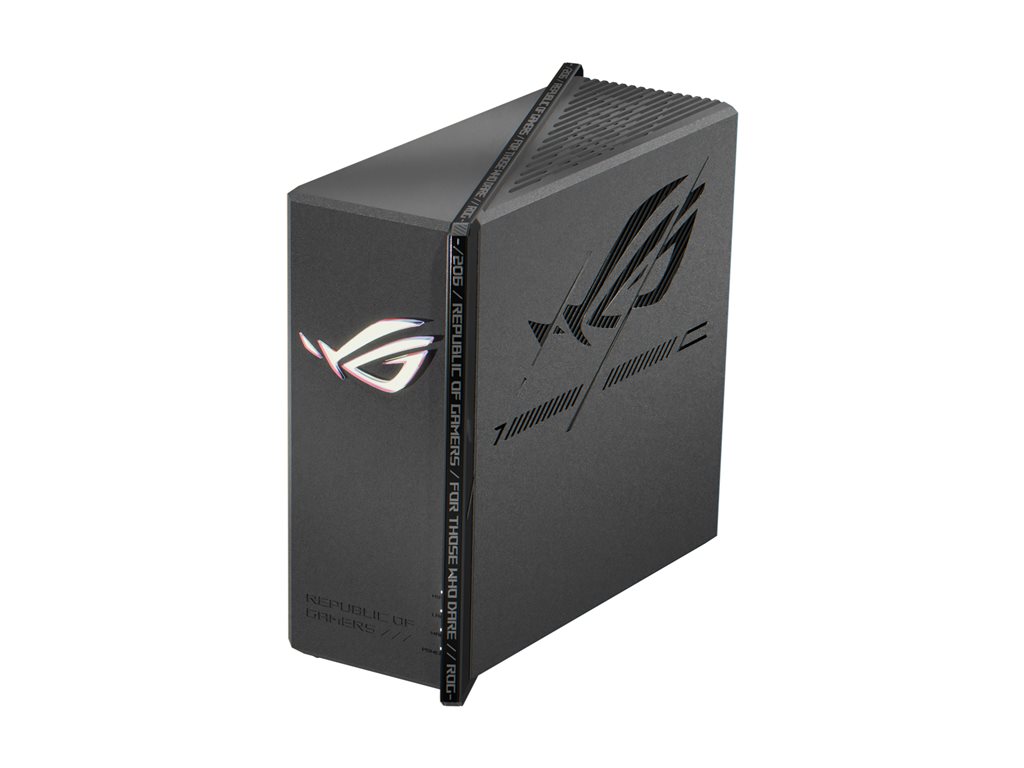

Wireless router 6-port switch - Wi-Fi 7, 1GbE, 2.5GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG STRIX GS-BE7200X - wireless router - Wi-Fi 7 - desktop |
| Device Type | Wireless router - 6-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz |
| Capacity | Guest networks: 5 ¦ Firewall network service filters: 32 ¦ Firewall keyword filters: 64 |
| Features | IPv6 support, IPv4 support, OFDMA, beamforming technology, 320MHz bandwidth support, AiMesh node mode, router mode, Access Point operational mode, repeater mode, WPS button, Game Boost, Mobile Game Mode, ROG First, Gaming Port, parental control, Let's Encrypt, DNS support, ASUS AiProtection Pro, IPSec VPN server, L2TP VPN client, OpenVPN client, OpenVPN server, PPTP VPN client, PPTP VPN server, VPN Fusion, Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, dual WAN connection, port forwarding, port triggering, DMZ support, DDNS, MU-MIMO technology, RADIUS support, Airtime Fairness, ASUSWRT, auto firmware update, login captcha, system log |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Power | AC 110-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 3.5 in x 8.9 in x 8.9 in |
| Weight | 28.6 oz |
| General | |
| Device Type | Wireless router - 6-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz |
| Capacity | Guest networks: 5 ¦ Firewall network service filters: 32 ¦ Firewall keyword filters: 64 |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA3-Enterprise |
| Wi-Fi Rating | BE7200 |
| Features | IPv6 support, IPv4 support, OFDMA, beamforming technology, 320MHz bandwidth support, AiMesh node mode, router mode, Access Point operational mode, repeater mode, WPS button, Game Boost, Mobile Game Mode, ROG First, Gaming Port, parental control, Let's Encrypt, DNS support, ASUS AiProtection Pro, IPSec VPN server, L2TP VPN client, OpenVPN client, OpenVPN server, PPTP VPN client, PPTP VPN server, VPN Fusion, Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, dual WAN connection, port forwarding, port triggering, DMZ support, DDNS, MU-MIMO technology, RADIUS support, Airtime Fairness, ASUSWRT, auto firmware update, login captcha, system log |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Processor | 1 x 1.8 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | WAN, LAN, Wi-Fi, power |
| Expansion / Connectivity | |
| Interfaces | LAN: 1 x 2.5GBase-T ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x ¦ WAN: 1 x 10GBase-T |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50 - 60 Hz) |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 8.9 in |
| Height | 8.9 in |
| Weight | 28.6 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Line Properties | |
| Line Coding Format | OFDMA, 4096 QAM |
