Router - WWAN 2.5GbE - 5G, 4G - wall-mountable, ceiling-mountable - with 1 year NetCloud Branch 5G Adapter Essentials Plan - for P/N: 170732-001, 170732-002, 170732-004
| Main Specifications | |
|---|---|

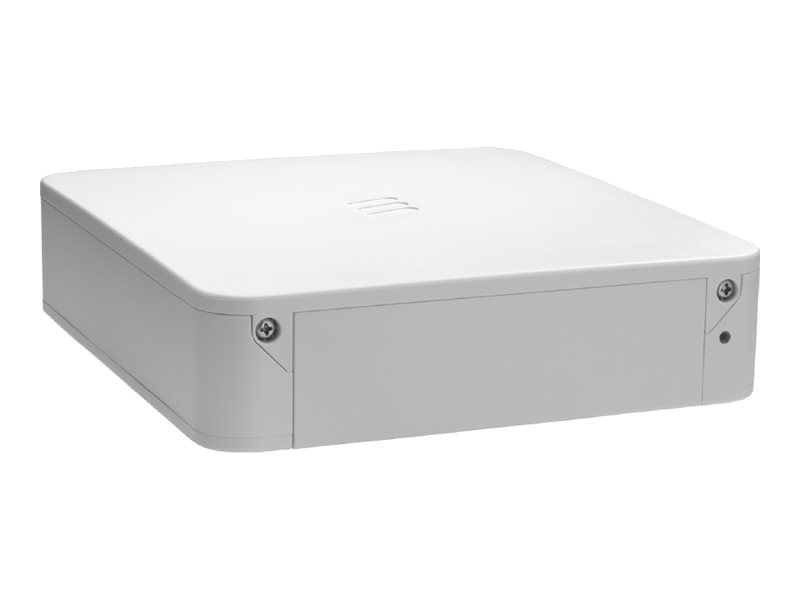

| Product Description | Cradlepoint W-Series 5G Wideband Adapter W2255-5GF-NA - router - WWAN - 5G, 4G - wall-mountable, ceiling-mountable |
| Device Type | Router - wireless cellular modem |
| Enclosure Type | Wall-mountable, ceiling-mountable |
| Bundled Services | 1 year NetCloud Branch 5G Adapter Essentials Plan |
| Cellular Protocol | 5G Sub-6 Ghz, 5G FR1, LTE Advanced Pro Cat 20 |
| Generation | 5G, 4G |
| Cellular Band | 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n2, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n29, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n70, 5G NR NSA n71, 5G NR NSA n77, 5G NR NSA n78, LTE B12, LTE B13, LTE B14, LTE B17, LTE B2, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B4, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71 |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Performance | IP pass-through mode throughput: 2.4 Gbps ¦ Standard NAT mode throughput: 2.4 Gbps ¦ Captive modem mode throughput: 2.4 Gbps ¦ Downlink bandwidth: 4.9 Gbps ¦ Uplink bandwidth: 900 Mbps |
| Features | Passive GNSS, lightning protection, 3GPP Release 17, eSIM support, 4x4 MIMO technology, 2x2 MIMO technology, SMS remote control |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 7.9 in x 8.3 in x 2.4 in |
| Weight | 2.91 lbs |
| Localization | United States, Canada |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: 170732-001, 170732-002, 170732-004 |
| General | |
| Device Type | Router |
| Bundled Services | 1 year NetCloud Branch 5G Adapter Essentials Plan |
| Enclosure Type | Wall-mountable, ceiling-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Performance | IP pass-through mode throughput: 2.4 Gbps ¦ Standard NAT mode throughput: 2.4 Gbps ¦ Captive modem mode throughput: 2.4 Gbps ¦ Downlink bandwidth: 4.9 Gbps ¦ Uplink bandwidth: 900 Mbps |
| Features | Passive GNSS, lightning protection, 3GPP Release 17, eSIM support, 4x4 MIMO technology, 2x2 MIMO technology, SMS remote control |
| Compliant Standards | IP67, IEC 60068-2-11, UL, cUL, CB Scheme, IEC 60950-22, EN 62368-1, RoHS 2011/65/EC, REACH 2006/1907, CP65, POPs, 40 CFR 751, 40 CFR 721, TSCA, FCC, IC, PTCRB, FCC Part 96, GCF |
| Built-in Devices | GPS / GLONASS / Galileo / Beidou / QZSS / SBAS |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 2.5GBase-T - RJ-45 ¦ USB 2.0: 1 x 24 pin USB-C ¦ WAN / LAN: 1 x 2.5GBase-T (PoE) - RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Mounting bracket, 4 screws, 4 x wall anchors, I/O gasket |
| MTBF | 448,311 hours |
| Localization | United States, Canada |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 2.6 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 100% |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | 5G Sub-6 Ghz, 5G FR1, LTE Advanced Pro Cat 20 |
| Generation | 5G, 4G |
| Cellular Band | 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n2, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n29, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n70, 5G NR NSA n71, 5G NR NSA n77, 5G NR NSA n78, LTE B12, LTE B13, LTE B14, LTE B17, LTE B2, LTE B25, LTE B26, LTE B29, LTE B30, LTE B38, LTE B4, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71 |
| Max Transfer Rate | 4.9 Gbps |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 8.3 in |
| Height | 2.4 in |
| Weight | 2.91 lbs |
| Antenna | |
| Antenna | External integrated and internal |
| Antenna Qty | 8 |
| Configuration Details | 4 internal 4G/5G antennas, 4 internal Wi-Fi antennas |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Compatibility Information | |
| Designed For | P/N: 170732-001, 170732-002, 170732-004 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 20 |
