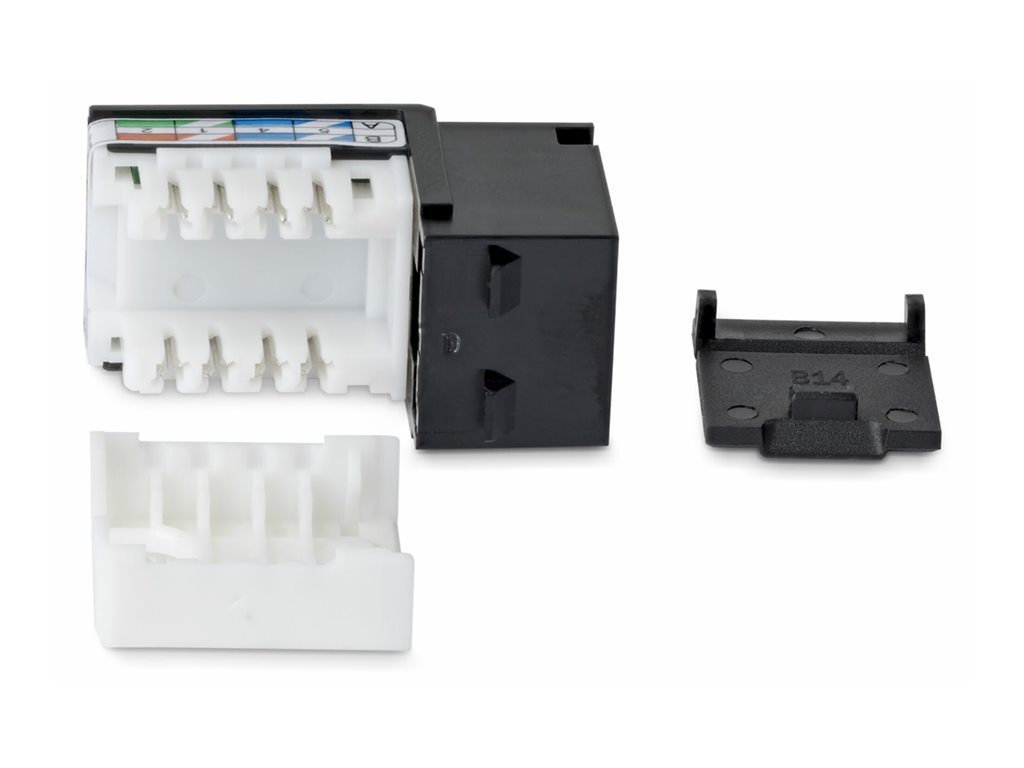

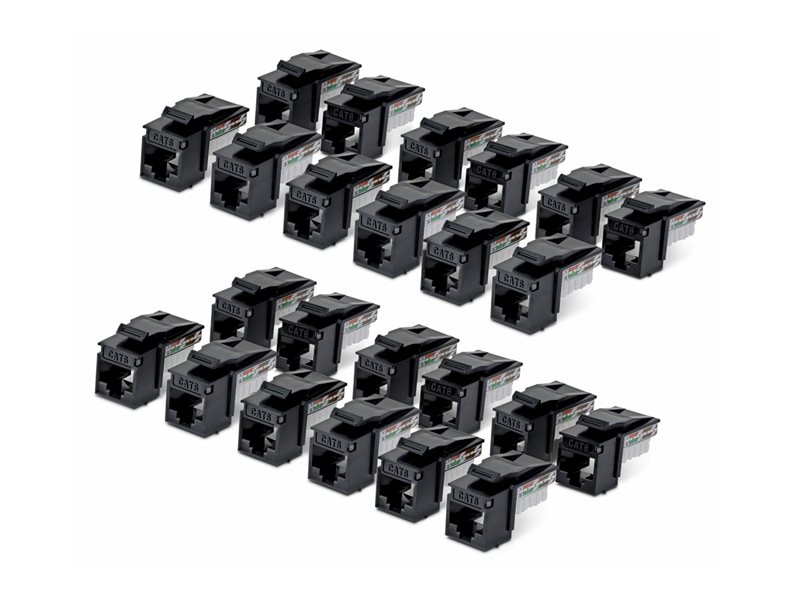

Keystone jack - 90°, 110 punch down - CAT 6 - UTP - RJ-45 - black - TAA Compliant (pack of 24)
| Main Specifications | |
|---|---|
| Product Description | Startech keystone jack - 90°, 110 punch down - TAA Compliant |
| Product Type | Keystone jack - CAT 6 - RJ-45 - 90°, 110 punch down |
| Packaged Quantity | 24 (specifications are for single item) |
| Dimensions (WxDxH) | 0.7 in x 1.2 in x 0.8 in |
| Weight | 0.25 oz |
| Product Material | ABS polycarbonate |
| Color | Black |
| Port Qty | 1 port |
| Wiring Scheme | T568A/B |
| Compliant Standards | ANSI/TIA-568-C.2, IEEE 802.3bt Type 4, IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Packaged Quantity | 24 (specifications are for single item) |
| Product Type | Keystone jack - CAT 6 - 90°, 110 punch down |
| Product Material | ABS polycarbonate |
| Width | 0.7 in |
| Depth | 1.2 in |
| Height | 0.8 in |
| Weight | 0.25 oz |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Corrosion protection |
| Compliant Standards | ANSI/TIA-568-C.2, IEEE 802.3bt Type 4, IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Termination Type | 110 type termination, punchdown |
| Technology | Unshielded twisted pair (UTP) |
| Wiring Scheme | T568A/B |
| Features | 90° punch down termination, up to 100W PoE support, up to 10 Gbps, gold-plated contacts, keystone type, vertical termination |
| Connector Provided | 1 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.5 in |
| Shipping Depth | 6.2 in |
| Shipping Height | 1.7 in |
| Shipping Weight | 7.16 oz |
