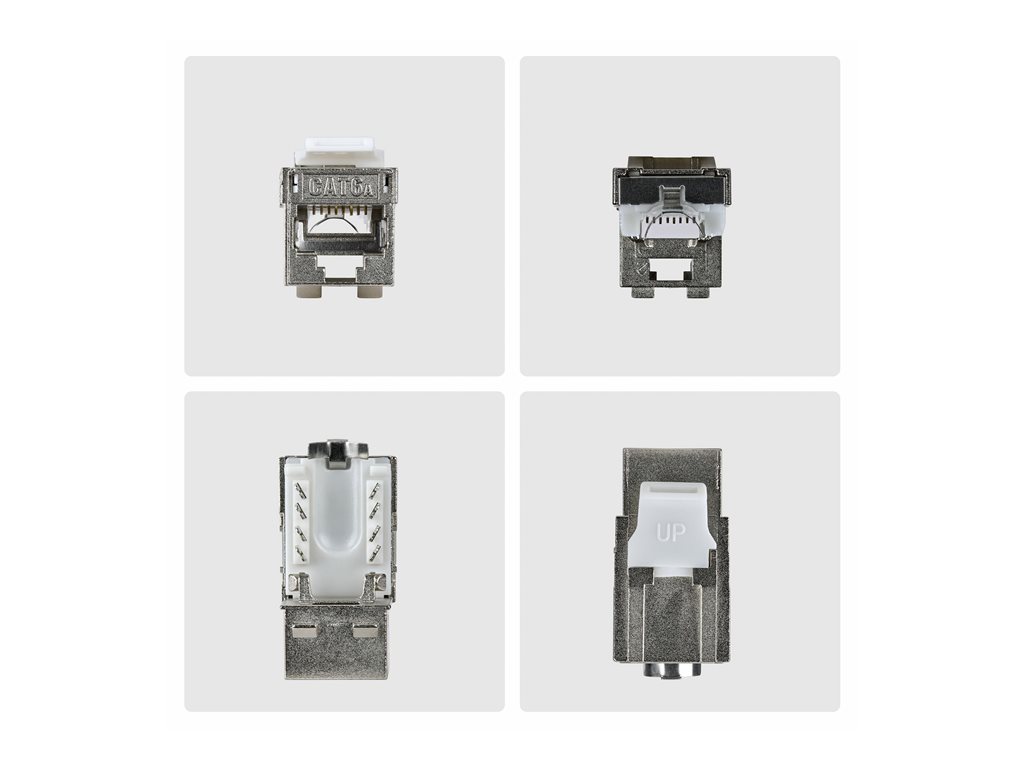

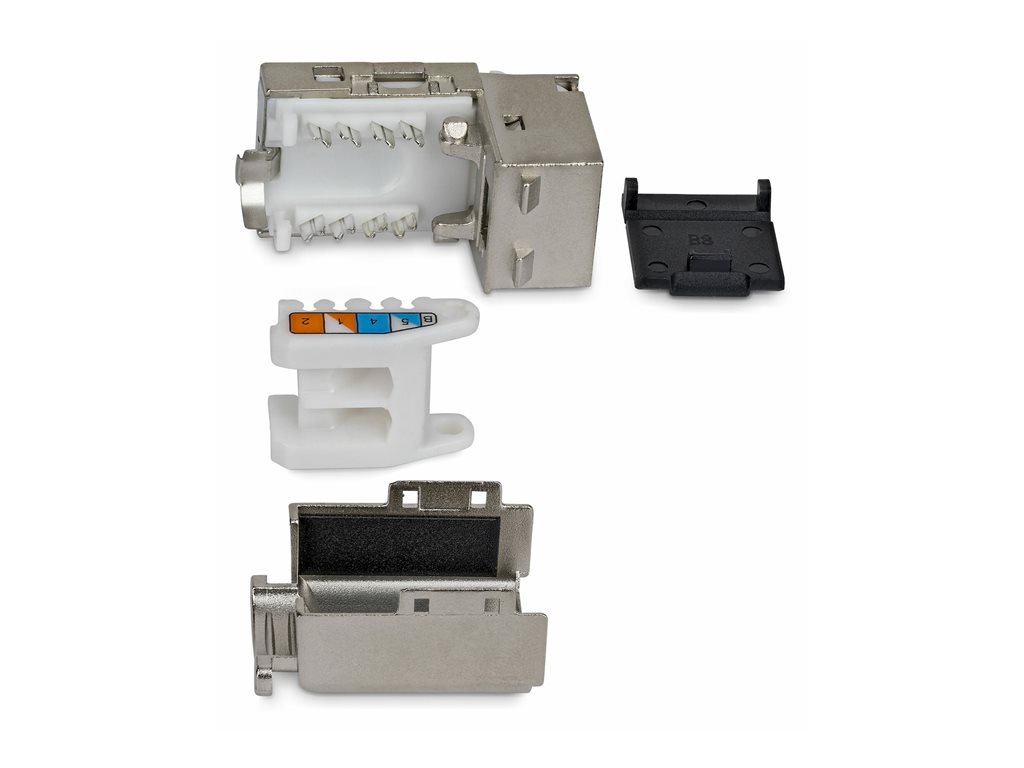

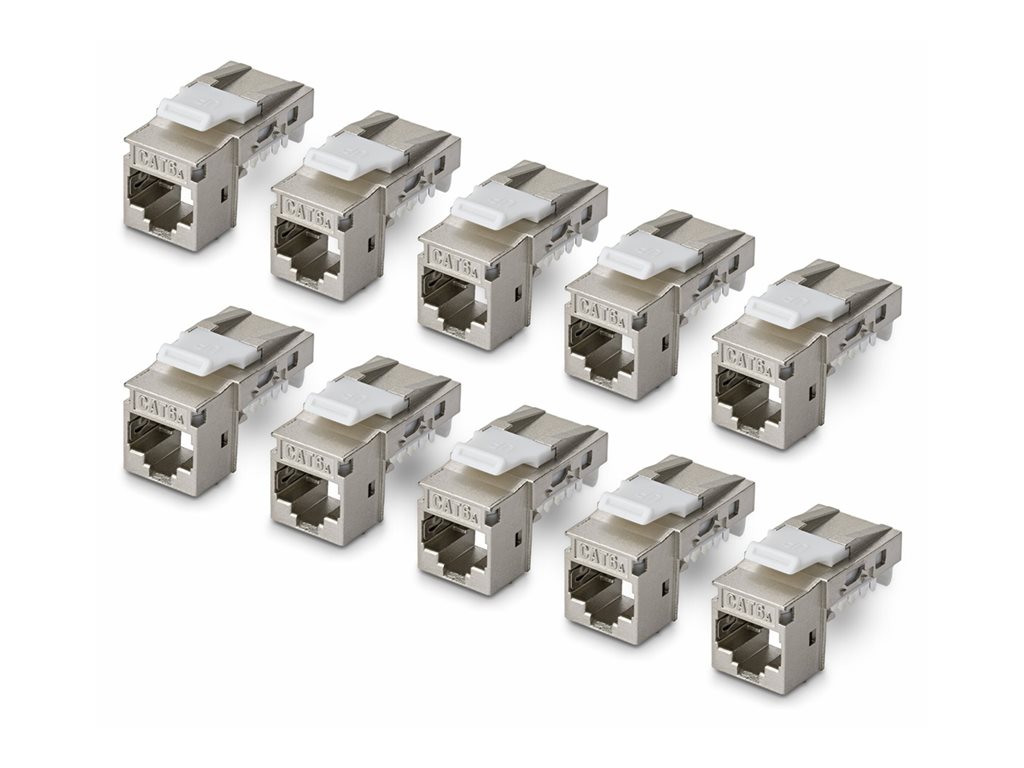

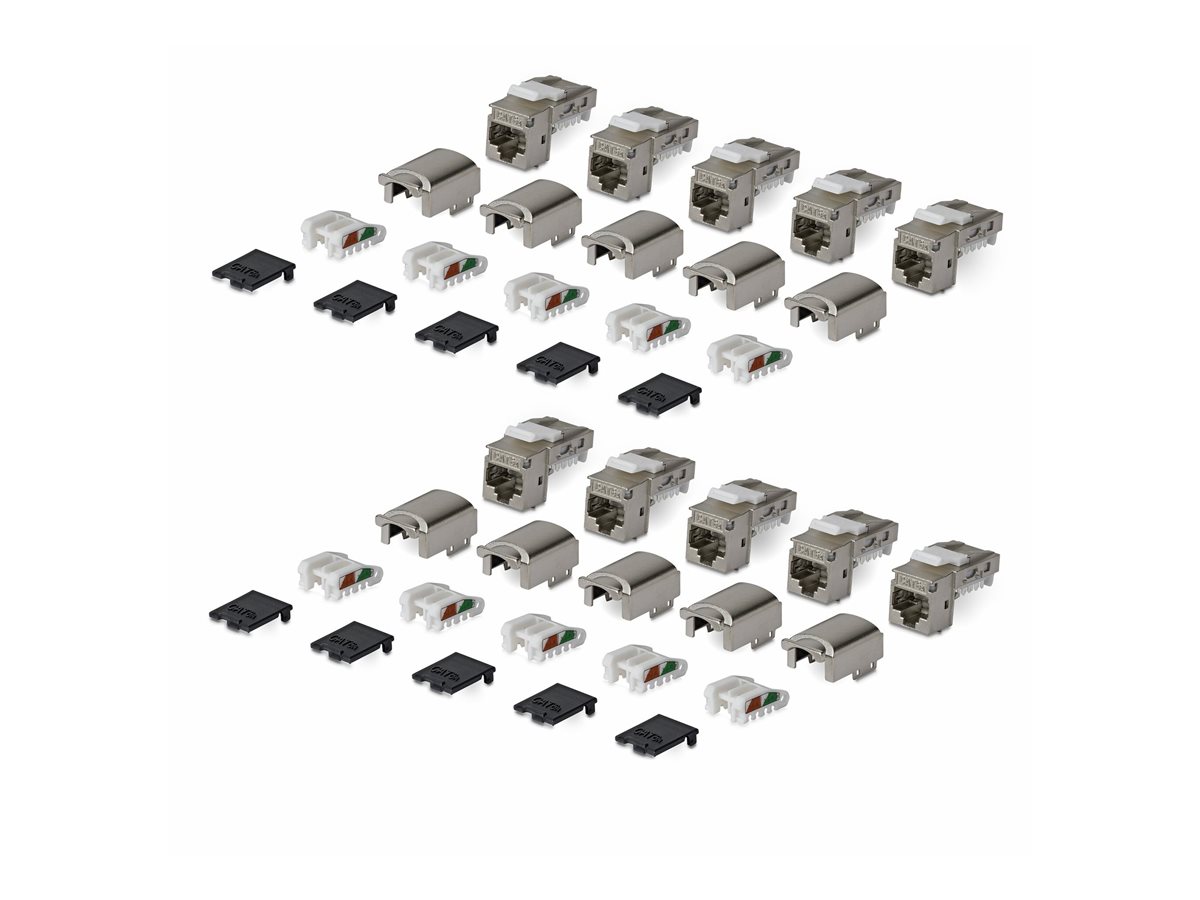

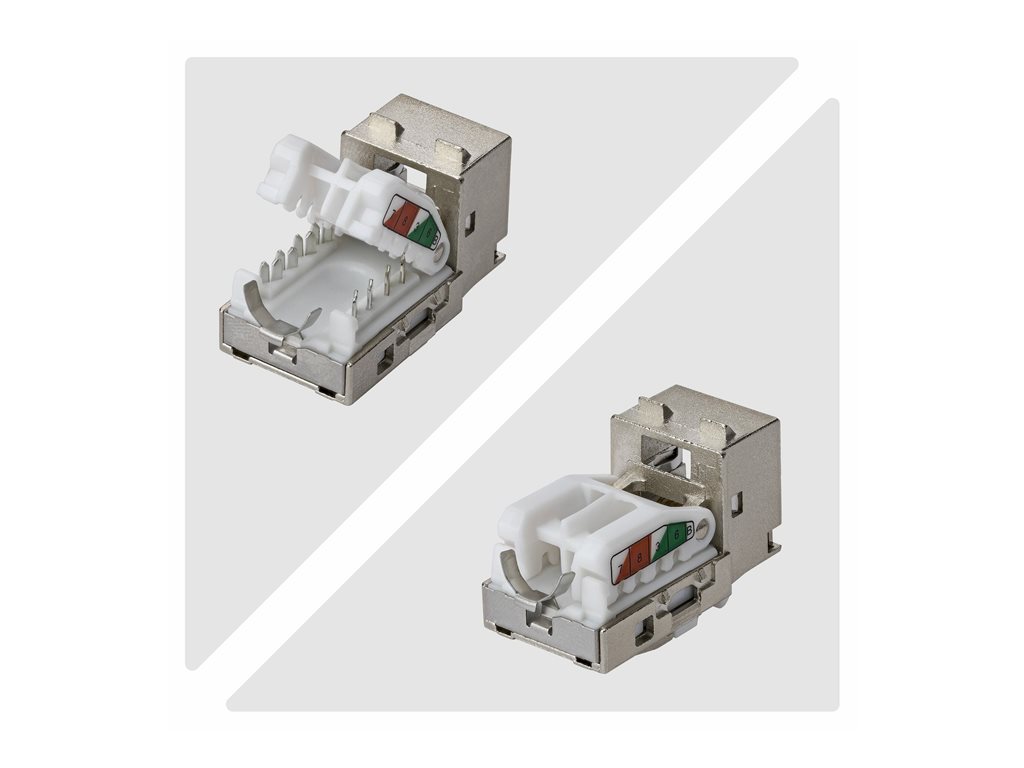

Keystone jack - shielded, 90°, toolless - CAT 6a - STP - RJ-45 - silver - TAA Compliant (pack of 10)
| Main Specifications | |
|---|---|
| Product Description | Startech keystone jack - shielded, 90°, toolless - TAA Compliant |
| Product Type | Keystone jack - CAT 6a - RJ-45 - shielded, 90°, toolless |
| Packaged Quantity | 10 (specifications are for single item) |
| Dimensions (WxDxH) | 0.7 in x 1.4 in x 0.9 in |
| Weight | 0.25 oz |
| Product Material | Nickel plated zinc alloy |
| Color | Silver |
| Port Qty | 1 port |
| Wiring Scheme | T568A/B |
| Compliant Standards | ANSI/TIA-568-C.2, IEEE 802.3bt Type 4, IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 10 (specifications are for single item) |
| Product Type | Keystone jack - CAT 6a - shielded, 90°, toolless |
| Product Material | Nickel plated zinc alloy |
| Width | 0.7 in |
| Depth | 1.4 in |
| Height | 0.9 in |
| Weight | 0.25 oz |
| Enclosure Color | Silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | EMI shielding |
| Compliant Standards | ANSI/TIA-568-C.2, IEEE 802.3bt Type 4, IEEE 802.3, IEEE 802.3ae, IEEE 802.3bz |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Technology | Shielded twisted pair (STP) |
| Wiring Scheme | T568A/B |
| Features | Toolless, 90° angled, up to 10 Gbps, up to 100W PoE support, vertical termination, gold-plated contacts |
| Connector Provided | 1 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7 in |
| Shipping Depth | 3.3 in |
| Shipping Height | 1.7 in |
| Shipping Weight | 7.83 oz |
