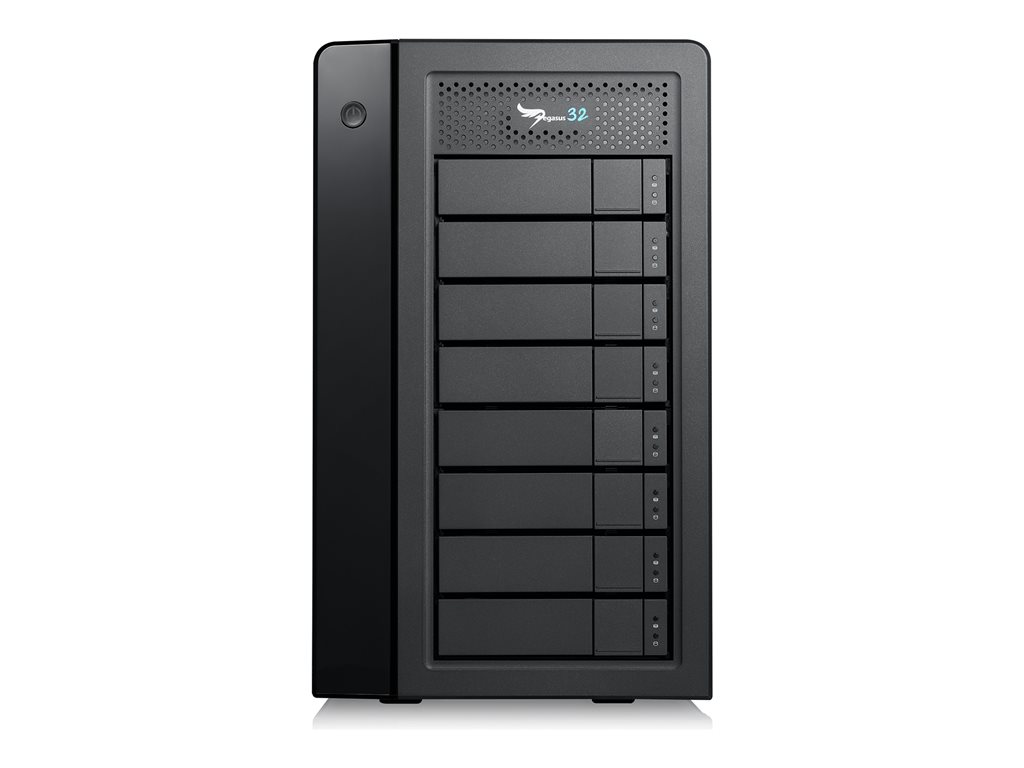

Hard drive array - 176 TB - 8 bays (SATA-600) - HDD 22 TB x 8 - Thunderbolt 3, USB 3.2 Gen 2 (external)
| Main Specifications | |
|---|---|
| Product Description | Promise Pegasus32 R8 - hard drive array |
| Device Type | Hard drive array |
| Total Array Capacity | 176 TB |
| Interface | Thunderbolt 3, USB 3.2 Gen 2 |
| Installed Devices / Modules Qty | 8 (installed) / 8 (max) |
| Supported Drives | SATA-600 |
| Built-in Devices | LED panel |
| Storage Controller | RAID (SATA 6Gb/s) - RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hard Drive | 8 x 22 TB HDD SATA 6Gb/s - hot-swap |
| OS Required | Windows 10 64-bit Edition, Apple macOS 10.14 or later |
| Power | AC 100 - 230 V 50 - 60 Hz |
| Dimensions (WxDxH) | 7.4 in x 9.6 in x 12.2 in |
| Weight | 24.25 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces | 2 x Thunderbolt 3 / USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x DisplayPort - 20 pin DisplayPort |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Kensington security slot, built-in cooling fan, daisy chaining support |
| Cables Included | 1 x Thunderbolt 3 / USB-C cable - 2.3 ft |
| Software Included | Drivers & Utilities |
| Compliant Standards | TUV, VCCI, BSMI, ICES-003 Class B, FCC Part 15 B, cTUVus, RCM, MSIP, RoHS 2011/65/EU, NMB-3 Class B, BIS, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, SPRING, DisplayPort 1.4 |
| Processor | |
| CPU | 1 x PMC-Sierra 8067 |
| RAM | |
| Installed Size | 1 GB |
| Storage | |
| Total Array Capacity | 176 TB |
| HDD Array External Interface | Thunderbolt 3, USB 3.2 Gen 2 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 230 V 50 - 60 Hz |
| Power Provided | 250 watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| System Requirements | |
| OS Required | Windows 10 64-bit Edition, Apple macOS 10.14 or later |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 8 x 22 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 9.6 in |
| Height | 12.2 in |
| Weight | 24.25 lbs |
| Chassis | |
| Built-in Devices | LED panel |
| Installed Devices / Modules Qty | 8 |
| Supported Devices / Modules Qty | 8 |
| Supported Drives | SATA-600 |
