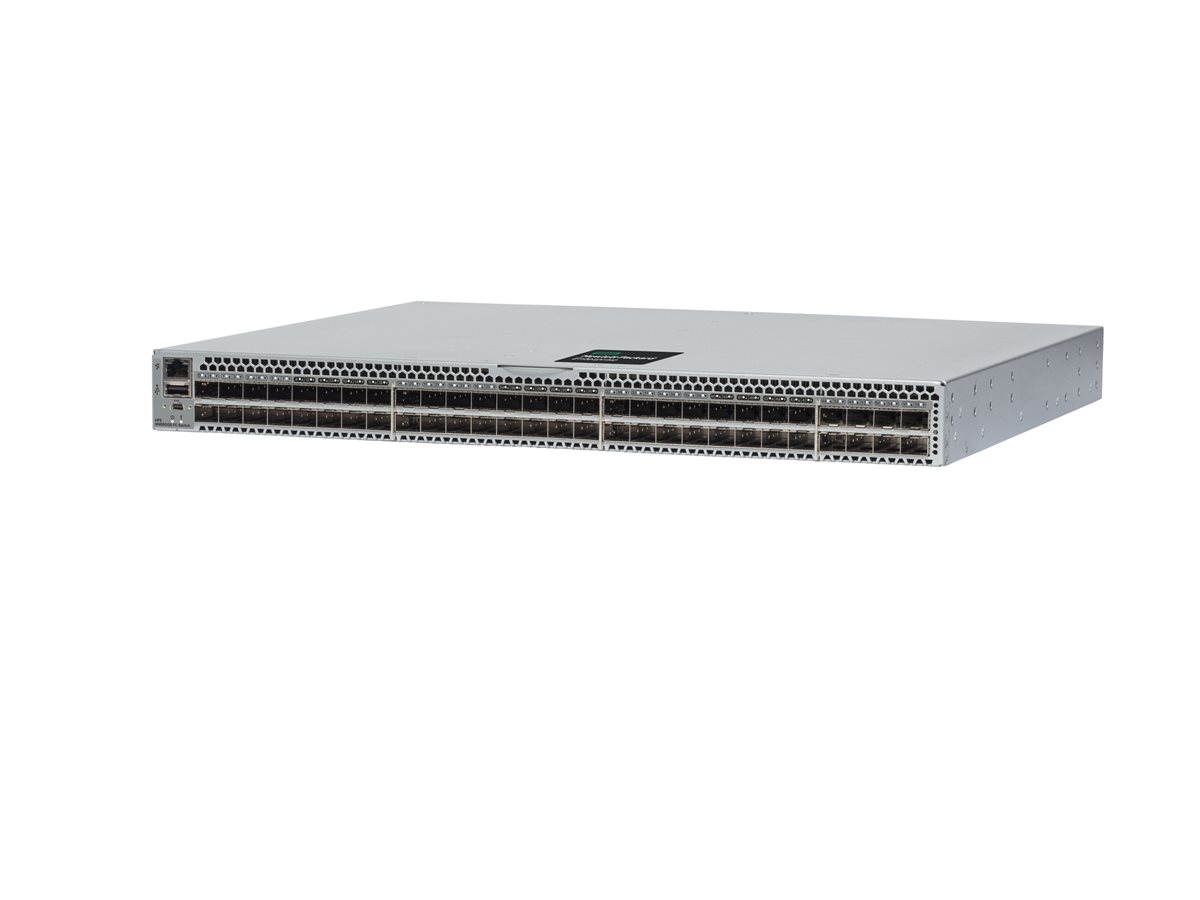

B-Series - switch - supports 128Gb and 64Gb FC transceivers - managed - 24 x 128Gb Fibre Channel SFP112 - front to back airflow - rack-mountable - with 24x 128 Gbps SW SFP112 transceiver
| Main Specifications | |
|---|---|
| Product Description | HPE SN6800B 128Gb 56/24 24-port 128Gb Short Wave SFP112 Non Port Side Exhaust Fibre Channel - B-Series - switch - supports 128Gb and 64Gb FC transceivers - 24 ports - managed - rack-mountable - with 24x 128 Gbps SW SFP112 transceiver |
| Device Type | Switch - 24 ports - managed - with 24x 128 Gbps SW SFP112 transceiver |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 24 x 128Gb Fibre Channel SFP112 |
| Performance | Aggregate bandwidth: 7.168 Tbps |
| Features | Self-healing technology |
| System Requirements | Fabric OS 10.x |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 24 ports - managed - with 24x 128 Gbps SW SFP112 transceiver |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 24 x 128Gb Fibre Channel SFP112 |
| Performance | Aggregate bandwidth: 7.168 Tbps |
| Features | Self-healing technology |
| Expansion / Connectivity | |
| Interfaces | 24 x 128Gb Fibre Channel SFP112 short wave ¦ 32 x 128Gb Fibre Channel SFP112 Ports on Demand ¦ 1 x console RJ-45 management ¦ 1 x USB Type A ¦ 1 x mini-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Software / System Requirements | |
| OS Required | Fabric OS 10.x |
