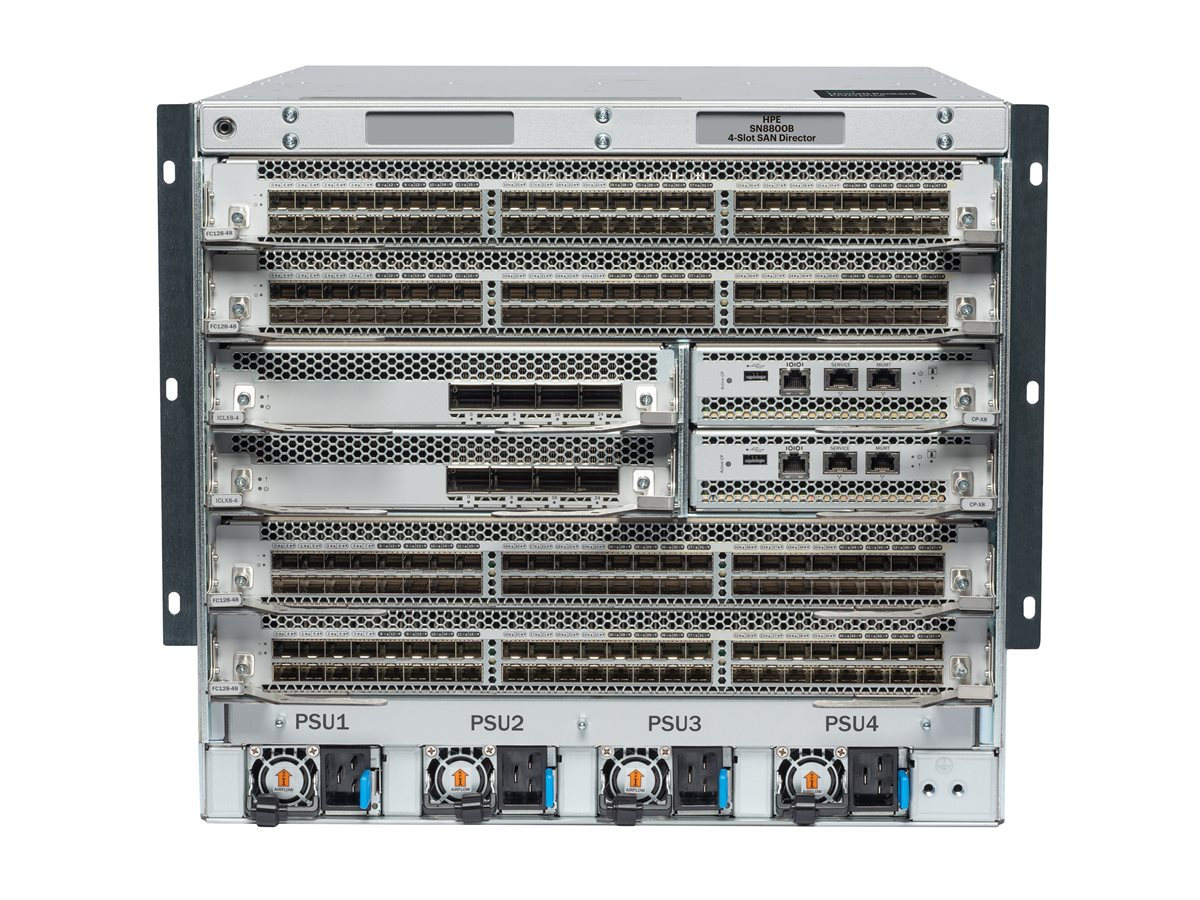

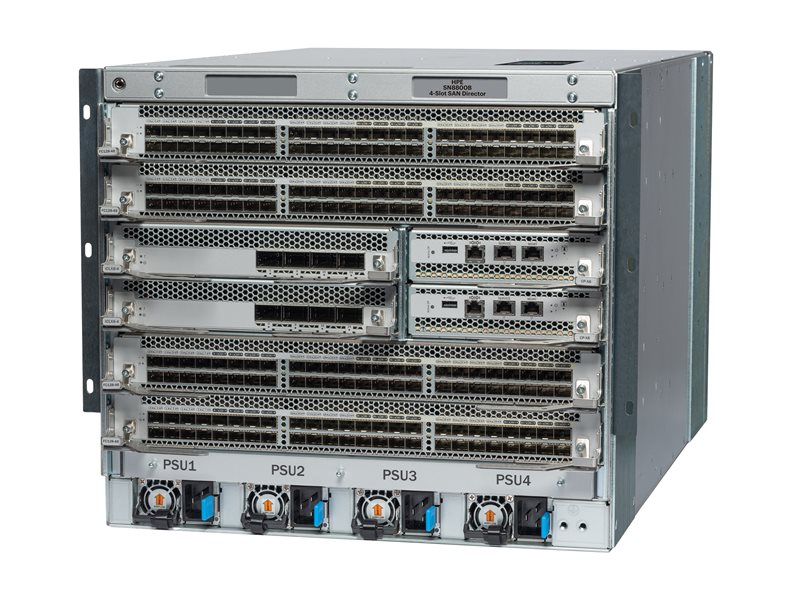

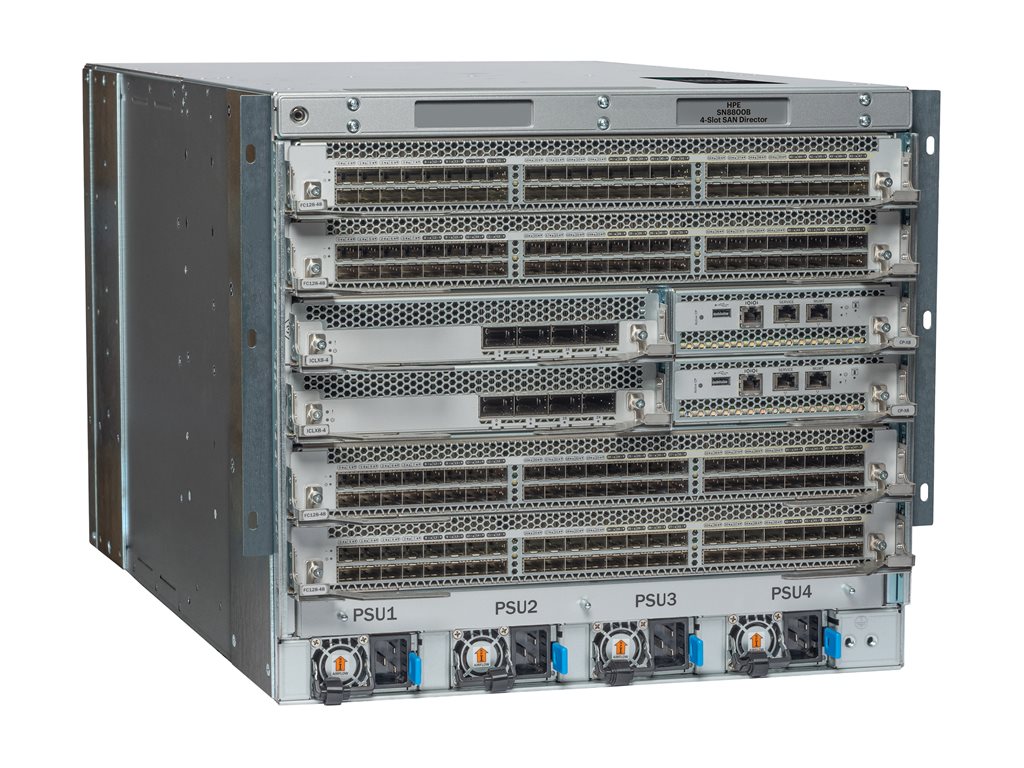

B-Series - switch - 128 Gb 192-port capable - managed - rack-mountable - with HPE 3 Years Tech Care Basic Service
| Main Specifications | |
|---|---|
| Product Description | HPE SN8800B 4-Slot SAN Director - B-Series - switch - 128 Gb 192-port capable - managed - rack-mountable |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 9U |
| Bundled Services | HPE 3 Years Tech Care Basic Service |
| Subtype | Fibre Channel |
| Performance | Aggregate bandwidth: 31 TBps |
| Features | Brocade UltraScale ICL technology, modular design, ICL, quantum-resistant encryption, integrity validation, anti-tampering protection, SAN FI, End-to-End VM visibility, Adaptive Traffic Optimizer, automated anomaly correction, enhanced data integrity, FSPF, automatic control processor failover, ISL Trunking, Hardware Enforced Zoning, frame filtering, Extended Fabrics support, Adaptive Networking, post-quantum cryptography (PQC) support |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 27 in x 15.6 in |
| Weight | 86.42 lbs |
| System Requirements | Fabric OS 10.x |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - managed |
| Bundled Services | HPE 3 Years Tech Care Basic Service |
| Enclosure Type | Rack-mountable 9U |
| Subtype | Fibre Channel |
| Performance | Aggregate bandwidth: 31 TBps |
| Encryption Algorithm | 256-bit AES-GCM |
| Features | Brocade UltraScale ICL technology, modular design, ICL, quantum-resistant encryption, integrity validation, anti-tampering protection, SAN FI, End-to-End VM visibility, Adaptive Traffic Optimizer, automated anomaly correction, enhanced data integrity, FSPF, automatic control processor failover, ISL Trunking, Hardware Enforced Zoning, frame filtering, Extended Fabrics support, Adaptive Networking, post-quantum cryptography (PQC) support |
| Expansion / Connectivity | |
| Expansion Slots | 8 (total) / 6 (free) x expansion slot |
| Installed Modules Qty (Max) | 2 (installed) / 8 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | Rack rails, 2 control processors, 2 x 128 Gb core blades, cable comb |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 4 |
| Power Redundancy | Optional |
| Software / System Requirements | |
| Software Included | HPE Zoning, WEB TOOLS, HPE Fabric Vision Enhanced Group Management, Adaptive Networking, ISL Trunking, HPE Extended Fabrics, HPE Integrated Routing, HPE FICON CUP |
| OS Required | Fabric OS 10.x |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 93% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 93% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 27 in |
| Height | 15.6 in |
| Weight | 86.42 lbs |
