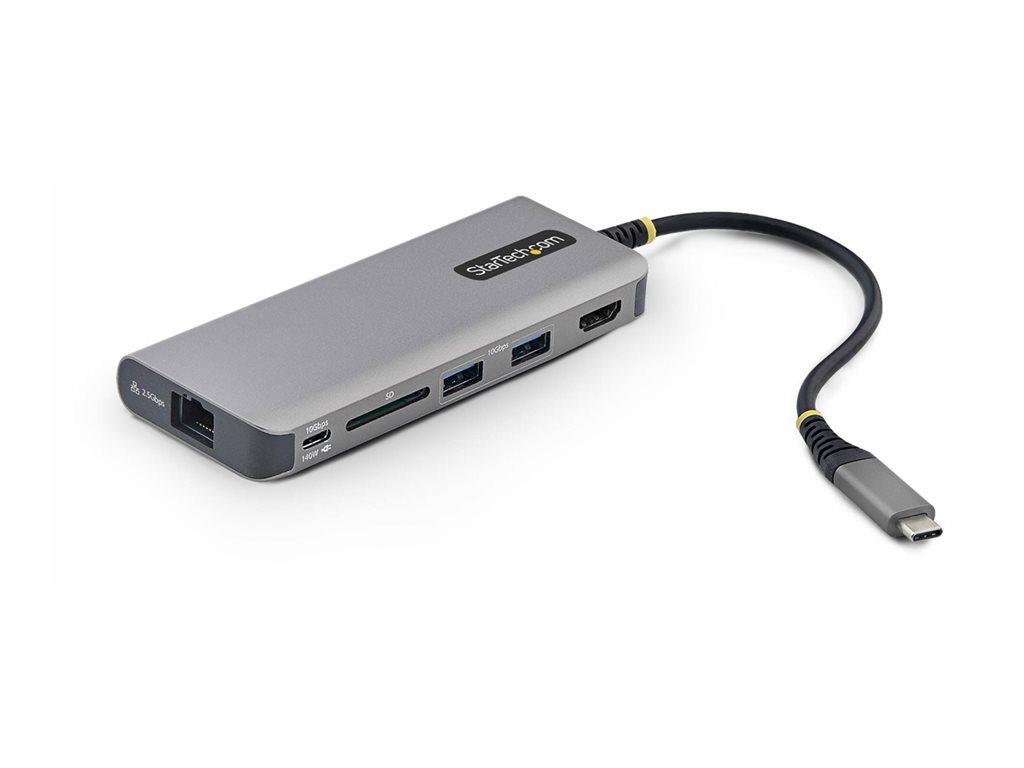

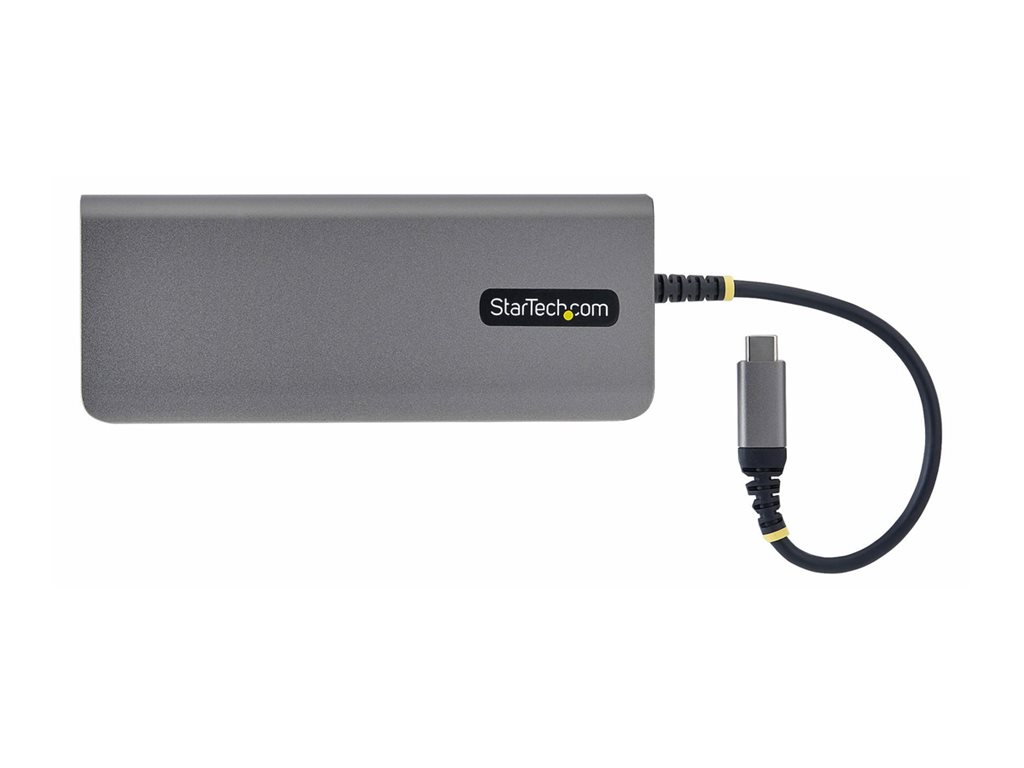

Docking station - for laptop - USB-C - HDMI - 2.5GbE, 1GbE - 140 watt
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - USB-C - HDMI - 2.5GbE, 1GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | USB-C |
| Video Interfaces | HDMI |
| Dimensions (WxDxH) | 2 in x 4.9 in x 0.6 in |
| Weight | 3.53 oz |
| Color | Space gray |
| Networking | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Power | USB 20 watt 140 watt Power Provided (DC 5 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 2 in |
| Depth | 4.9 in |
| Height | 0.6 in |
| Weight | 3.53 oz |
| Enclosure Color | Space gray |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SDHC/SDXC/SD Memory Card |
| Interfaces | 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (140 W) - 24 pin USB-C ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x network - 2.5GBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Input Device | SD card reader |
| Cables Included | 1 x USB-C 3.2 cable - integrated - 4.7 in |
| Features | Up to 140W power delivery, 4K60Hz support, up to 10Gbps data transfer, USB port with passthrough, 75% post-consumer recycled plastic, DisplayPort Alt Mode, wake on LAN, UASP support, Preboot Execution Environment (PXE) support, full duplex support, aluminum/plastic enclosure, bus powered |
| Compliant Standards | USB Power Delivery 3.2, FSC, RoHS, WEEE, FCC |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 2 |
| Power | |
| Power Device | USB |
| Power Consumption (Max) | 20 watt |
| Power Provided | 140 watt |
| Voltage Provided | DC 5 V |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz |
| System Requirements | |
| OS Required | Apple macOS 13.0, Apple iOS, Apple iPadOS, Apple macOS 14, Apple macOS 15, Apple macOS Tahoe 26, Linux, Microsoft Windows 10 / 11, Ubuntu 20.04 or later, Windows 11 (on ARM) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.5 in |
| Shipping Depth | 2.2 in |
| Shipping Height | 0.7 in |
| Shipping Weight | 4.97 oz |
