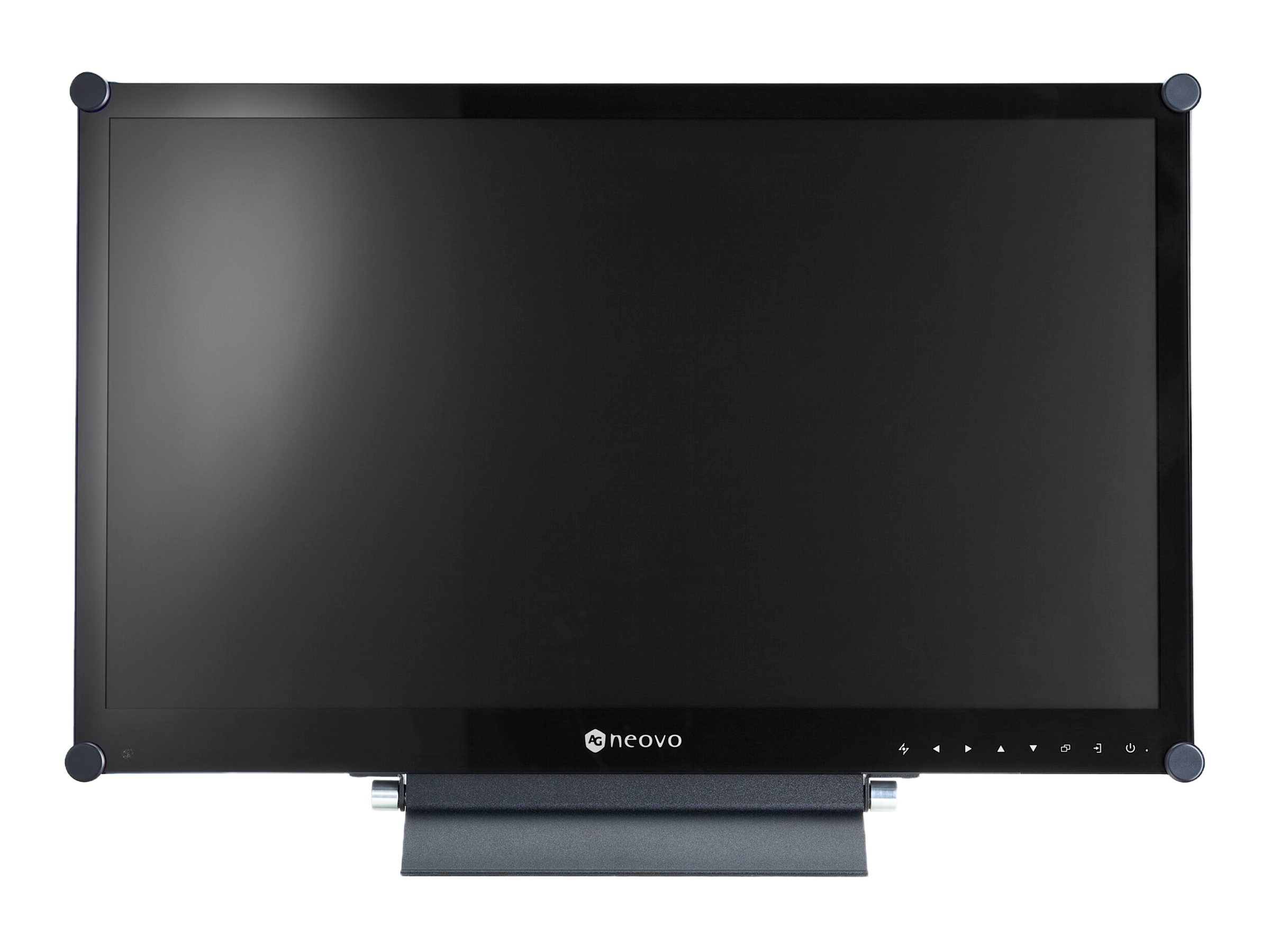

LED monitor - 22" (21.5" viewable) - desktop / wall - 1920 x 1080 Full HD (1080p) - IPS - 250 cd/m² - 20000000:1 - 5 ms - DVI-D, VGA, S-Video, HDMI, DisplayPort, 2 x BNC (composite) - speakers
| Main Specifications | |
|---|---|
| Product Description | AG Neovo RX-2202 - LED monitor - Full HD (1080p) - 22" |
| Device Type | LED-backlit LCD monitor - 22" |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1908027 |
| Energy Class | Class E |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Pixel Pitch | 0.248 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20000000:1 / 20000000:1 (dynamic) |
| Response Time | 5 ms |
| Color Support | 16.7 million colors |
| Input Connectors | DVI-D, VGA, S-Video, HDMI, DisplayPort, 2 x BNC (composite) |
| Display Position Adjustments | Tilt |
| Screen Coating | Anti-glare, 3H Hard Coating, Haze 25% |
| Voltage | 12 V |
| Dimensions (WxDxH) - with base | 20.2 in x 6.1 in x 14.5 in |
| Weight | 15.21 lbs |
| Compliant Standards | BSMI, FCC, RoHS, KCC, WEEE, REACH, LVD, EAC, RCM, IK07, IEC/EN 61000-6-1, EN 50130-4, UL/cUL, ICES-003 issue 7, IEC/EN 61000-6-3 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1908027 |
| Energy Class | Class E |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Pixel Pitch | 0.248 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 20000000:1 / 20000000:1 (dynamic) |
| Color Support | 16.7 million colors |
| Response Time | 5 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 24 - 83 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | Anti-glare, 3H Hard Coating, Haze 25% |
| Backlight Technology | LED backlight |
| Features | Picture in picture, picture by picture, NeoV Optical Glass, Anti-Burn-in technology, Super Resolution Technology, EcoSmart, 24/7 operating mode, metal casing, dust resistant, water resistant, CCTV picture mode, Night Mode |
| Dimensions (WxDxH) | 20.2 in x 6.1 in x 14.5 in - with base |
| Weight | 15.21 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), metal housing, IK10 impact rating, front IP65 protection |
| Included Accessories | Power adapter, power cable, audio cable |
| Cables Included | 1 x power cable ¦ 1 x audio cable ¦ 1 x VGA cable ¦ 1 x power adapter |
| Compliant Standards | BSMI, FCC, RoHS, KCC, WEEE, REACH, LVD, EAC, RCM, IK07, IEC/EN 61000-6-1, EN 50130-4, UL/cUL, ICES-003 issue 7, IEC/EN 61000-6-3 |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | 12 V |
| Power Consumption SDR (On mode) | 15.6 kWh/1000h |
| Power Consumption (Typical) | 16 watt |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0.3 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 watt |
| Connectivity | |
| Interfaces | DisplayPort ¦ HDMI ¦ DVI-D ¦ VGA ¦ 2 x composite video / audio (BNC x 2) ¦ S-video (4-Pin mini DIN) |
| Dimensions & Weight | |
| Dimensions & Weight Details | Without base - width: 20.2 in - depth: 2.2 in - height: 12.8 in - weight: 14.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24.2 in |
| Shipping Depth | 8 in |
| Shipping Height | 18.8 in |
| Shipping Weight | 19.84 lbs |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | 0/+17 |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
