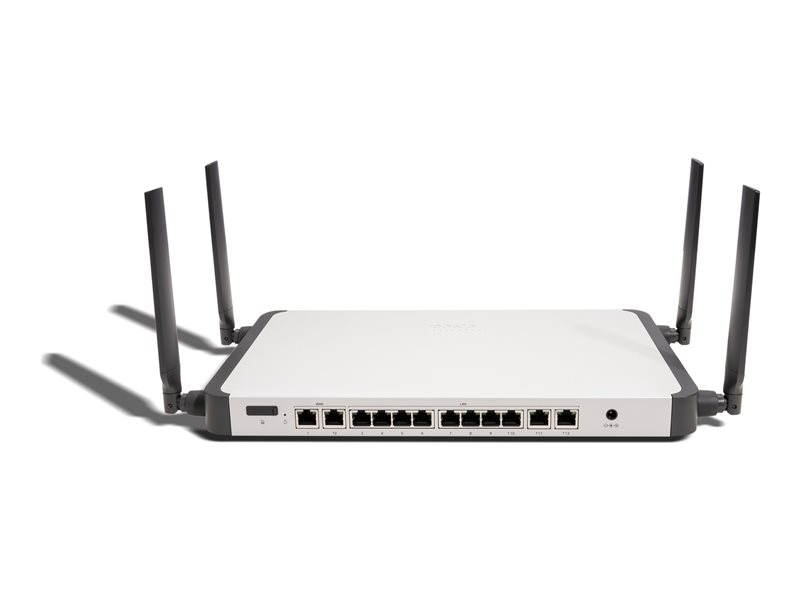

Router 10-port switch - 1GbE - WAN ports: 2 - Wi-Fi 6 - 5G
| Main Specifications | |
|---|---|
| Product Description | Cisco - router - Wi-Fi 6 - 5G - desktop |
| Device Type | Router - 10-port switch (integrated) |
| Enclosure Type | Desktop |
| Cellular Protocol | 5G, LTE CAT20 |
| Generation | 5G |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate | 1.5 Gbps |
| Performance | Stateful firewall throughput: 2 Gbps ¦ VPN throughput: 1200 Mbps |
| Capacity | Recommended number of devices: up to 200 |
| Features | 2x2:2 MU-MIMO technology, AAA, TWT, BSS Coloring, MRC, packet aggregation A-MPDU, packet aggregation A-MSDU, DFS, CSD, beamforming technology, fanless, QoS, reset button, security slot (Kensington security lock compatible), SMS, MIP, remote firmware upgrade, TDD, FirstNet ready |
| Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dimensions (WxDxH) | 13.7 in x 8 in x 1.3 in |
| Weight | 3.93 lbs |
| General | |
| Device Type | Router - 10-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate | 1.5 Gbps |
| Performance | Stateful firewall throughput: 2 Gbps ¦ VPN throughput: 1200 Mbps |
| Capacity | Recommended number of devices: up to 200 |
| Features | 2x2:2 MU-MIMO technology, AAA, TWT, BSS Coloring, MRC, packet aggregation A-MPDU, packet aggregation A-MSDU, DFS, CSD, beamforming technology, fanless, QoS, reset button, security slot (Kensington security lock compatible), SMS, MIP, remote firmware upgrade, TDD, FirstNet ready |
| Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, PTCRB, GCF, FCC |
| Expansion / Connectivity | |
| Interfaces | LAN: 10 x 1000Base-T - RJ-45 ¦ WAN: 2 x 1000Base-T - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Nano-SIM |
| Power | |
| Power Device | Internal power supply - 250 watt |
| Power Consumption Operational | 68 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Communications | |
| Cellular Protocol | 5G, LTE CAT20 |
| Generation | 5G |
| Dimensions & Weight | |
| Width | 13.7 in |
| Depth | 8 in |
| Height | 1.3 in |
| Weight | 3.93 lbs |
| Antenna | |
| Antenna | External and internal |
| Antenna Qty | 6 |
