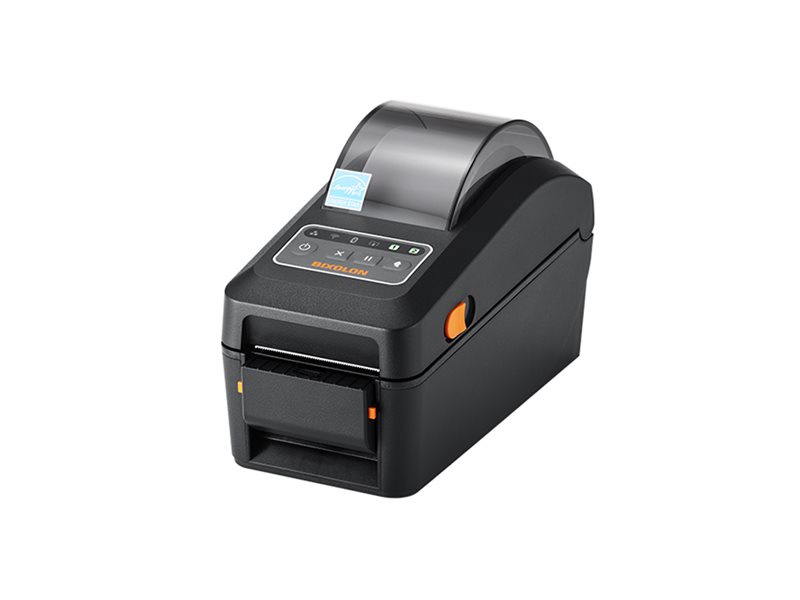

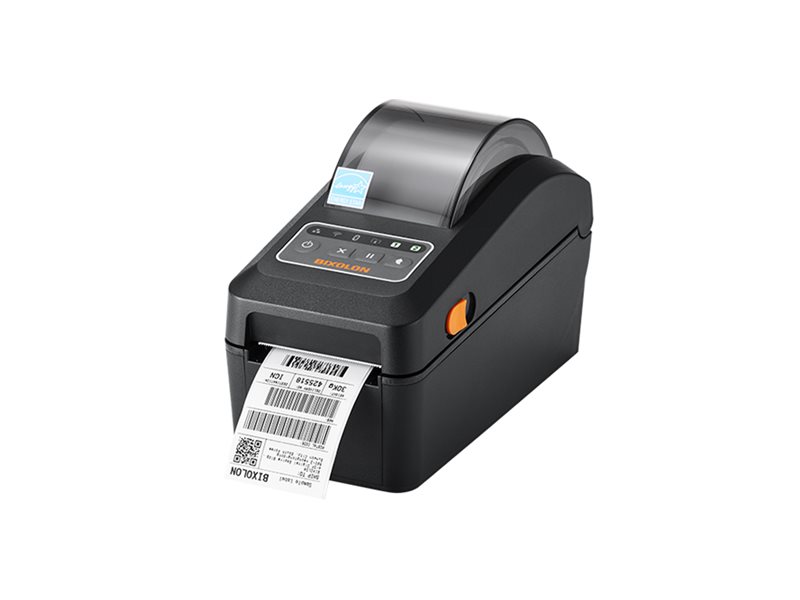

Label printer - direct thermal - Roll (2.35 in) - 203 dpi - up to 479.5 inch/min - USB, USB host, LAN - black
| Main Specifications | |
|---|---|
| Product Description | BIXOLON XD7-23d - label printer - B/W - direct thermal |
| Printer Type | Label printer - direct thermal - B/W |
| Weight | 2.45 lbs |
| Max Media Size | Roll (2.35 in) |
| Min Media Size (Custom) | 0.59 in |
| Max Media Size (Custom) | 2.35 in |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB, USB host, LAN |
| RAM Installed (Max) | 512 MB SDRAM |
| Flash Memory Installed (Max) | 512 MB |
| Language Simulation | SLCS, BPL-Z, BPL-D |
| Barcodes | Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, Plessey, Postnet, GS1 DataBar-14, Standard 2 of 5, UPC/EAN supplementals, UPC-A, UPC-E, IMB, ISBT 128, Aztec, CODABLOCK, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39 |
| Media Type | Gap, black mark labels, labels, notch, continuous labels, fanfold labels |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Power | AC 100-240 V |
| System Requirements | Apple MacOS, Linux, Microsoft Windows, Android, IOS |
| Enclosure Color | Black |
| Dimensions (WxDxH) | 4.4 in x 8.6 in x 5.9 in |
| General | |
| Printer Type | Label printer - direct thermal - monochrome |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Connections | USB ¦ USB host ¦ LAN |
| Miscellaneous | |
| Included Accessories | Power adapter, power cable |
| Cables Included | USB cable |
| Printer | |
| Connectivity Technology | Wired |
| Interface | USB, USB host, LAN |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-D |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Fonts Included | 10 x bitmapped SLCS ¦ 16 x bitmapped BPL-Z ¦ 1 x scalable SLCS ¦ 1 x scalable BPL-D ¦ 5 x bitmapped BPL-E ¦ 9 x bitmapped BPL-D ¦ 1 x scalable BPL-D |
| Barcodes | Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, Plessey, Postnet, GS1 DataBar-14, Standard 2 of 5, UPC/EAN supplementals, UPC-A, UPC-E, IMB, ISBT 128, Aztec, CODABLOCK, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39 |
| RAM | |
| RAM Installed (Max) | 512 MB |
| Technology / Form Factor | SDRAM |
| Media Handling | |
| Media Type | Gap, black mark labels, labels, notch, continuous labels, fanfold labels |
| Max Media Size | Roll (2.35 in) |
| Min Media Size (Custom) | 0.59 in |
| Max Media Size (Custom) | 2.35 in |
| Media Sizes | Roll (0.59 in), Roll (2.35 in) |
| Max Printing Width | 2.24 in |
| Max Printing Length | 78.7 in |
| Media Thickness Range | 0.0024 in - 0.008 in |
| Roll Maximum Outer Diameter | 5 in |
| Roll Core Diameter | 0.5 in, 1.5 in |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Android, IOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 105.8 °F |
| Humidity Range Operating | 10 - 80% RH |
| Flash Memory | |
| Flash Memory | 512 MB |
| Dimensions & Weight | |
| Width | 4.4 in |
| Depth | 8.6 in |
| Height | 5.9 in |
| Weight | 2.45 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
