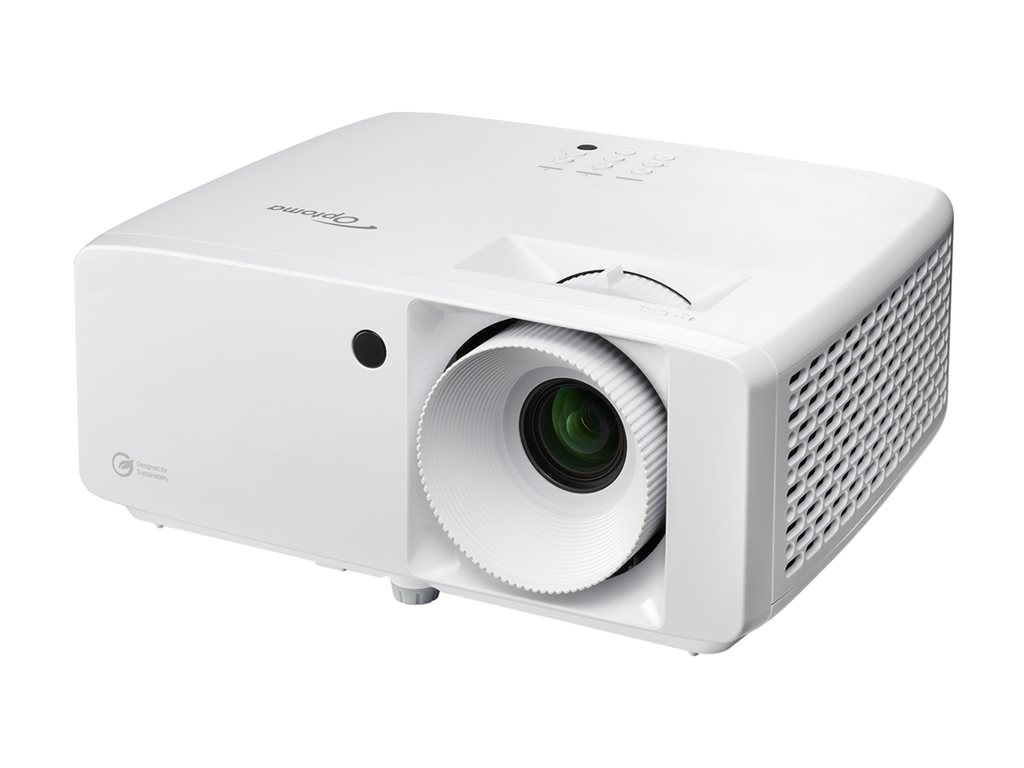

DLP projector - laser - portable - 3D - 6000 lumens - WXGA (1280 x 800) - 16:10 - 1080p - LAN
| Main Specifications | |
|---|---|
| Product Description | Optoma ZW521 - DLP projector - portable - 3D - LAN |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Brightness | 6000 lumens |
| Contrast Ratio | 300000:1 |
| Resolution | WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Video Input | (HDTV, NTSC, PAL, SDTV, SECAM), LAN |
| Video Modes | 1080p, 720p |
| Speakers | Speaker(s) - integrated |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 210 watt |
| Dimensions (WxDxH) | 10.8 in x 8.5 in x 4.5 in |
| Weight | 6.39 lbs |
| General | |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Networking | Ethernet |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI input ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 2 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 (management) ¦ 1 x 12 V trigger ¦ 1 x 3D Sync out ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Included Accessories | Remote control, 2 x AAA batteries, power cable |
| Security Features | Security lock slot (cable lock sold separately), security bar, password protection |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ISO 21118 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 210 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Sound Emission | 29 dB |
| Sound Emission (Economic Mode) | 29 dB |
| Video Input | |
| TV System | HDTV, NTSC, PAL, SDTV, SECAM |
| Video Interfaces | VGA, HDMI |
| Video Modes | 1080p, 720p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 10.8 in |
| Depth | 8.5 in |
| Height | 4.5 in |
| Weight | 6.39 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.7 lbs |
| Projector | |
| Brightness | 6000 lumens |
| Contrast Ratio | 300000:1 |
| Image Size | 29.9 in - 300 in |
| Projection Distance | 3.3 ft - 33 ft |
| Throw Ratio | 1.18 - 1.54:1 |
| Uniformity | 75 % |
| Resolution | WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Type | Laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Controls & Adjustments | Keystone correction |
| OSD Languages | Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese, Korean, Thai |
| Features | 4:3 aspect ratio support, 16:9 aspect ratio support, 24/7 operation, Eco+ technology, DuraCore, Amazing Color, Colour Management System (CMS), Crestron RoomView, AMX Device Discovery, Extron IPLink certified, 4 Corner Correction, 360° projection, Auto Power Off, Optoma Management Suite (OMS) compatible |
| Lens | |
| Zoom Type | Manual |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 15 watt |
| Speakers | 1 x mixed channel |
