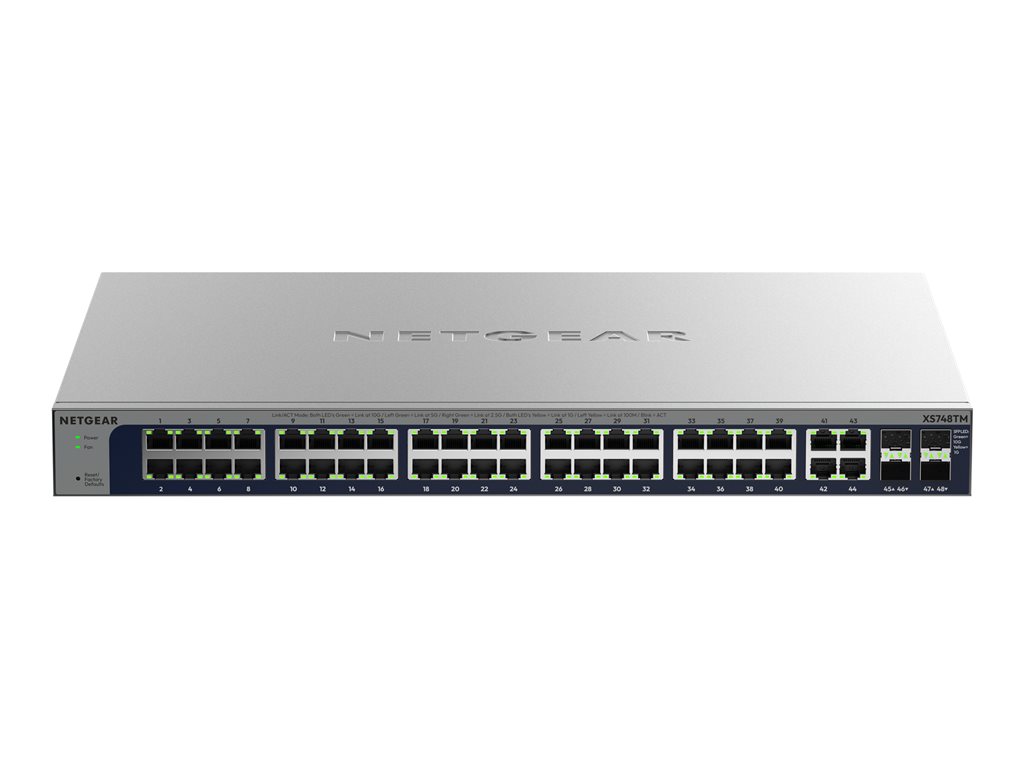

Switch - 2+/L3 Lite - smart - 44 x 10GBase-T + 4 x 10Gb Ethernet SFP+ (uplink) - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR S3600 Series XS748TM - switch - 44 ports - smart - rack-mountable |
| Device Type | Switch - 44 ports - 2+/L3 Lite - smart |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 44 x 10GBase-T + 4 x 10Gb Ethernet SFP+ (uplink) |
| Performance | Non-blocking bandwidth: 960 Gbps ¦ Forwarding rate (64?byte packets): 714.2 Mpps |
| Capacity | VLANs supported: 512 ¦ IGMP multicast groups: 512 ¦ Priority queues: 8 ¦ DHCP snooping entries: 256 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ ACL entries (ingress): 100 ¦ ARP table: 1024 ¦ Packet buffer size: 2 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12288 bytes |
| Routing Protocol | Static IPv4 routing, static IPv6 routing, IGMP, IGMPv2, IGMPv3 |
| Remote Management Protocol | CLI, SSH, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, Telnet, MLD, RMON 1, RMON 2, RMON 3, RMON 9 |
| Features | Auto Negotiation, 802.1x authentication, IGMP snooping, Link Aggregation, QoS, VLAN support, Advanced Quality of Service (QoS), DoS, port mirroring, EEE, cable test, DHCP client, DHCP relay, DHCP server, DHCP snooping, LAG, LACP, auto voice VLAN, Auto VoIP, ACL support, DAI, SPQ, WRR, dual firmware images, dynamic VLAN assignment, firmware upgradable, loop prevention, GVRP, GARP, Private VLAN, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, MVR, MAC lockdown, DiffServ support, SNTP client, syslog server, store and forward, reset button |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP |
| Dimensions (WxDxH) | 17.3 in x 13.8 in x 1.7 in |
| Weight | 13.51 lbs |
| Localization | North America |
| Manufacturer Warranty | NETGEAR lifetime warranty |
| General | |
| Device Type | Switch - 44 ports - 2+/L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 44 x 10GBase-T + 4 x 10Gb Ethernet SFP+ (uplink) |
| Performance | Non-blocking bandwidth: 960 Gbps ¦ Forwarding rate (64?byte packets): 714.2 Mpps |
| Capacity | VLANs supported: 512 ¦ IGMP multicast groups: 512 ¦ Priority queues: 8 ¦ DHCP snooping entries: 256 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ ACL entries (ingress): 100 ¦ ARP table: 1024 ¦ Packet buffer size: 2 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12288 bytes |
| Routing Protocol | Static IPv4 routing, static IPv6 routing, IGMP, IGMPv2, IGMPv3 |
| Remote Management Protocol | CLI, SSH, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, Telnet, MLD, RMON 1, RMON 2, RMON 3, RMON 9 |
| Authentication Method | Extensible Authentication Protocol (EAP), RADIUS, TACACS+ |
| Features | Auto Negotiation, 802.1x authentication, IGMP snooping, Link Aggregation, QoS, VLAN support, Advanced Quality of Service (QoS), DoS, port mirroring, EEE, cable test, DHCP client, DHCP relay, DHCP server, DHCP snooping, LAG, LACP, auto voice VLAN, Auto VoIP, ACL support, DAI, SPQ, WRR, dual firmware images, dynamic VLAN assignment, firmware upgradable, loop prevention, GVRP, GARP, Private VLAN, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, MVR, MAC lockdown, DiffServ support, SNTP client, syslog server, store and forward, reset button |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP |
| Processor | 1 Quad Core: 1.2 GHz |
| RAM | 512 MB |
| Flash Memory | 64 MB |
| Built-in Devices | 4 x fans |
| Status Indicators | Power, link/activity/speed, fan |
| Expansion / Connectivity | |
| Interfaces | 44 x 1/2.5/5/10GBase-T RJ-45 ¦ 4 x 1/10GBase-X SFP+ uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Technical support - 90 days |
| Miscellaneous | |
| Included Accessories | Power cord, rubber feet |
| Rack Mounting Kit | Included |
| MTBF | 174,197 hours |
| Localization | North America |
| Power | |
| Power Device | Internal power supply |
| Power Consumption Stand by | 105.7 watt |
| Software / System Requirements | |
| Software Included | NETGEAR Insight |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 95% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 13.51 lbs |
