Hybrid storage array - 32 TB - 8 bays (SATA-600) - HDD 4 TB x 8 - Thunderbolt 5 (external)
| Main Specifications | |
|---|---|

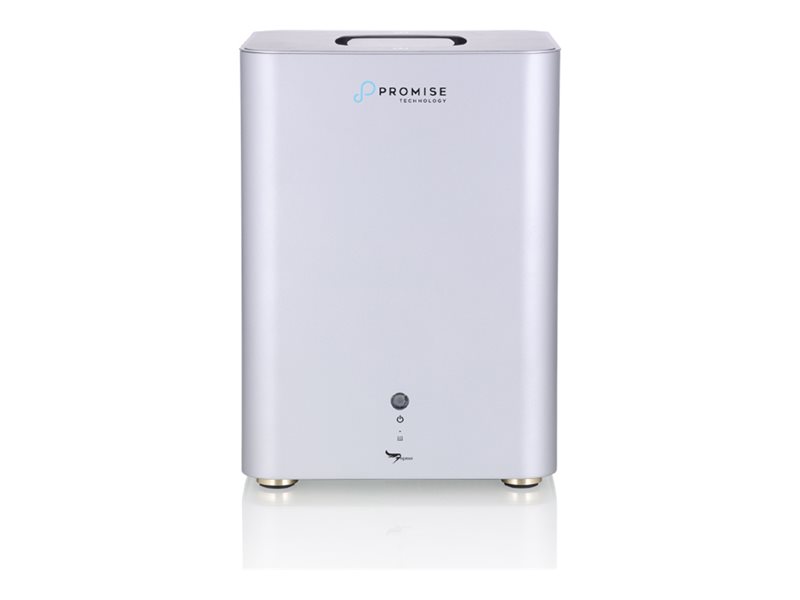

| Product Description | Promise Pegasus5 R12 Pro - hybrid storage array |
| Device Type | Hybrid storage array |
| Total Array Capacity | 32 TB |
| Max Supported Capacity | 320 TB |
| Interface | Thunderbolt 5 |
| Maximum LUNs | 128 |
| Installed Devices / Modules Qty | 8 (installed) / 8 (max) |
| Supported Drives | SATA-600 |
| Storage Controller | RAID (SATA 6Gb/s) - RAID 0, 1, 5, 6, 10, 50, 60 |
| Hard Drive | 8 x 4 TB HDD SATA 6Gb/s - hot-swap - hot spare |
| OS Required | Windows 11, Apple macOS 15 or later |
| Power | AC 100-240 V 50 - 60 Hz |
| Dimensions (WxDxH) | 8.9 in x 8.9 in x 12.5 in |
| Weight | 35.27 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hybrid storage array |
| Expansion / Connectivity | |
| Interfaces | 3 x Thunderbolt 5 (rear) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Technical support - phone / e-mail support - on-site |
| Miscellaneous | |
| Features | Predictive Data Migration (PDM), Hybrid RAID, LED status indicators, 85W power delivery, intelligent air cooling, Kensington security slot, power saving mode |
| Compliant Standards | EMC, FCC, Safety certification, cTUVus, CB, ERP, EuP, RoHS, WEEE |
| Storage | |
| Total Array Capacity | 32 TB |
| Max Supported Capacity | 320 TB |
| HDD Array External Interface | Thunderbolt 5 |
| Maximum LUNs | 128 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V 50 - 60 Hz |
| Power Provided | 500 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| System Requirements | |
| OS Required | Windows 11, Apple macOS 15 or later |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 8 x 4 TB |
| Interface Type | SATA 6Gb/s |
| Features | Hot spare |
| Dimensions & Weight | |
| Width | 8.9 in |
| Depth | 8.9 in |
| Height | 12.5 in |
| Weight | 35.27 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 8 |
| Supported Devices / Modules Qty | 8 |
| Supported Drives | SATA-600 |
