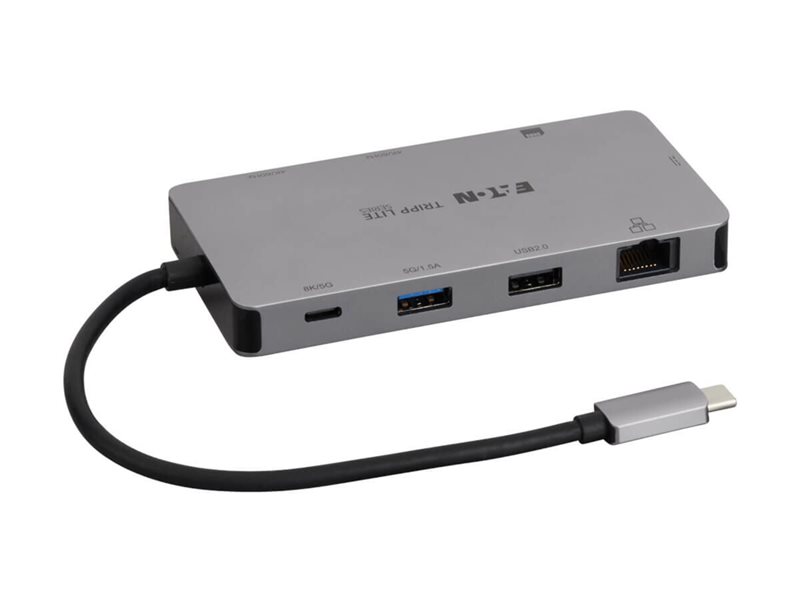

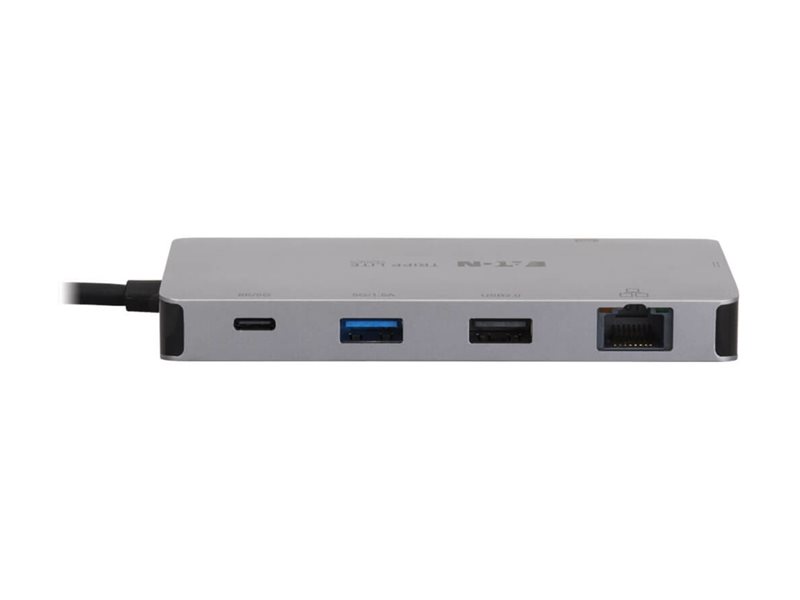

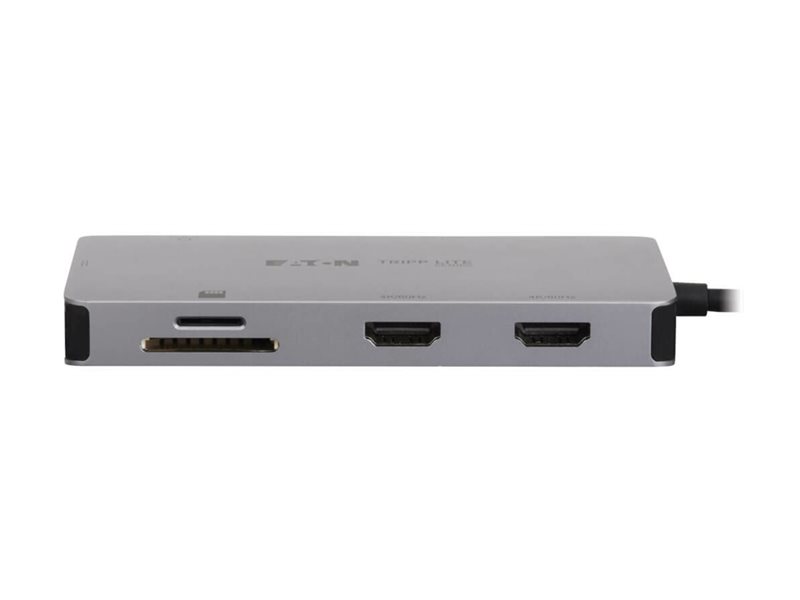

Docking station - for laptop - USB-C - 2 x HDMI, USB-C - 1GbE - Global
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - docking station - USB-C - 2 x HDMI, USB-C - 1GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI, USB-C |
| Dimensions (WxDxH) | 4.3 in x 2.3 in x 0.4 in |
| Weight | 1.45 oz |
| Color | Black & gray |
| Localization | Global |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 4.3 in |
| Depth | 2.3 in |
| Height | 0.4 in |
| Weight | 1.45 oz |
| Enclosure Color | Black & gray |
| Localization | Global |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SD/microSD Memory Card (Secure Digital v3.0 UHS-I) |
| Interfaces | 1 x USB-A 2.0 - 4 pin USB Type A ¦ 1 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 with Power Delivery (85 W) - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45 ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Input Device | SD card reader, microSD card reader |
| Cables Included | 1 x USB-C cable - integrated - 6.7 in |
| Features | Triple display support, 4K60Hz support, HDR support, 4:4:4 chroma subsampling, 100W power delivery, 20V/5A pass-through charging, DisplayPort Alt Mode, 36-bit Deep Color, 4K30Hz support, 8K30Hz support, 4K144Hz support, lightweight, Extended Mode, Mirror Mode, 3D video support, 4:2:0 chroma subsampling, 4:2:2 profile support, 18 Gbps HDMI bandwidth, Display Stream Compression (DSC), bus powered, LED status indicators, overcurrent protection, up to 5Gbps data transfer, MST (multi-stream transport), full duplex support, remote wakeup support |
| Compliant Standards | Plug and Play, HDCP 2.3, USB Power Delivery 3.0, RoHS, HDCP 1.4, VW-1, ICES (Canada), FCC (USA), Mexico NOM, REACH |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 1, USB 2.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 7680 x 4320 - 30 Hz (DisplayPort 1.4 over USB-C) ¦ 3840 x 2160 - 60 Hz (HDMI only) |
| System Requirements | |
| OS Required | Windows, Apple MacOS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.5 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 0.9 in |
| Shipping Weight | 13.4 oz |
