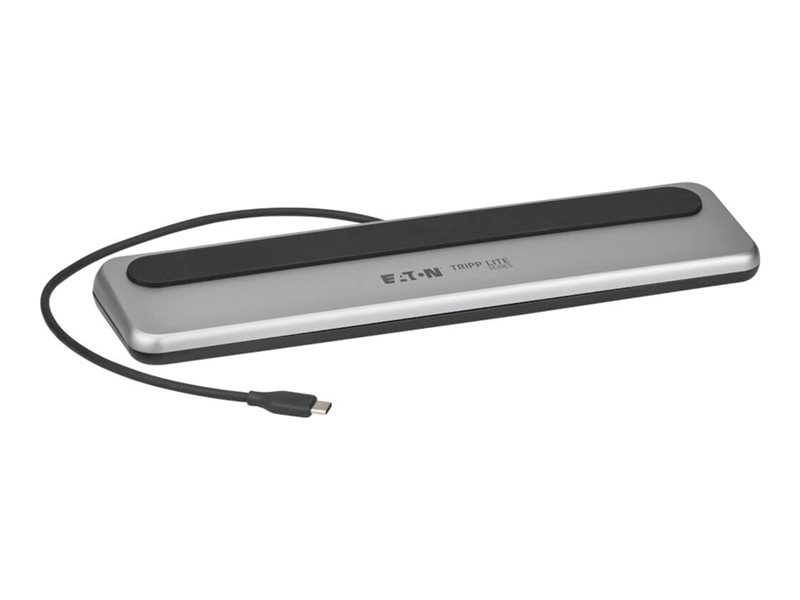

Docking station - for laptop - USB-C - 2 x HDMI, DP - 1GbE, 2.5GbE - North America
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - docking station - USB-C - 2 x HDMI, DP - 1GbE, 2.5GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI, DP |
| Dimensions (WxDxH) | 7.5 in x 3.1 in x 0.9 in |
| Weight | 15.87 oz |
| Color | Black & gray |
| Localization | North America |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter (not included) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 7.5 in |
| Depth | 3.1 in |
| Height | 0.9 in |
| Weight | 15.87 oz |
| Enclosure Color | Black & gray |
| Localization | North America |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x SD/microSD Memory Card (Secure Digital v3.0 UHS-I) |

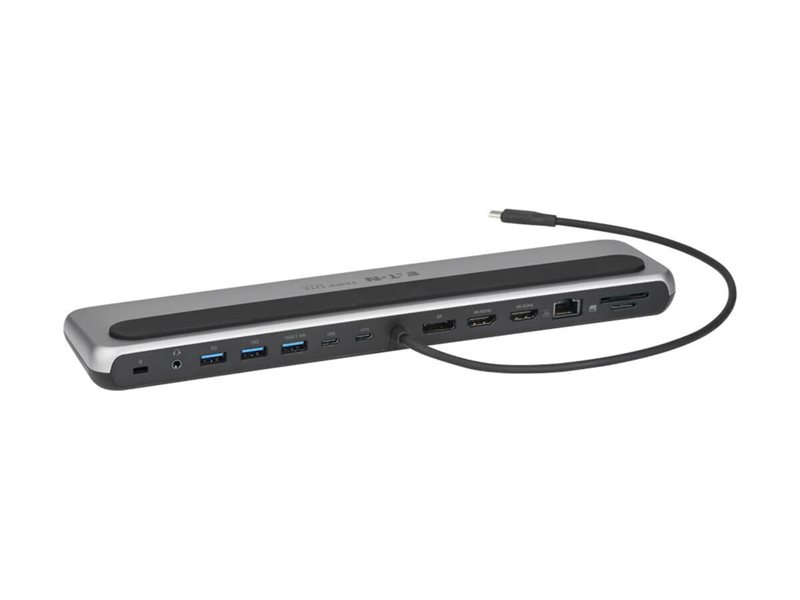

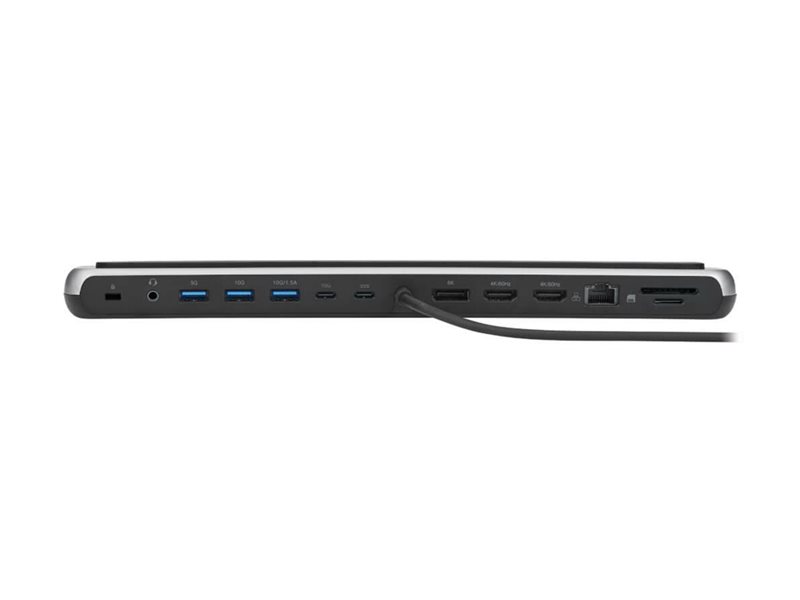

| Interfaces | 1 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 2 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x USB-C with Power Delivery (85 W) - 24 pin USB-C ¦ 1 x audio - input / output - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Input Device | SD card reader, microSD card reader |
| Cables Included | 1 x USB-C cable - integrated - 1.2 ft |
| Features | Triple display support, HDR support, 100W power delivery, 4K60Hz support, 8K30Hz support, 85W charging, 4K144Hz support, 36-bit Deep Color, 4:4:4 chroma subsampling, up to 10Gbps data transfer, 4:2:0 chroma subsampling, 4:2:2 profile support, unidirectional data flow, Extended Mode, Mirror Mode, 48-bit Deep Color, Display Stream Compression (DSC), overcurrent protection, MST (multi-stream transport), full duplex support, remote wakeup support, suspend mode support, bus powered, 20V/5A pass-through charging, LED status indicators, DisplayPort Alt Mode |
| Security Slot Type | Kensington security slot |
| Compliant Standards | Plug and Play, HDCP 2.3, HDCP 1.4, RoHS, CAN/CSA-C22.2 No. 62368-1, FCC Part 15 Class B, ICES (Canada), ICES-003 issue 7, UL 62368-1, UKCA, USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Power | |
| Power Device | Power adapter (not included) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 7680 x 4320 - 30 Hz (DisplayPort 1.4 only) ¦ 4096 x 2160 - 60 Hz (HDMI) |
| System Requirements | |
| OS Required | Windows, Apple MacOS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.4 in |
| Shipping Depth | 4.6 in |
| Shipping Height | 1.8 in |
| Shipping Weight | 17.64 oz |
