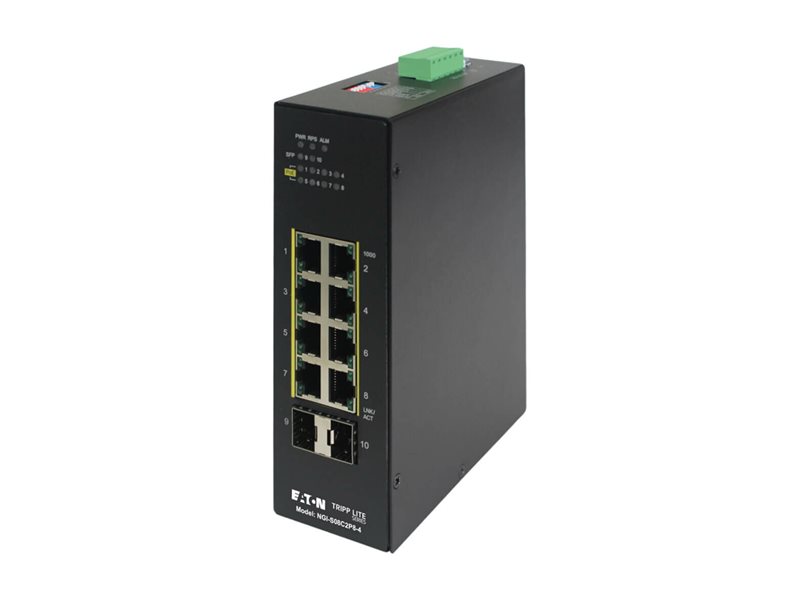

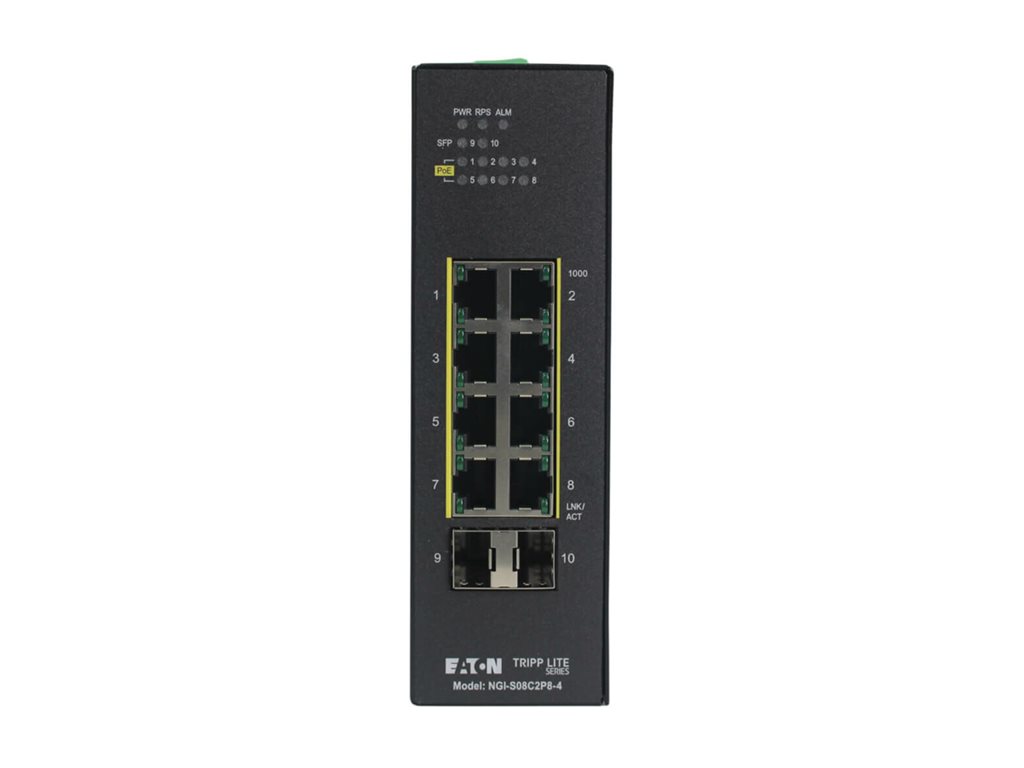

Switch - industrial, -10 to 60°C - smart - 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) - DIN rail mountable - PoE+ (240 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series - switch - industrial, -10 to 60°C - 8 ports - smart - TAA Compliant |
| Device Type | Switch - 8 ports - smart |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 20 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Remote Management Protocol | RMON, SNMP |
| Features | Auto-negotiation, QoS, metal housing, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), Storm Control, auto-uplink (auto MDI/MDI-X), fanless, flow control, rugged, full duplex capability |
| Compliant Standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Power | DC 48 - 57 V |
| Dimensions (WxDxH) | 2 in x 4.7 in x 6.3 in |
| Weight | 34.21 oz |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 8 ports - smart |

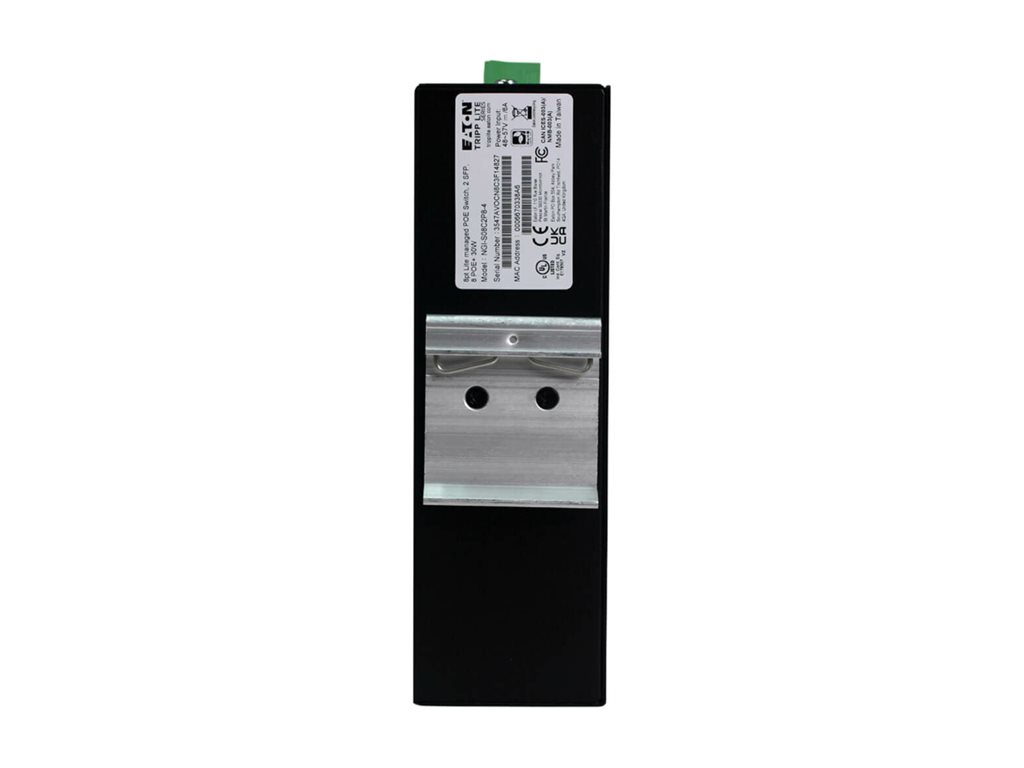

| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 20 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Remote Management Protocol | RMON, SNMP |
| Features | Auto-negotiation, QoS, metal housing, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), Storm Control, auto-uplink (auto MDI/MDI-X), fanless, flow control, rugged, full duplex capability |
| Compliant Standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Power, RPS (Redundant Power Supply), alarm, PoE, port transmission speed, link/activity, SFP |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T (PoE) RJ-45 30 W ¦ 2 x 1000Base-X SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | Dust cover |
| Compliant Standards | RoHS, Plug and Play, IP30 |
| TAA Compliant | Yes |
| Power | |

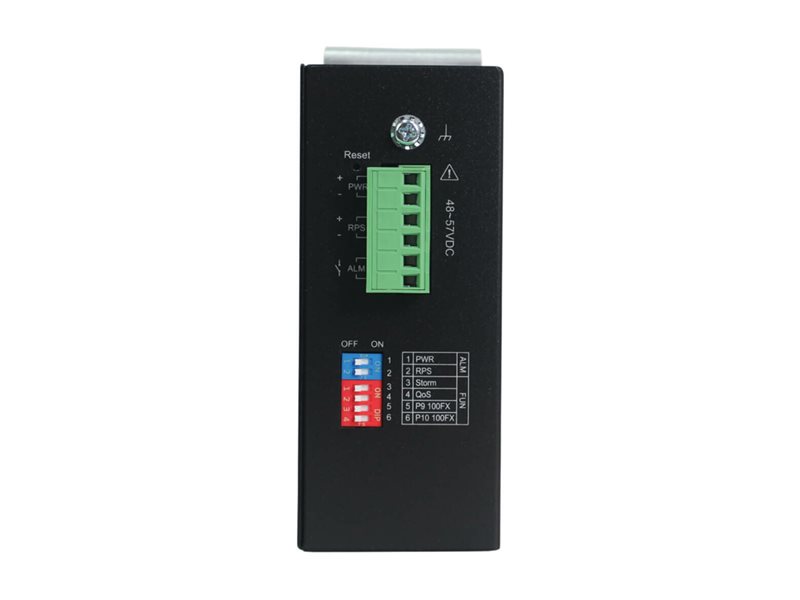

| Voltage Required | DC 48 - 57 V |
| Power Consumption Operational | 13 watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 4.7 in |
| Height | 6.3 in |
| Weight | 34.21 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.4 in |
| Shipping Depth | 7.2 in |
| Shipping Height | 9.2 in |
| Shipping Weight | 2.54 lbs |
