12G-SDI input/output scaling card
| Main Specifications | |
|---|---|
| Product Description | Kramer MC3-2S-2S 12G-SDI input/output scaling card |
| Type | 12G-SDI input/output scaling card |
| Supported Video Standards | NTSC, PAL |
| Dimensions (WxDxH) | 10 in - 5.1 in - 0.8 in |
| Weight | 14.11 oz |
| General | |
| Type | 12G-SDI input/output scaling card |
| Width | 10 in |
| Depth | 5.1 in |
| Height | 0.8 in |
| Weight | 14.11 oz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.5 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.1 in |
| Shipping Weight | 21.16 oz |
| Terminals | |

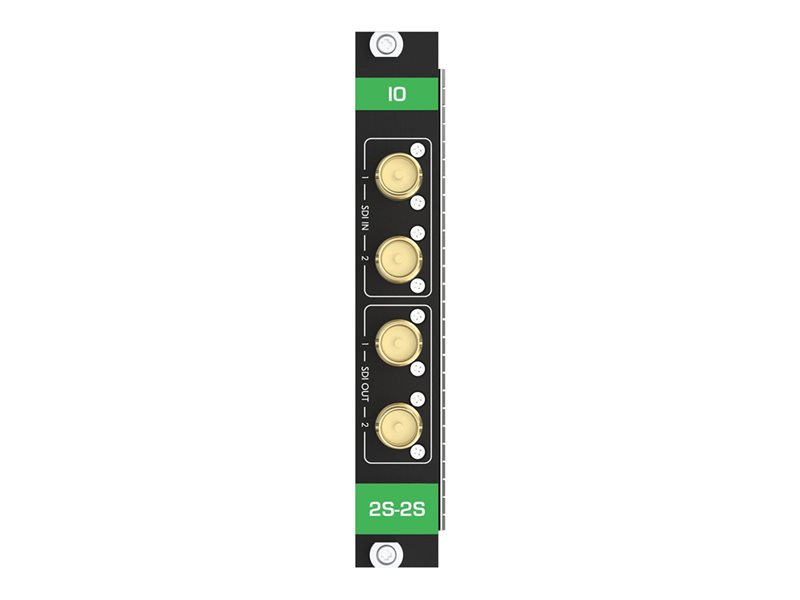

| Terminals | (2) x 12G-SDI input - BNC ¦ (2) x 12G-SDI output - BNC |
| Studio & Production Equipment | |
| Supported Video Standards | NTSC, PAL |
| Features | 4K60 4:2:2 signal support, built-in ProcAmp, SMPTE 259M signal support, SMPTE 292M signal support, SMPTE 424M signal support, SMPTE ST-2081 signal support, SMPTE ST-2082 signal support |
