Distribution amplifier
| Main Specifications | |
|---|---|

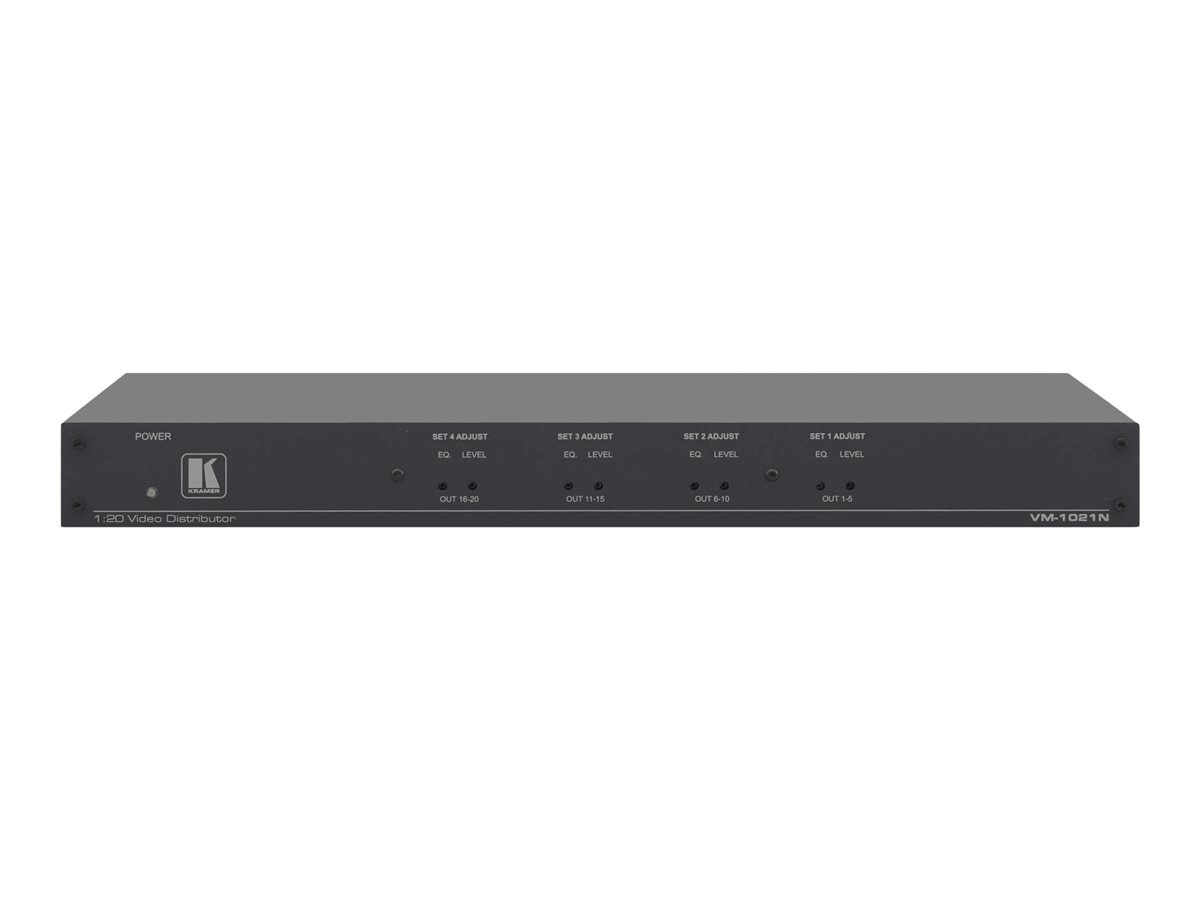

| Product Description | Kramer VM-1021N distribution amplifier |
| Type | Distribution amplifier |
| Dimensions (WxDxH) | 17.2 in - 7.2 in - 1.7 in |
| Weight | 3.53 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Distribution amplifier |
| Width | 17.2 in |
| Depth | 7.2 in |
| Height | 1.7 in |
| Weight | 3.53 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 230 V AC 230 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 10.9 in |
| Shipping Height | 4.2 in |
| Shipping Weight | 5.51 lbs |
| Terminals | |
| Terminals | (1) x SDI / composite video input - BNC - with loop through ¦ (20) x SDI / composite video output - BNC |
| Studio & Production Equipment | |
| Features | DC coupling |
