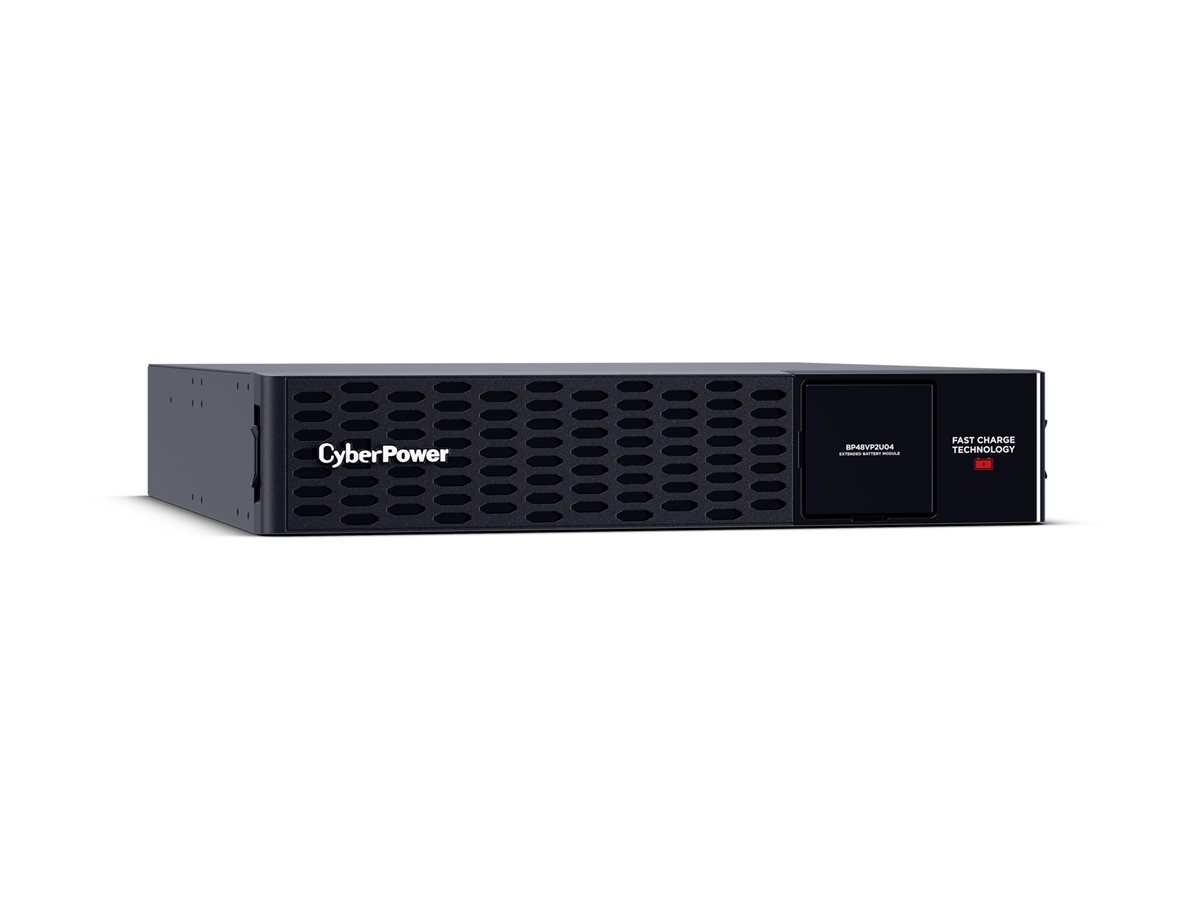

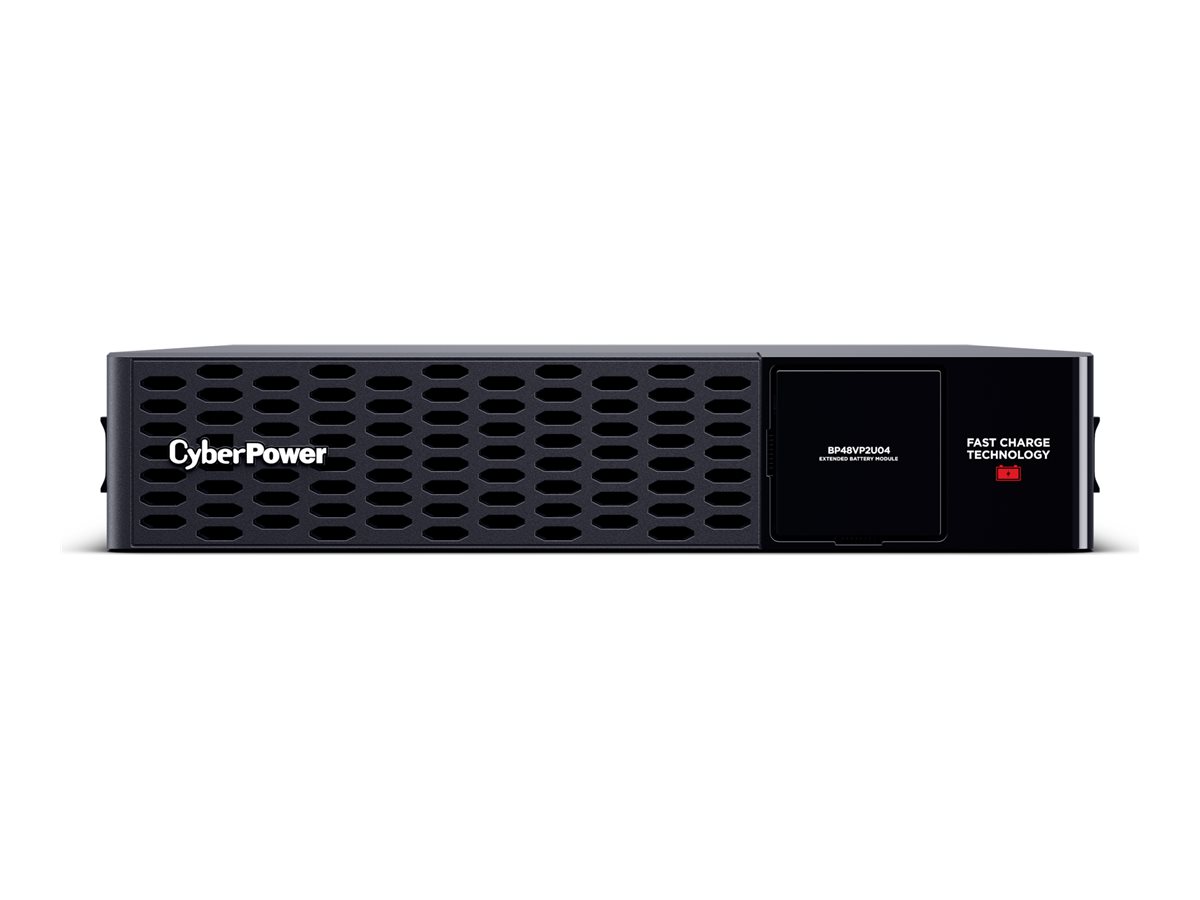

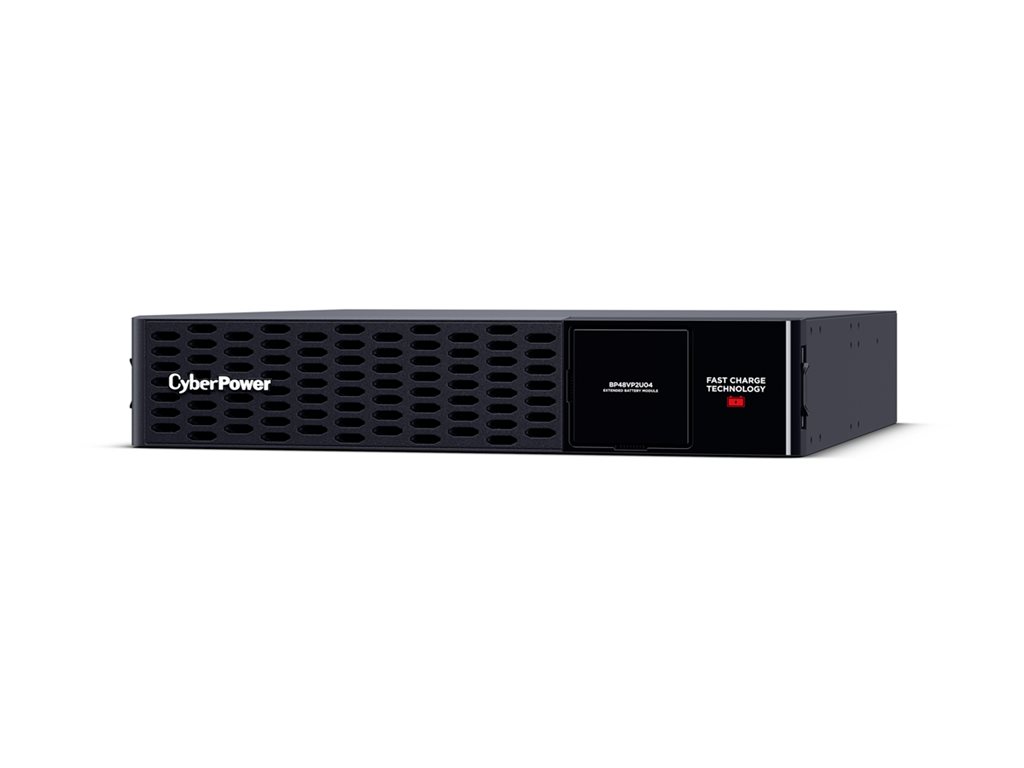

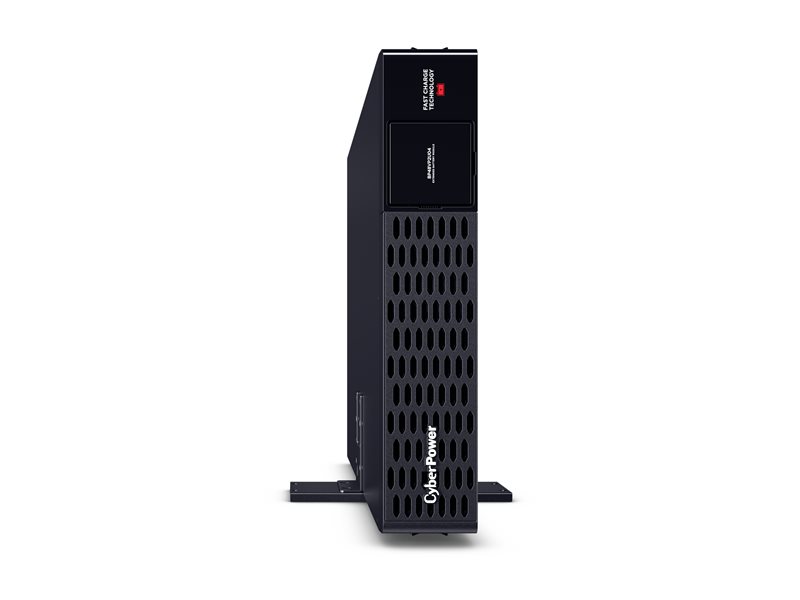

Battery enclosure (rack-mountable / external) - AC 120-240 V - 16 x battery - Sealed Lead Acid (SLA) - 6 Ah - output connectors: 2 - 2U - black
| Main Specifications | |
|---|---|
| Product Description | CyberPower Extended Battery Module Series BP48VP2U04 - battery enclosure - Sealed Lead Acid (SLA) - 6 Ah |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 90.61 lbs |
| Input Voltage | AC 120-240 V |
| Output Voltage | DC 48 V |
| Output connectors | 1 x battery connector - 48 V |
| Battery | Sealed Lead Acid (SLA) - 6 Ah |
| Batteries Qty | 16 |
| Included Accessories | Mounting hardware |
| Color | Black |
| Dimensions (WxDxH) | 17 in x 24.8 in x 3.4 in |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Miscellaneous | |
| Included Accessories | Mounting hardware |
| Rack Mounting Kit | Included |
| Features | Built-in battery charger, metal cabinet, hot-swappable batteries, user-replaceable batteries |
| Compliant Standards | RoHS, FCC Class B certified, cUL, VCCI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Battery | |
| Quantity | 16 |
| Technology | Sealed Lead Acid (SLA) |
| Voltage Provided | 12 V |
| Capacity | 6 Ah |
| Recharge Time | 6 hours |
| Features | Sealed |
| Power Device | |
| Input Voltage | AC 120-240 V |
| Input Voltage Range | AC 120 - 240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x battery connector - 48 V |
| Output Voltage | DC 48 V |
| Max Electric Current | 70 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 24.8 in |
| Height | 3.4 in |
| Weight | 90.61 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.6 in |
| Shipping Depth | 30.1 in |
| Shipping Height | 10.8 in |
| Shipping Weight | 106.26 lbs |
