Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6 - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

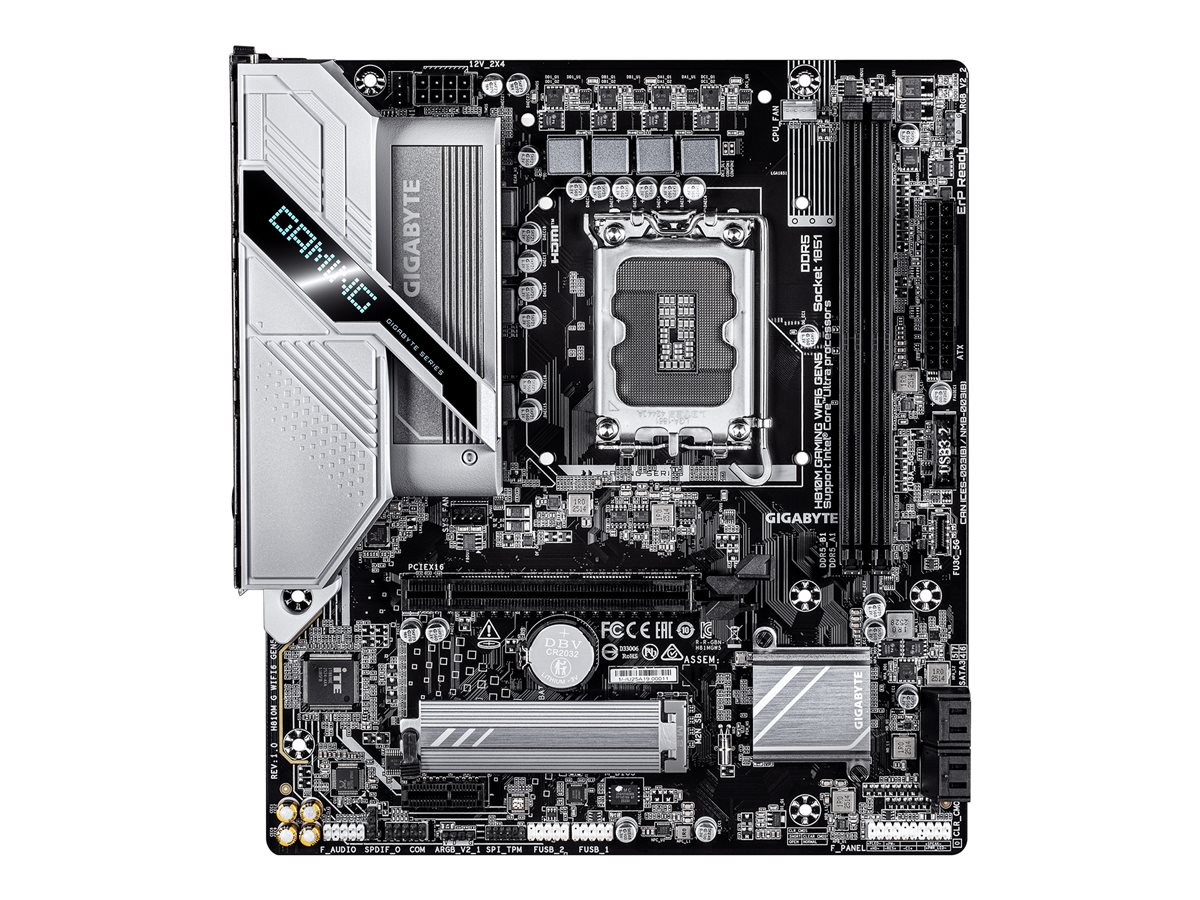

| Product Description | Gigabyte H810M GAMING WIFI6 GEN5 - motherboard - micro ATX - LGA1851 Socket - H810 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size | 128 GB |
| RAM Supported | 2 DIMM slots - DDR5, ECC (operate in non-ECC mode), non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600, 1 x M.2 |
| USB / FireWire Ports | 1 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x USB 3.2 Gen 1 ¦ 5 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, M.2 SSD thick/thin rubber pad |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, HWiNFO, GIGABYTE Smart Backup |
| Compliant Standards | DisplayPort 2.1, HDCP 2.3 |
| Width | 9.6 in |
| Depth | 8.5 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, DIY Friendly Design, 4+1+2 Phase Power Design, EZ Debug LED, GIGABYTE Smart Fan 6, M.2 EZ Latch, M.2 Thermal Guard, PCIe EZ Latch, RGB FUSION, Ultra Durable, VRM heatsink design, VRM Thermal Armor Advanced, WIFI EZ Plug |
| LAN | |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MT/s, 6400 MT/s |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, supported ECC modules operate in non-ECC mode |
