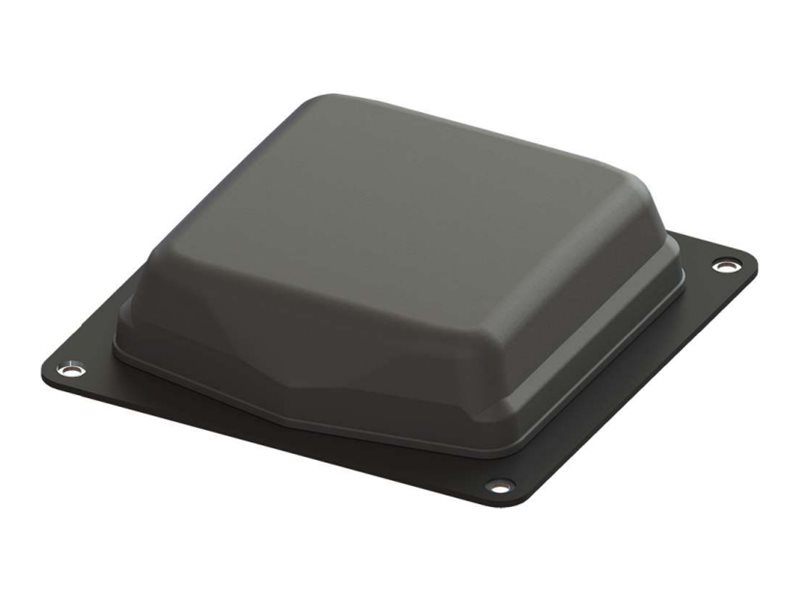

Antenna - radome - Wi-Fi, cellular, navigation - omni-directional - tram, bus, train
| Main Specifications | |
|---|---|
| Product Description | Panorama Antennas TRNM[X]4-6-60-[X] - antenna |
| Device Type | Antenna |
| Form Factor | Radome |
| Intended For | Wi-Fi, cellular, navigation |
| Antenna Placing / Mounting | Tram, bus, train |
| Dimensions (WxDxH) | 13.8 in x 13.8 in x 3.3 in |
| Color | Jet black, RAL 9005 |
| Compatibility | GPS, GNSS, Wi-Fi, LTE, 4G, 5G |
| Frequency Range | 617 - 960 MHz, 1427 - 6000 MHz, 2396 - 7125 MHz, 1562 - 1612 MHz |
| Directivity | Omni-directional |
| Features | Low profile, VSWR < 2:1, 4x4 MiMo, flame retardant, IP69K, right-hand circular polarization (RHCP), UV stabilized |
| General | |
| Product Type | Antenna |
| Form Factor | Radome |
| Intended For | Wi-Fi, cellular, navigation |
| Antenna Placing / Mounting | Tram, bus, train |
| Width | 13.8 in |
| Depth | 13.8 in |
| Height | 3.3 in |
| Color | Jet black, RAL 9005 |
| Product Material | Cast aluminum, Ultem |
| Miscellaneous | |
| Cables Included | Antenna cable - 1.6 ft |
| Antenna | |
| Compatibility | GPS, GNSS, Wi-Fi, LTE, 4G, 5G |
| Frequency Range | 617 - 960 MHz, 1427 - 6000 MHz, 2396 - 7125 MHz, 1562 - 1612 MHz |
| Impedance | 50 ohm |
| Max Power | 60 watt |
| Directivity | Omni-directional |
| Features | Low profile, VSWR < 2:1, 4x4 MiMo, flame retardant, IP69K, right-hand circular polarization (RHCP), UV stabilized |
| Connector Provided | |
| Type | 4 x cellular antenna - N connector (female) ¦ 4 x Wi-Fi antenna - N connector (female) ¦ 1 x GPS antenna - TNC (male) |
