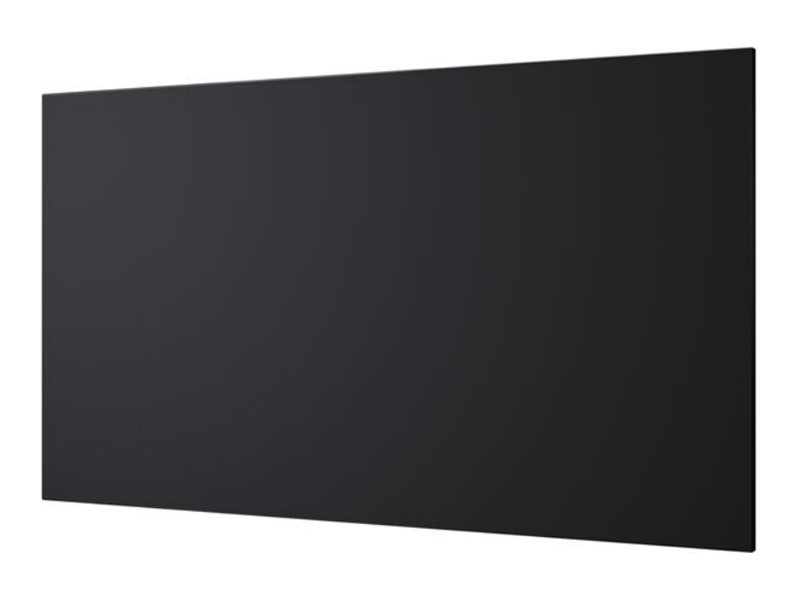

AD Series LED video wall - digital signage - 1920 x 1080 165" - 3-in-1 SMD
| Main Specifications | |
|---|---|
| Product Description | Panasonic TL 165AD19AW AD Series LED video wall - for digital signage |
| Product Type | LED video wall |
| Diagonal Size | 165" |
| Commercial Use | Yes - digital signage |
| Video Wall Resolution | 1920 x 1080 |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| LCD Backlight Technology | LED backlight |
| TV Tuner | No tuner |
| Video Wall Display Unit | 3-in-1 SMD |
| USB | Yes |
| Voltage | AC 220-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.7 watt |
| Dimensions (WxDxH) - display unit | 144 in x 3 in x 81.2 in |
| General | |
| Product Type | LED video wall |
| Commercial Use | Yes - digital signage |
| Series | AD Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Design | All-in-one design |
| Dimensions | Display unit |
| Width | 144 in |
| Depth | 3 in |
| Height | 81.2 in |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 220-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.7 watt |
| Power Consumption (Off Mode) | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% |
| Display | |
| LCD Backlight Technology | LED backlight |
| Image Contrast Ratio | 4000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 160° |
| Operation Hours / Days | 24 / 7 |
| Connections | |
| Connector Type | 3 x HDMI input - on unit controller ¦ HDMI output - on unit controller ¦ Serial input - on unit controller ¦ Infrared input - on unit controller ¦ Audio line-in (stereo) - on unit controller ¦ Audio line-out - on unit controller ¦ SPDIF output - on unit controller ¦ USB 3.0 - on unit controller ¦ 2 x Intel SDM (Smart Display Module) slot - on unit controller ¦ Control input - on power box ¦ Sensor - on power box |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display unit - 144 in x 3 in x 81.2 in ¦ System controller - 17 in x 2.4 in x 25.6 in x 24.3 lbs ¦ Power box - 11.8 in x 2.4 in x 11.8 in |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Video Wall Display Unit | |
| Pixel Pitch | 1.9 mm |
| LED Type | 3-in-1 SMD |
| Video Wall | |
| Resolution | 1920 x 1080 |
| Diagonal Size | 165" |
