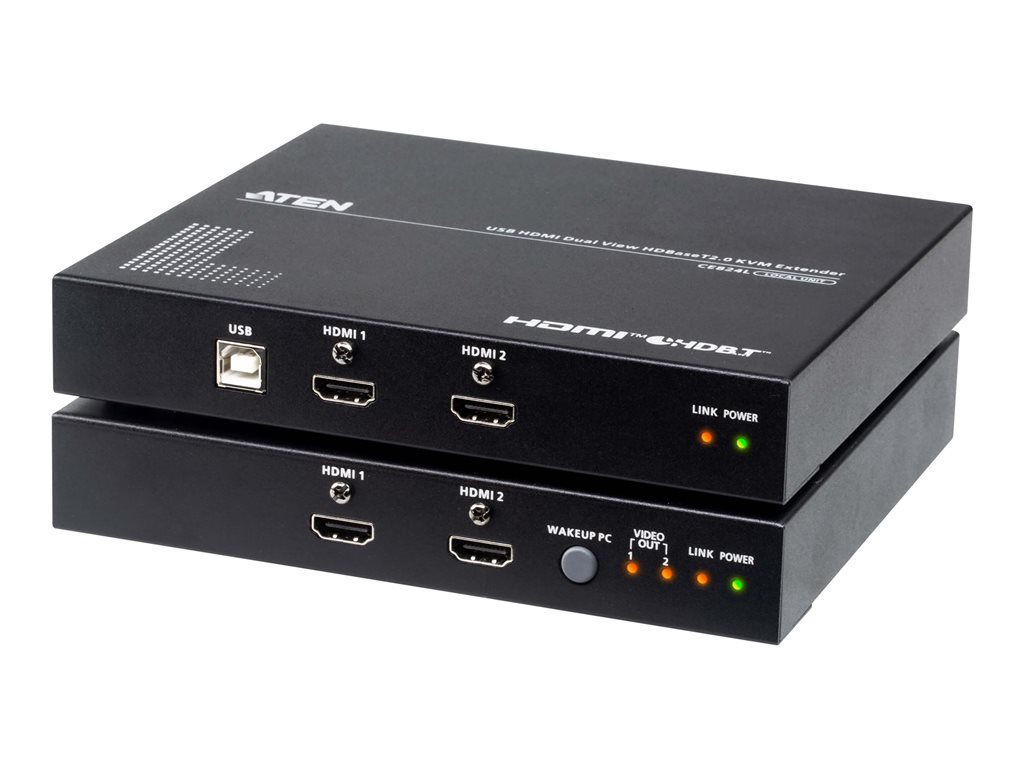

KVM extender - HDBaseT 2.0, 1GbE - over CAT 6/6a - USB - 1000Base-T - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | ATEN CE824 - KVM extender - HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | KVM extender - USB |
| Form Factor | Rack-mountable |
| Cabling Type | 1000Base-T |
| Data Link Protocol | HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE |
| Transmission Medium | CAT 6/6a |
| Max Transfer Distance | 328 ft |
| Power | DC 12 V |
| General | |
| Device Type | KVM extender |
| Form Factor | Rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI (local unit) - 19 pin HDMI Type A female ¦ 1 x USB (local unit) - Type B female ¦ 2 x audio line-in / microphone (local unit) - mini jack female ¦ 1 x RS-232 (local unit) - DB-9 female ¦ 1 x power (local unit) - DC-Jack female ¦ 1 x HDBaseT (local unit) - RJ-45 female ¦ 2 x HDMI (remote unit) - 19 pin HDMI Type A female ¦ 4 x USB (remote unit) - Type A female ¦ 2 x audio line-in / microphone (remote unit) - mini jack female ¦ 1 x RS-232 (remote unit) - DB-9 female ¦ 1 x HDBaseT (remote unit) - RJ-45 female ¦ 1 x power (remote unit) - DC-Jack female |
| Miscellaneous | |
| Included Accessories | 8 foot pads |
| Cables Included | 2 x HDMI cable ¦ 1 x microphone cable ¦ 1 x speaker cable ¦ 1 x USB-A to USB-B cable |
| Rack Mounting Kit | Included |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Link, power, video |
| Features | EDID Buffer, 4K30 8-bit 4:4:4 compatible, long reach mode switch, dual display support, metal housing, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), HDCP compliant |
| Power | |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 10.32 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Local unit: 6.1 in x 6.9 in x 1.1 in / 27.9 oz ¦ Remote unit: 6.1 in x 6.9 in x 1.1 in / 28.9 oz |
