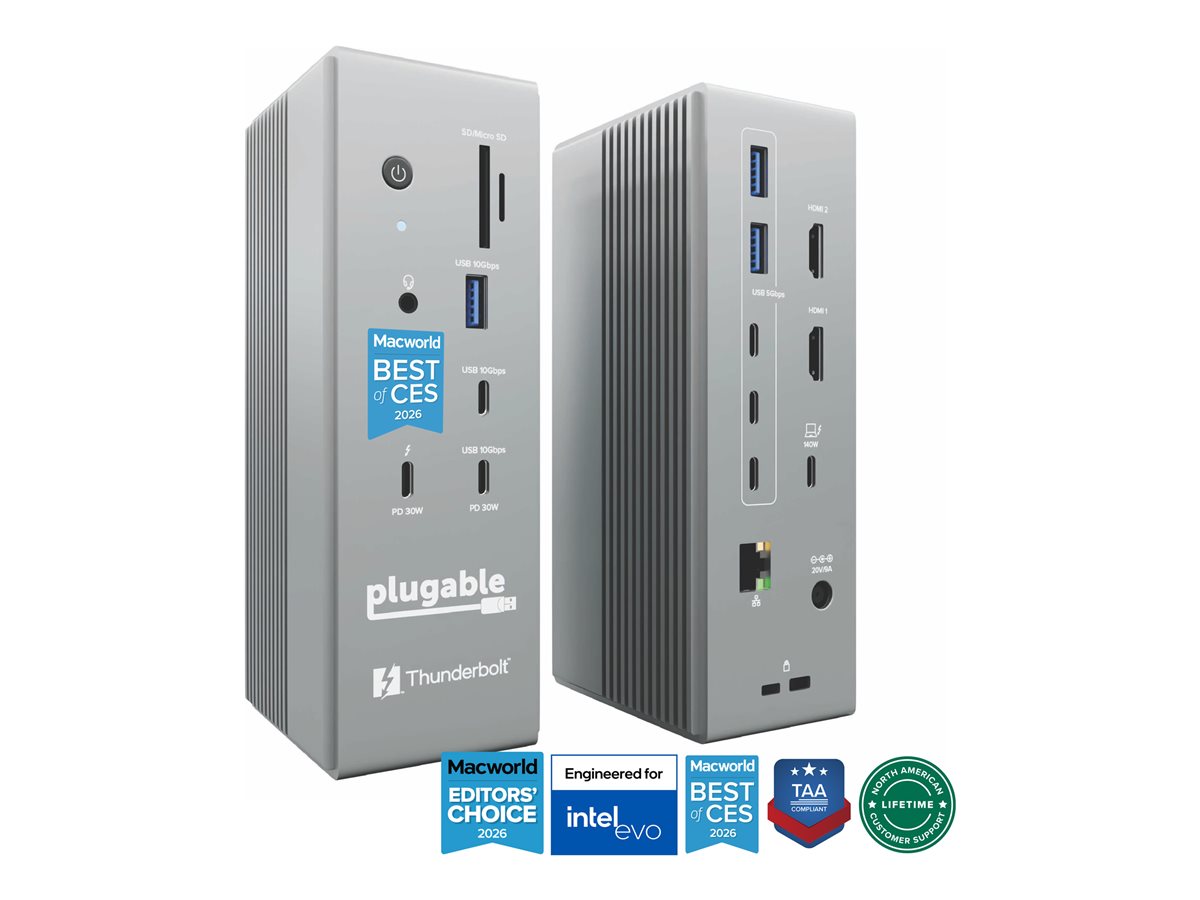

Docking station - Thunderbolt 5 - Thunderbolt 5, 2 x HDMI - 2.5GbE - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Plugable TBT-UDH2 - docking station - Thunderbolt 5 - Thunderbolt 5, 2 x HDMI - 2.5GbE - TAA Compliant |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 5 |
| Video Interfaces | Thunderbolt 5, 2 x HDMI |
| Dimensions (WxDxH) | 2 in x 3 in x 5.9 in |
| Weight | 33.15 oz |
| Networking | 2.5 Gigabit Ethernet |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 2 in |
| Depth | 3 in |
| Height | 5.9 in |
| Weight | 33.15 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x microSD ¦ 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 1 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 with Power Delivery - 24 pin USB-C ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 3 x USB 3.2 Gen 1 - 24 pin USB-C ¦ 1 x Thunderbolt 5 with Power Delivery (30W) - 24 pin USB-C ¦ 1 x Thunderbolt 5 with Power Delivery (140W) - 24 pin USB-C ¦ 1 x audio - 3.5mm audio jack ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 5 cable - detachable - 3.3 ft |
| Included Accessories | Power adapter, 2 x rubber feet |
| Features | LED indicator, wake on LAN, supports 9K jumbo frames, security lock slot (cable lock sold separately), up to 140W power delivery |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Dual Display) |
