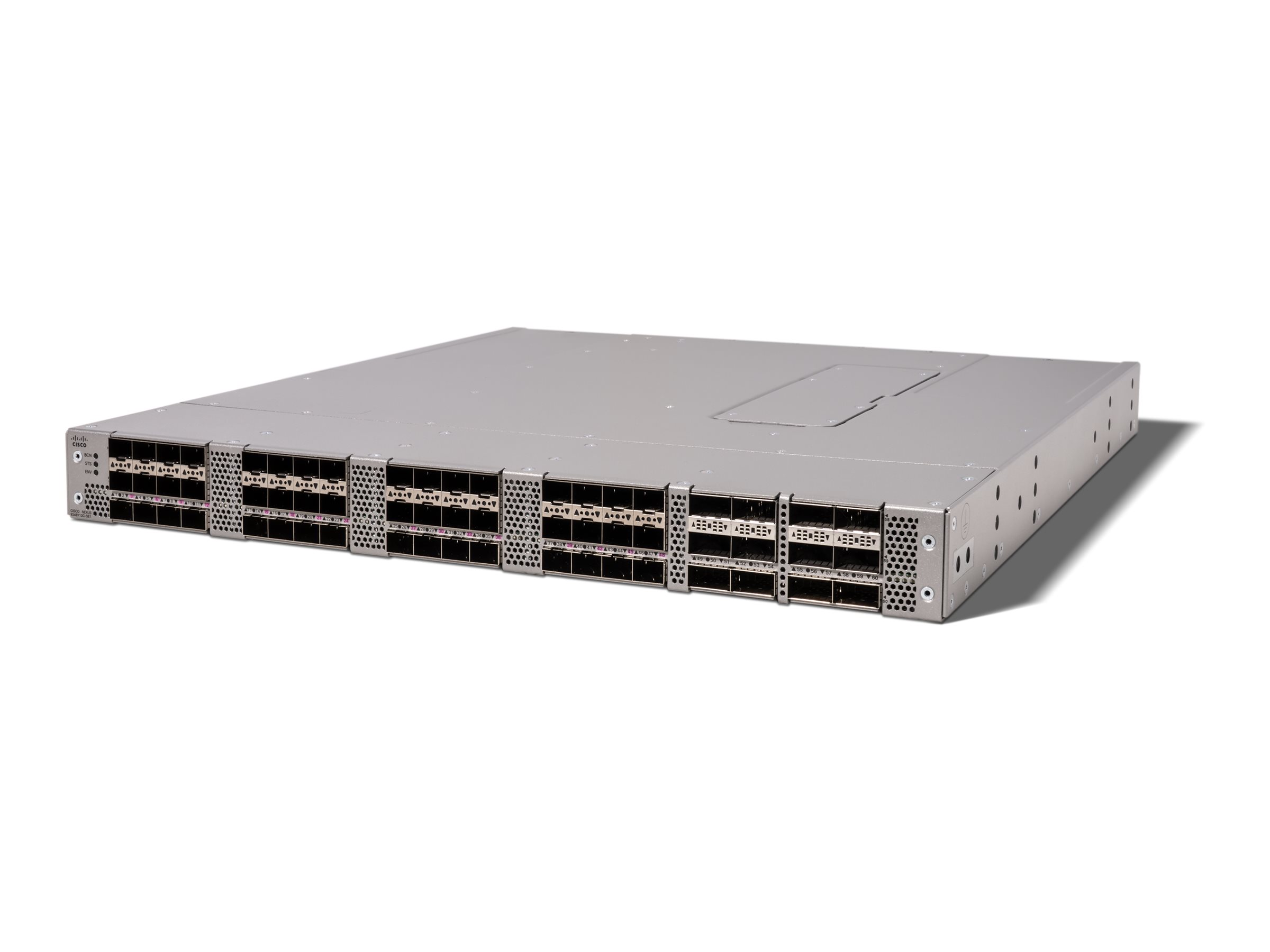

Switch - L3 - 32 x 25 Gigabit SFP + 16 x 50 Gigabit SFP + 12 x 40/100 Gigabit QSFP28 - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Nexus 9348Y12C-SE1 - switch - 48 ports - rack-mountable |
| Device Type | Switch - 48 ports - L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 32 x 25 Gigabit SFP + 16 x 50 Gigabit SFP + 12 x 40/100 Gigabit QSFP28 |
| Performance | Bandwidth: 5.6 tbps |
| Capacity | Firewall egress filters RACL rules: 2000000 ¦ Host table entries (IPv4): 1250000 ¦ IPv6 longest prefix match (LPM) routes: 1000000 ¦ Host table entries (IPv6): 640000 ¦ MAC address entries: 1250000 ¦ Multicast routes: 128000 ¦ IGMP snooping groups: 128000 ¦ ACL entries (ingress): 136000 ¦ ACL entries (egress): 136000 ¦ Maximum number of VLANs: 4096 ¦ Virtual Routing and Forwarding (VRF) instances: 2044 ¦ ECMP paths: 128 ¦ Port channels: 5000 ¦ Maximum number of links in a port channel: 4000 ¦ Active SPAN sessions: 24 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ NAT entries: 8000 ¦ MST instances: 64 ¦ Queues: 8 ¦ Packet buffer memory: 64 MB |
| Routing Protocol | BGP, OSPF, IS-IS, EIGRP, MSDP, PIM-SM, PIM-SSM, RIP-2, RSVP, MPLS, ECMP, Bidirectional Forwarding Detection (BFD), VRF, static IP routing, HSRP, policy-based routing (PBR) |
| Remote Management Protocol | YANG, NETCONF, RESTCONF, SNMP 3, SNMP 2, SSH-2 |
| Features | EVPN, PSE, POAP, DME, non-blocking architecture, IPSec support, MACsec support, VXLANsec encryption, flow control, vPC technology, SMU, ToR, port-side intake, 6-core CPU, AI/ML powered, DHCP relay, UDLD, VLAN support, LACP, LLDP support, MSTP support, RSTP support, ASM, IGMP snooping, IPv6 multicasting, MLD snooping, proxy ARP, QoS, SSM, AAA, sFlow |
| Compliant Standards | IEEE 802.1ae |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 18 in x 1.7 in |
| Weight | 16.38 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 48 ports - L3 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 50 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 32 x 25 Gigabit SFP + 16 x 50 Gigabit SFP + 12 x 40/100 Gigabit QSFP28 |
| Performance | Bandwidth: 5.6 tbps |
| Capacity | Firewall egress filters RACL rules: 2000000 ¦ Host table entries (IPv4): 1250000 ¦ IPv6 longest prefix match (LPM) routes: 1000000 ¦ Host table entries (IPv6): 640000 ¦ MAC address entries: 1250000 ¦ Multicast routes: 128000 ¦ IGMP snooping groups: 128000 ¦ ACL entries (ingress): 136000 ¦ ACL entries (egress): 136000 ¦ Maximum number of VLANs: 4096 ¦ Virtual Routing and Forwarding (VRF) instances: 2044 ¦ ECMP paths: 128 ¦ Port channels: 5000 ¦ Maximum number of links in a port channel: 4000 ¦ Active SPAN sessions: 24 ¦ RPVST instances: 4000 ¦ HSRP groups: 1000 ¦ NAT entries: 8000 ¦ MST instances: 64 ¦ Queues: 8 ¦ Packet buffer memory: 64 MB |
| Routing Protocol | BGP, OSPF, IS-IS, EIGRP, MSDP, PIM-SM, PIM-SSM, RIP-2, RSVP, MPLS, ECMP, Bidirectional Forwarding Detection (BFD), VRF, static IP routing, HSRP, policy-based routing (PBR) |
| Remote Management Protocol | YANG, NETCONF, RESTCONF, SNMP 3, SNMP 2, SSH-2 |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | EVPN, PSE, POAP, DME, non-blocking architecture, IPSec support, MACsec support, VXLANsec encryption, flow control, vPC technology, SMU, ToR, port-side intake, 6-core CPU, AI/ML powered, DHCP relay, UDLD, VLAN support, LACP, LLDP support, MSTP support, RSTP support, ASM, IGMP snooping, IPv6 multicasting, MLD snooping, proxy ARP, QoS, SSM, AAA, sFlow |
| Compliant Standards | IEEE 802.1ae |
| Processor | 1 |
| RAM | 32 GB (installed) / 64 GB (max) |
| Built-in Devices | 128 GB SSD, 4 x fans |
| Status Indicators | Beaconing, environment, status |
| Expansion / Connectivity | |
| Interfaces | 32 x 1/10/25GBase-X SFP ¦ 16 x 10/25/50GBase-X SFP ¦ 12 x 40/100GBase-X QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP ¦ 1 x USB ¦ 1 x serial (RS-232) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| MTBF | 322,260 hours |
| Compliant Standards | RoHS, 47 CFR Part 15, AS/NZS CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, CNS 15936 Class A, EN 300386, KS C 9610-3-2:2020, KS C 9610-3-3:2020, EN 55035, CISPR 35, KS C 9835, EN 61000-6-1, EN 61000-6-2, RoHS, WEEE |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco NX-OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18 in |
| Height | 1.7 in |
| Weight | 16.38 lbs |
