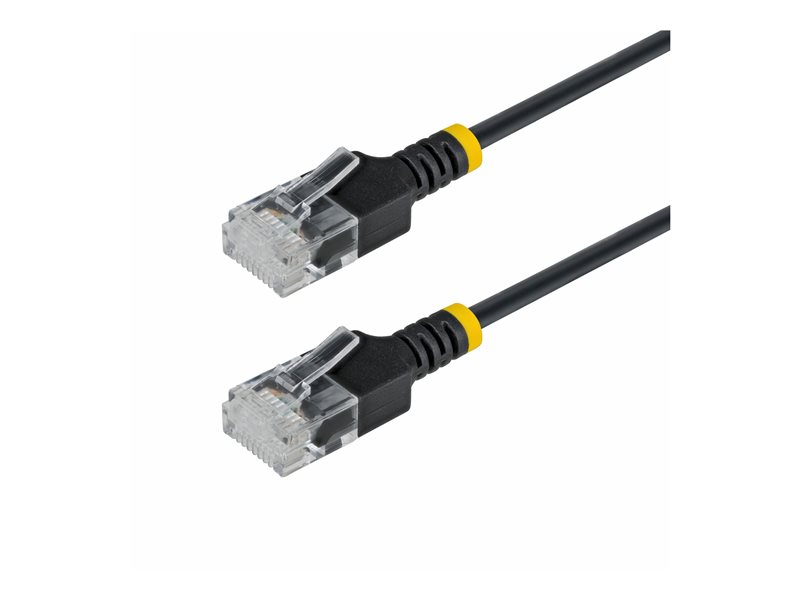

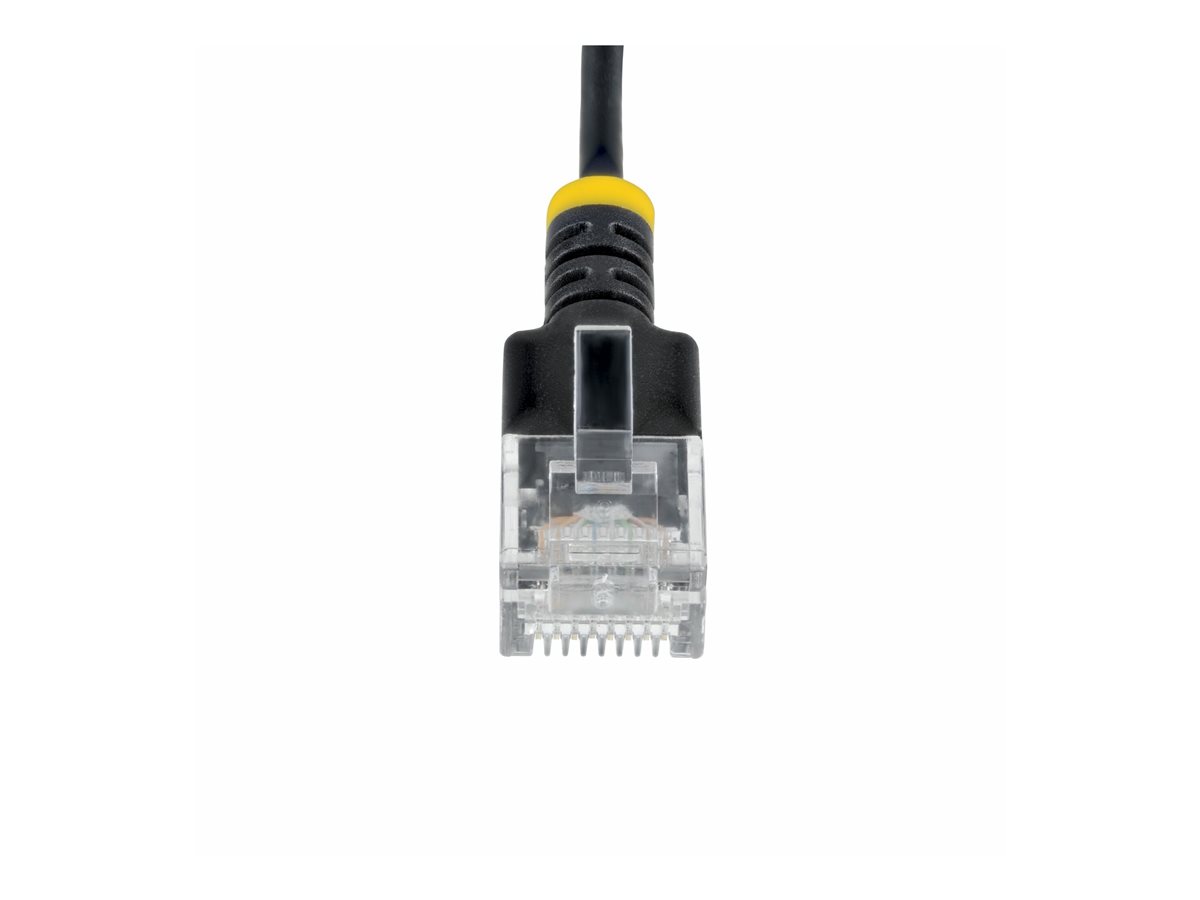

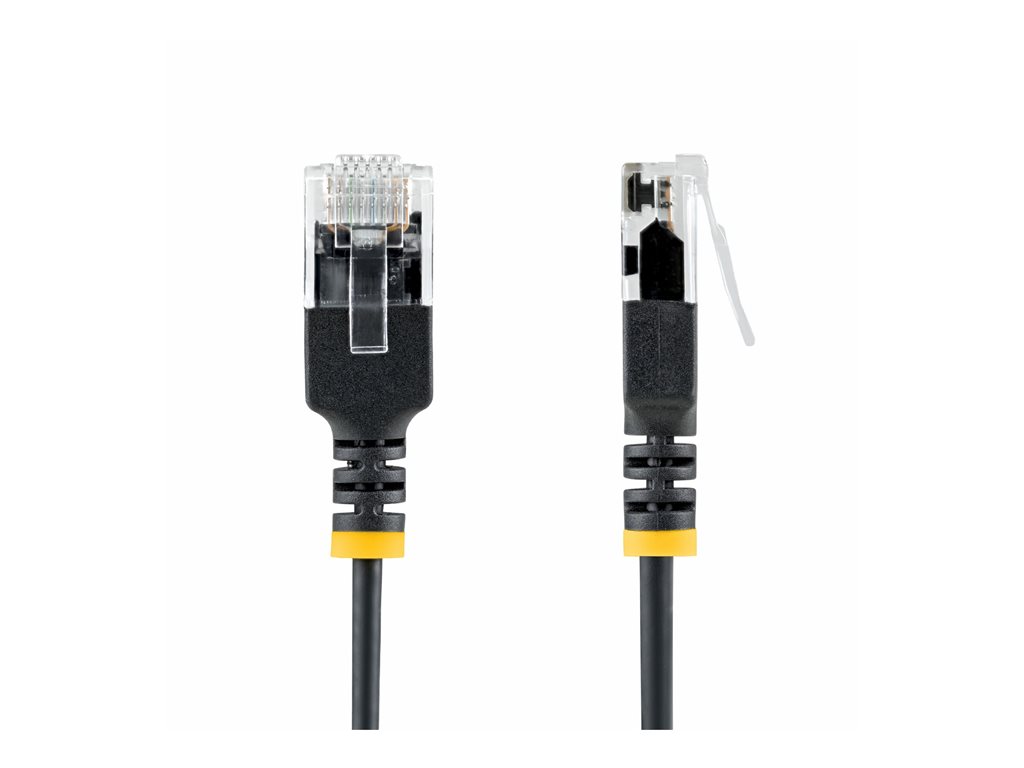

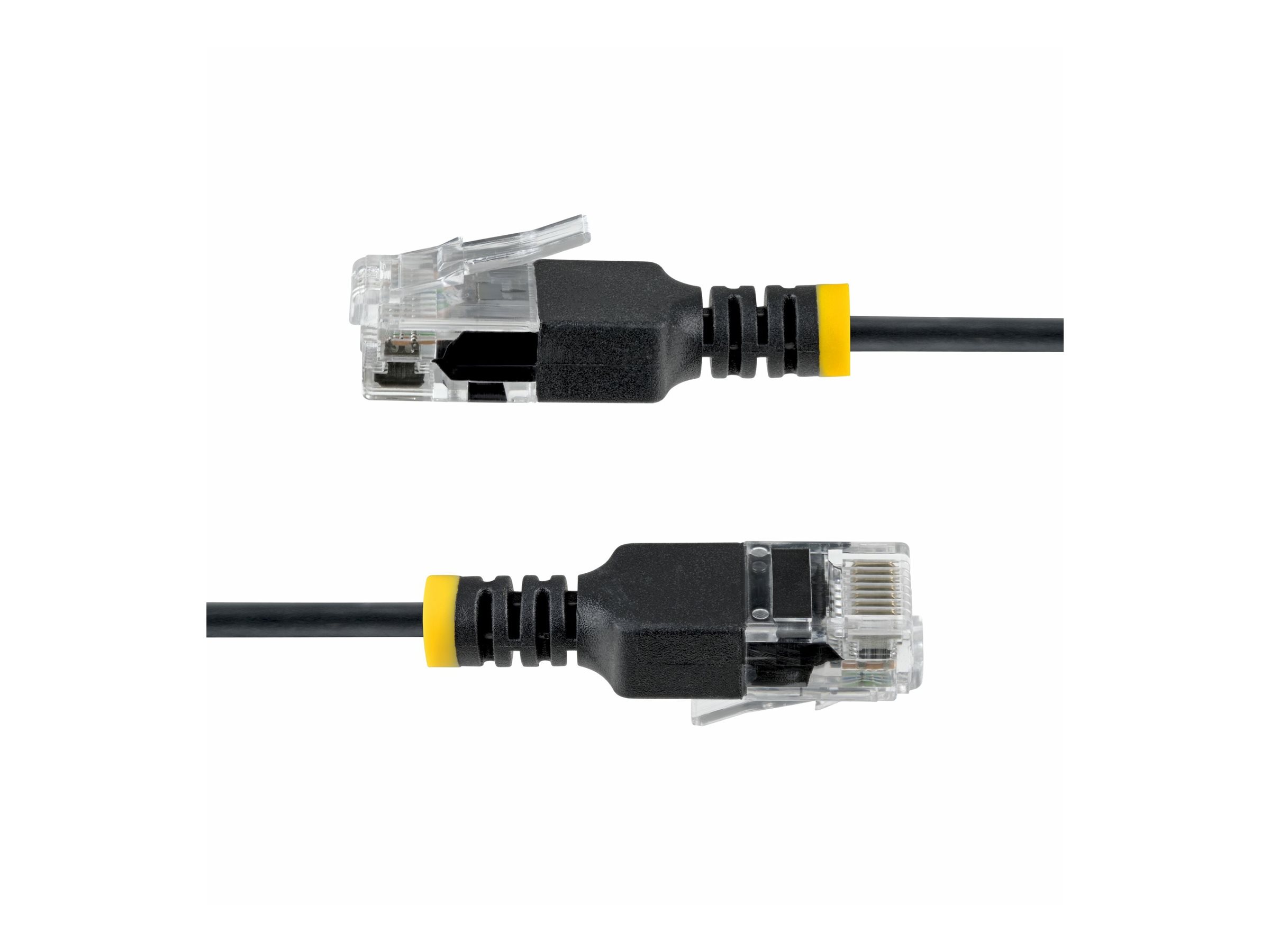

Patch cable - RJ-45 (M) to RJ-45 (M) - 6 in - 0.1 in - UTP - CAT 6a - snagless, ultra-slim, stranded copper, molded - black
| Main Specifications | |
|---|---|
| Product Description | Startech patch cable - 6 in - black |
| Type | Patch cable - CAT 6a |
| Technology | UTP |
| Wiring Scheme | T568B |
| Wires per Cable | 8 wires |
| Features | Snagless, ultra-slim, stranded copper, molded, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
| Cable Length | 6 in |
| Diameter | 0.1 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Black |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6a |
| Technology | UTP |
| Wiring Scheme | T568B |
| Jacket Material | Thermoplastic elastomer (TPE) |
| American Wire Gauge (AWG) | 34 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Snagless, ultra-slim, stranded copper, molded, pure bare copper conductors, 50 micron gold-plated connectors, flexible, minimized Near-End Crosstalk (NEXT), reduced Return Loss (RL), translucent connector boots, up to 10 Gbps |
| Cable Length | 6 in |
| Diameter | 0.1 in |
| Weight | 0.21 oz |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ANSI/TIA-568-C.2, TIA/EIA-568-B.1-2001, WEEE - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.9 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 0.6 in |
| Shipping Weight | 0.28 oz |
