Network tester
| Main Specifications | |
|---|---|
| Product Description | Startech network tester |
| Device Type | Network tester |
| Tests, Tools and Measurements | Optical power meter, Visual Fault Locator (VFL), Light Source, fiber breaks detection, link insertion loss, insertion loss (attenuation), tests for signal loss |
| Features | Auto shut-off, red light |
| Fiber | Multi-mode, single-mode - 1310 nm, 850 nm, 1300 nm, 1490 nm, 1550 nm, 1625 nm |
| Dimensions (WxDxH) | 3 in x 1.3 in x 6.3 in |
| Weight | 13.76 oz |
| Manufacturer Warranty | 2 years |
| General | |
| Device Type | Network tester |
| Media | Fiber |
| Features | Auto shut-off, red light |
| Tests, Tools and Measurements | Optical power meter, Visual Fault Locator (VFL), Light Source, fiber breaks detection, link insertion loss, insertion loss (attenuation), tests for signal loss |

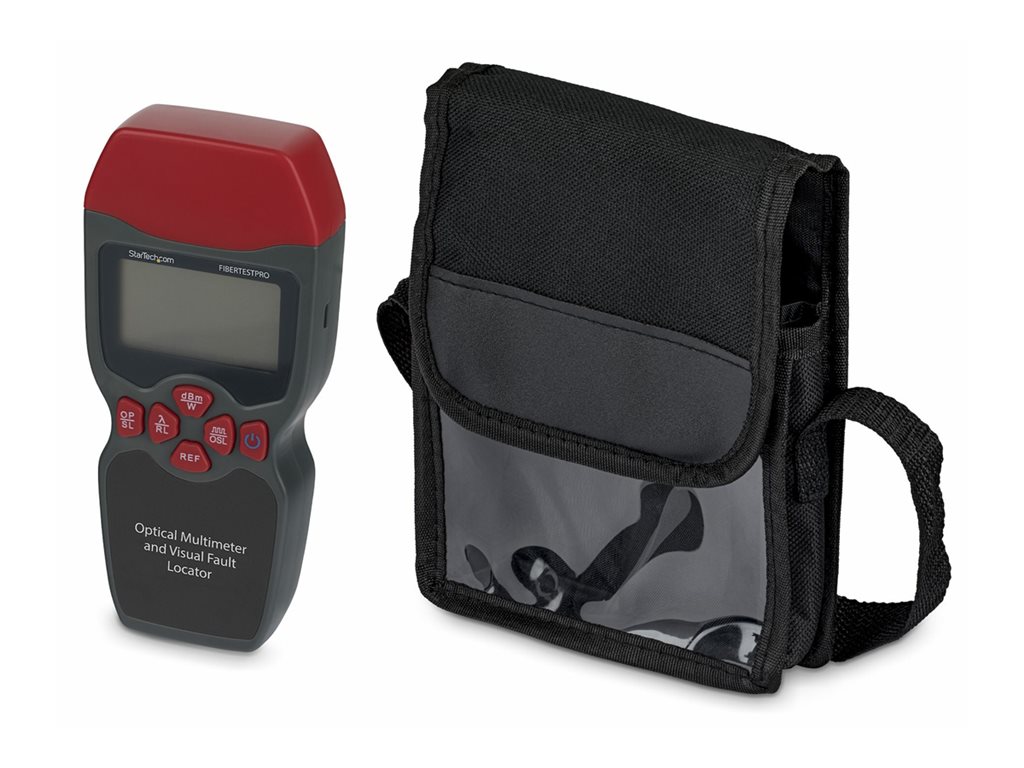

| Included Accessories | Carrying case, cleaning swabs |

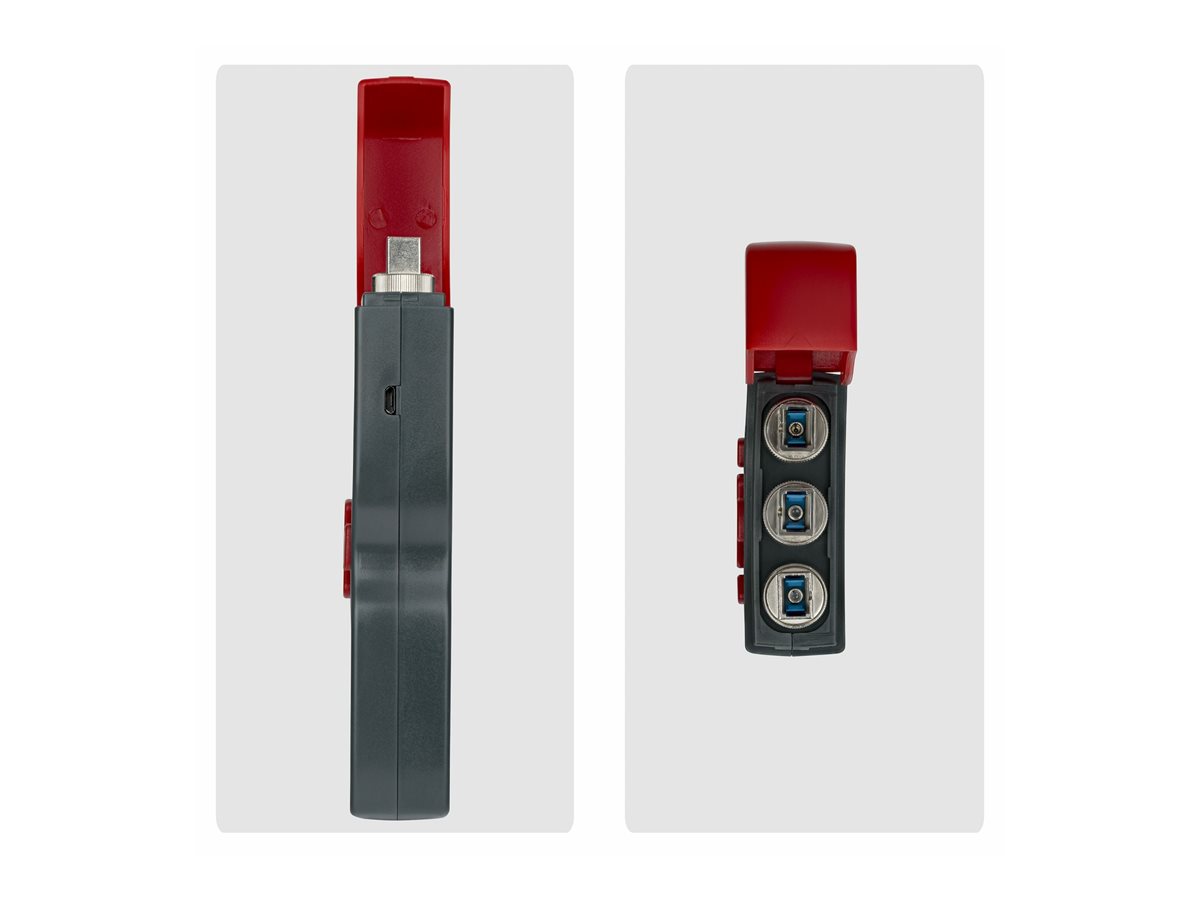

| Connectors | FC, SC, ST, Micro-USB |
| Compliant Standards | RoHS, WEEE, FCC |
| Warranty | 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Operating | 20 - 90% |

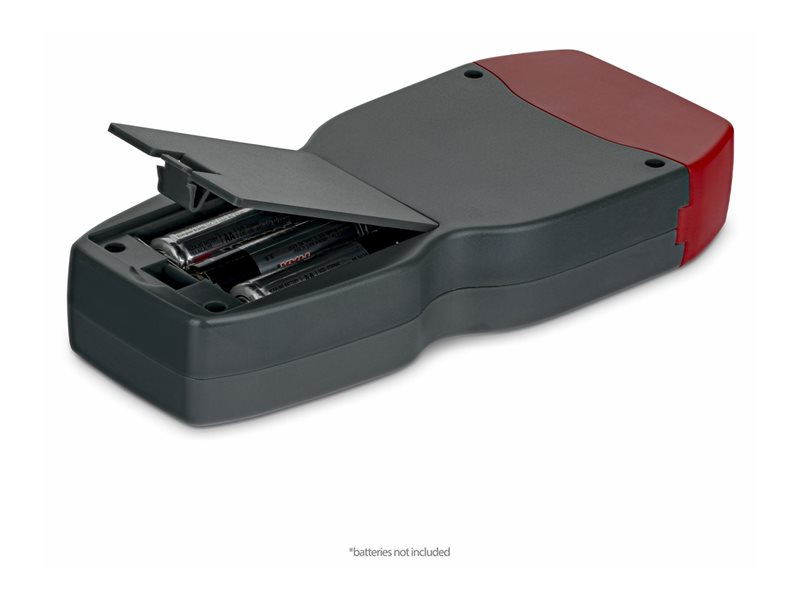

| Battery | |
| Required Qty | 3 |
| Supported Battery Form Factor | AA |
| Display | |
| Technology | LCD |
| Features | Backlight |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 1.3 in |
| Height | 6.3 in |
| Weight | 13.76 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.1 in |
| Shipping Depth | 2.4 in |
| Shipping Height | 7.5 in |
| Shipping Weight | 14.11 oz |
