Docking station - USB4 / Thunderbolt 4 / Thunderbolt 5 - 2 x DP - 1GbE, 2.5GbE - 100 watt - North America, Japan
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - USB4 / Thunderbolt 4 / Thunderbolt 5 - 2 x DP - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB4 / Thunderbolt 4 / Thunderbolt 5 |
| Video Interfaces | 2 x DP |
| Dimensions (WxDxH) | 7.5 in x 3.1 in x 1.1 in |
| Weight | 10.58 oz |
| Color | Space gray |
| Localization | North America, Japan |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter 134.4 watt AC 100-240 V 100 watt Power Provided (DC 21 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 7.5 in |
| Depth | 3.1 in |
| Height | 1.1 in |
| Weight | 10.58 oz |
| Enclosure Color | Space gray |
| Localization | North America, Japan |
| Expansion / Connectivity | |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ 1 x USB-C 3.2 - 24 pin USB-C ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB4 with Power Delivery (100W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

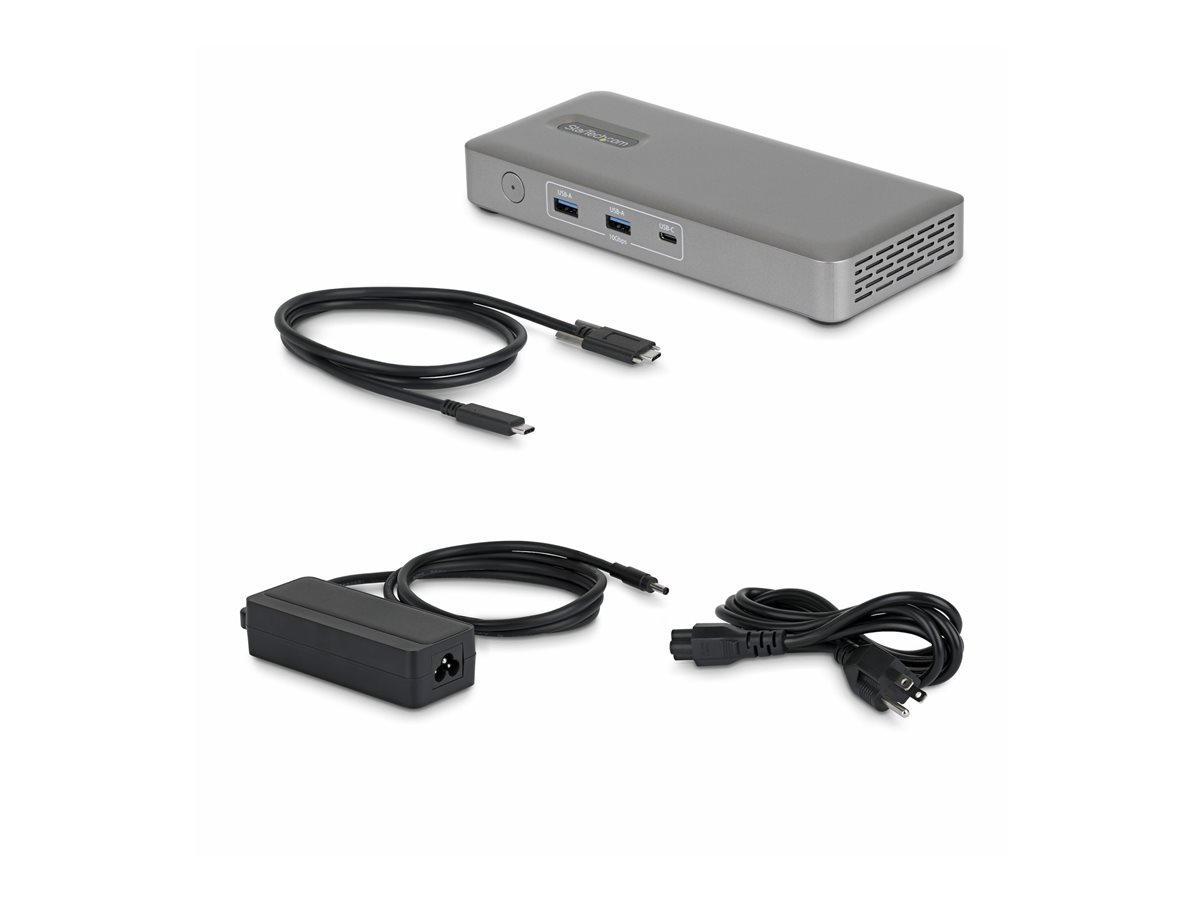

| Cables Included | 1 x USB-C screw-lock cable - external - 3.3 ft |
| Features | Driverless, up to 10Gbps data transfer, security lock slot (cable lock sold separately), power LED status, wake on LAN, Preboot Execution Environment (PXE) support, full duplex support |
| Security Slot Type | Noble Wedge security slot / Kensington nano security slot / Kensington security slot |
| Compliant Standards | WEEE, RoHS, FCC, Plug and Play, DisplayPort 1.4, UASP (USB Attached SCSI Protocol) |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 2, USB4 |
| Power | |
| Power Device | Power adapter |
| Power Consumption (Max) | 134.4 watt |
| Voltage Required | AC 100-240 V |
| Power Provided | 100 watt |
| Voltage Provided | DC 21 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Single Display) ¦ 4K - 144 Hz (Dual Display (DisplayPort 1.4)) ¦ 4K - 240 Hz (Single Display) |
| System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Windows 10 (on ARM), Windows 11 (on ARM), Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0, Apple macOS Sonoma 14.0, Apple macOS Sequoia 15.0, Apple macOS Tahoe 26, Ubuntu 24.04 or later, Google Chrome OS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 3.4 in |
| Shipping Weight | 3.09 lbs |
