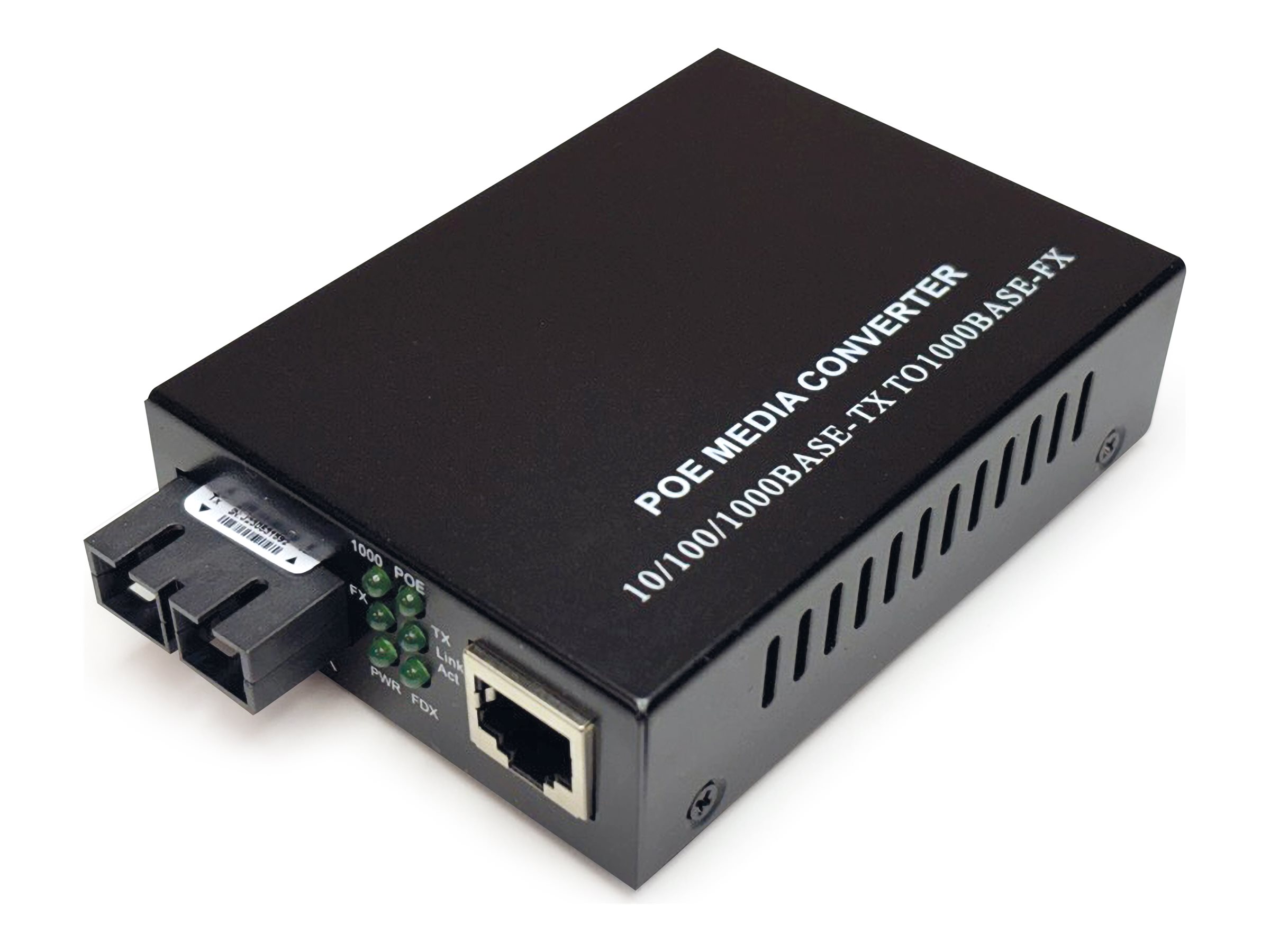

Fiber media converter - 1GbE, GigE (optical) - over CAT 5 UTP copper - 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-FX - RJ-45 / SC multi-mode - up to 1.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Black Box LPS601A-MM1300 - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE, GigE (optical) - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC multi-mode |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-FX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, GigE (optical) |
| Transmission Medium | CAT 5 UTP copper |
| Max Transfer Distance | 1.2 miles |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 2.8 in x 3.7 in x 1 in |
| Weight | 18.34 oz |
| TAA Compliant | Yes |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-TX (PoE+) - RJ-45 female ¦ 1 x Ethernet 1000Base-FX (duplex) - SC multi-mode female x 2 |
| Miscellaneous | |
| Included Accessories | Power cable |
| MTBF | 114,000 hours |
| Compliant Standards | FCC Part 15 Class B, RoHS, NOM |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-FX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, GigE (optical) |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Power, link/activity, PoE |
| Features | Half duplex mode, full duplex mode, 100 m transmission distance on RJ-45 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3z, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 18.34 oz |
