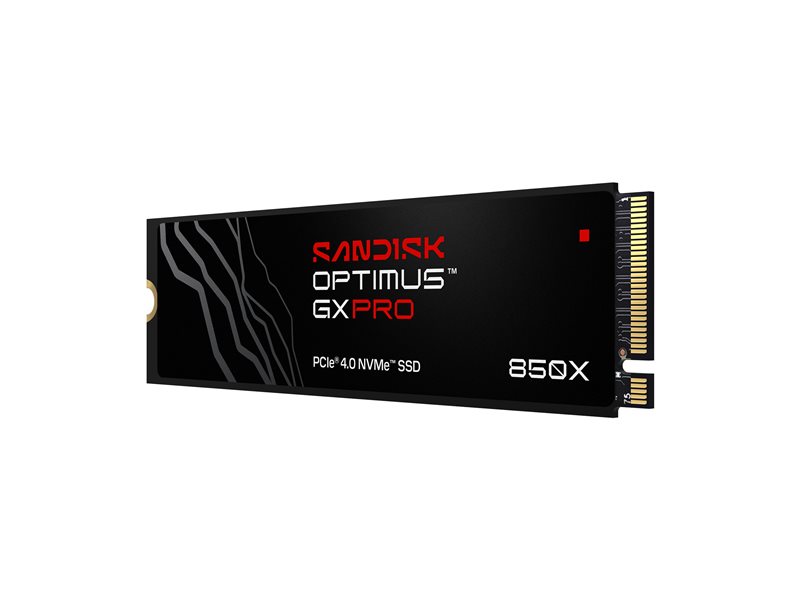

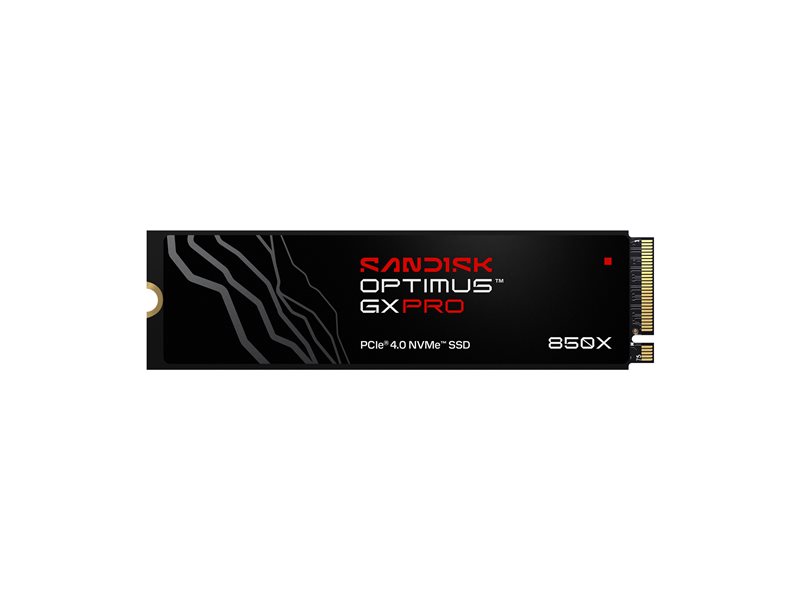

SSD - encrypted - 2 TB - internal - M.2 2280 S3-M - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01
| Main Specifications | |
|---|---|
| Product Description | SanDisk Optimus GX PRO 850X - SSD - 2 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 2 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 S3-M |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 1.4, nCache 4.0 technology, Sandisk BiCS TLC 3D CBA NAND |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.26 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 S3-M |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 1.4, nCache 4.0 technology, Sandisk BiCS TLC 3D CBA NAND |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.26 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, CAN ICES-3(B)/NMB3(B), CB Scheme, FCC, KCC, Morocco, RCM, TUV, UL, VCCI, UKCA, RoHS |
| Power | |
| Power Consumption | 7.5 watt (read) ¦ 7 watt (write) ¦ 5 mW (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
| Performance | |
| SSD Endurance | 1200 TB |
| Internal Data Rate | 7300 MBps (read) / 6600 MBps (write) |
| 4KB Random Read | 1200000 IOPS |
| 4KB Random Write | 1100000 IOPS |
| Reliability | |
| MTBF | 175,000,000 hours |
| Software & System Requirements | |
| Software Included | SanDisk SSD Dashboard, Acronis True Image |
| OS Required | Windows 10 or later |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 S3-M |
