Wood Edition - motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4, USB 3.2 Gen 2 - 2 x 5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

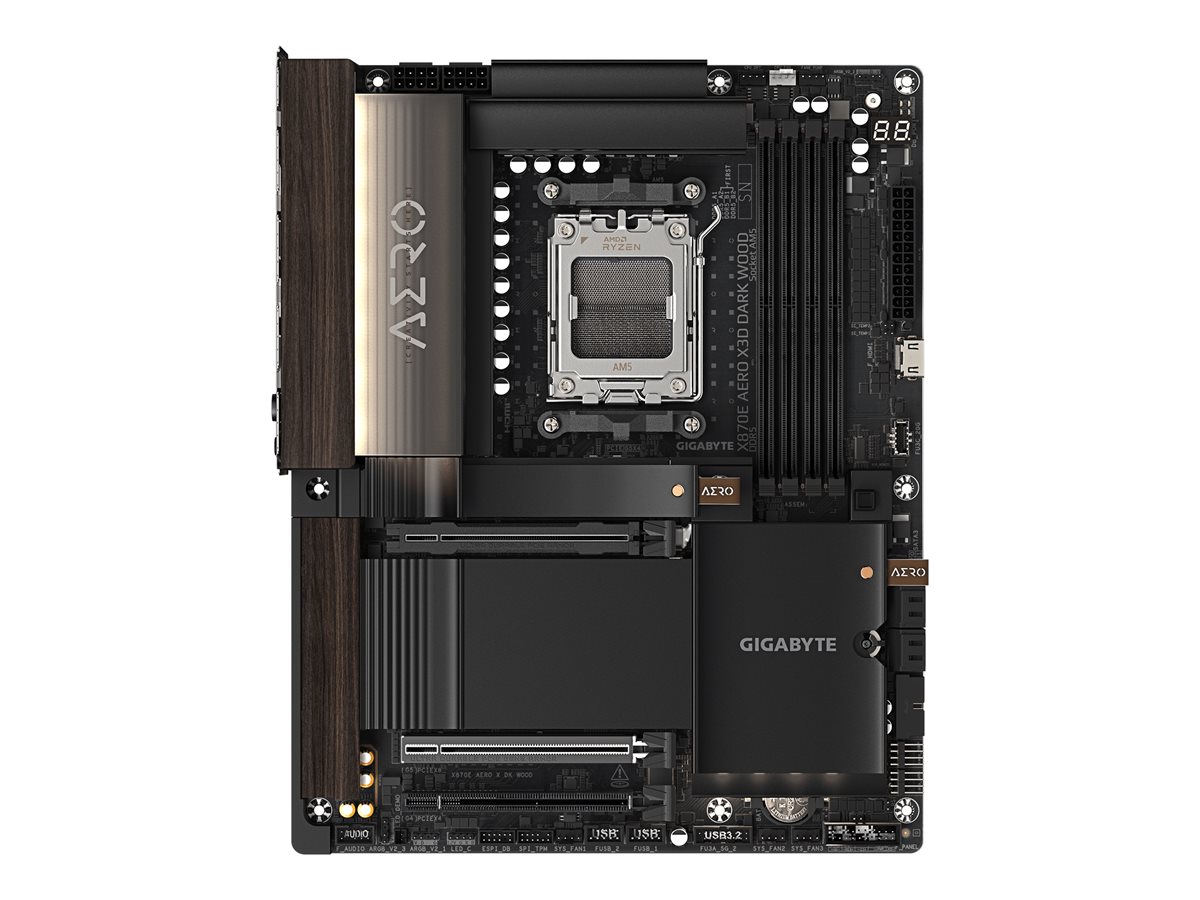

| Product Description | Gigabyte X870E AERO X3D DARK WOOD - Wood Edition - motherboard - ATX - Socket AM5 - AMD X870E |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 4 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 5 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2 x 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2280/2580 M.2 Key M slot) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x USB4 ¦ 5 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x antenna ¦ 2 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 1 x HDMI |
| Internal Interfaces | USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, G-Connector, 3 x thermal pads for M.2 SSD thick/thin |
| Cables Included | 2 x Serial ATA cable |
| Software Included | GIGABYTE Smart Backup, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Control Center |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection |
| Hardware Features | Q-Flash, Q-Flash Plus, Q-Flash Plus button, Clear CMOS Button, power button, reset button, 16+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, DIY Friendly Design, M.2 EZ Flex Design, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard Ext., M.2 Thermal Guard L, PCIe EZ Latch Plus, pre-mounted I/O shield, Thermal Baseplate, Ultra Durable, VRM Thermal Armor Advanced, WIFI EZ Plug, X3D Turbo Mode 2.0, wood grain panels, AI Overclocking, AORUS AI SNATCH, GIGABYTE Smart Fan 6 |
| LAN | |
| Network Controller | Mediatek MT7927 / RZ738 |
| Network Interfaces | 2 x 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 9000 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5600 MT/s (O.C.), 5200 MT/s, 4800 MT/s |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
