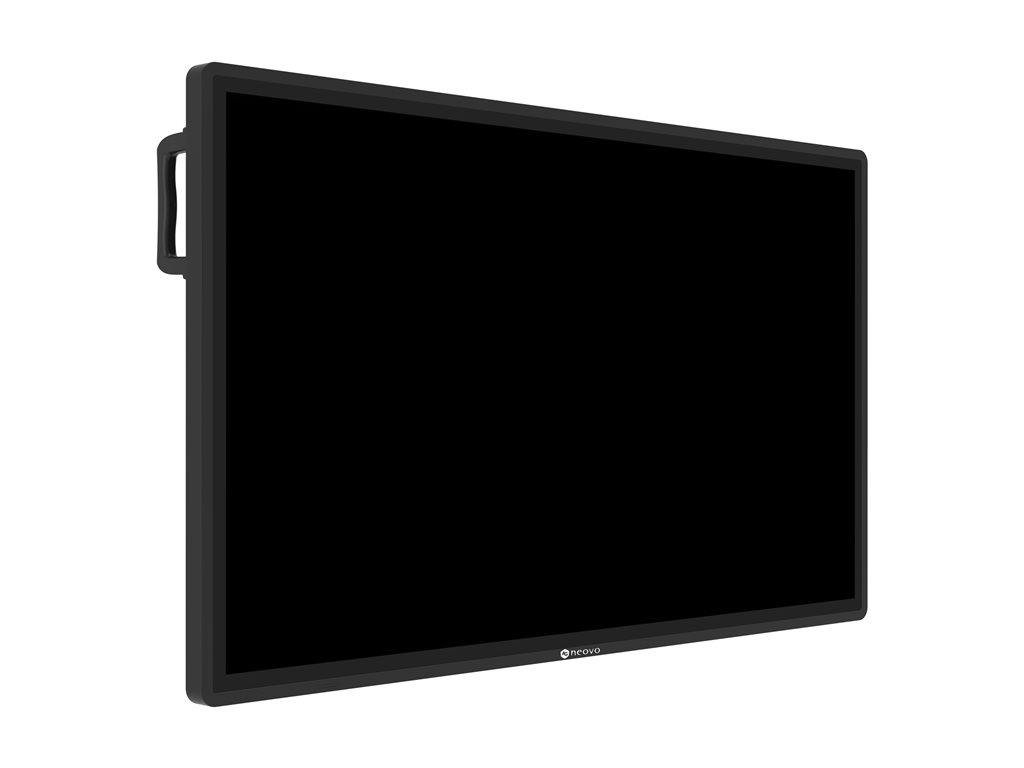

43" Diagonal Class LED-backlit LCD display - surveillance - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|

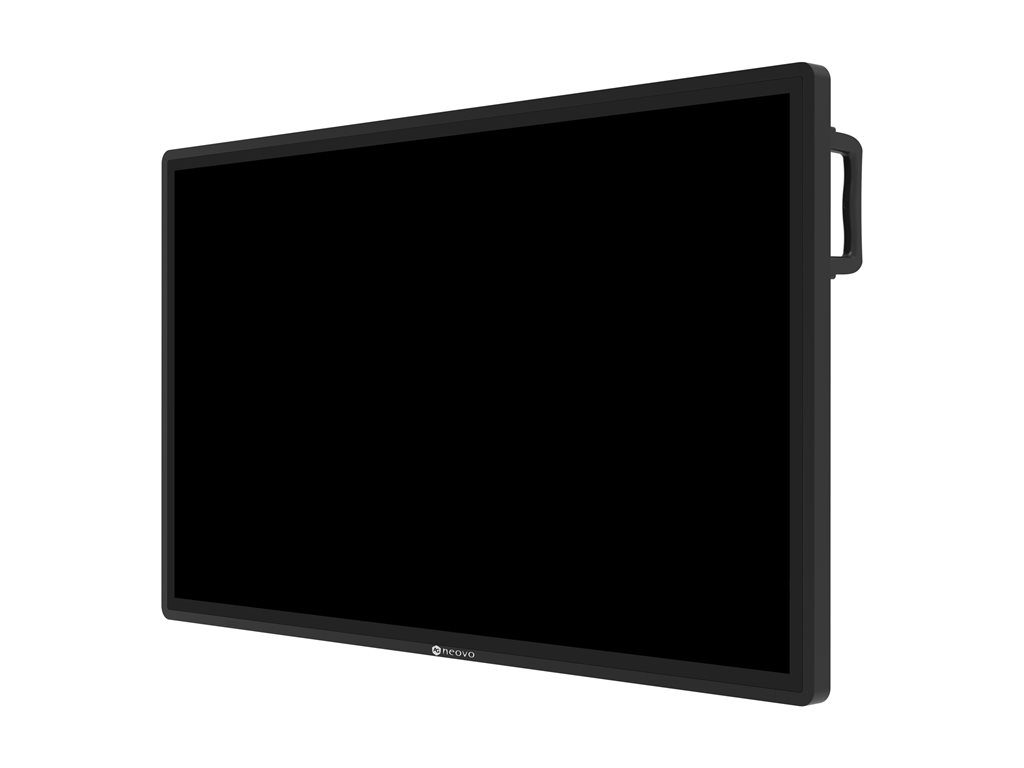

| Product Description | AG Neovo TTN-4301 43" LED-backlit LCD display - 4K - for surveillance |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1445304 |
| Diagonal Class | 43" |
| Commercial Use | Yes - surveillance |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | Composite, HDMI |
| HDMI Ports Qty | 1 ports |
| Connectivity | LAN |
| PC Interface | DVI, VGA (HD-15) |
| Technology | IPS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Metal casing |
| Picture Enhancements | Adjustable gamma, black-level adjustment |
| Speaker System | 2 speakers |
| USB | Yes |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 82 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 39.4 in x 3.3 in x 23.3 in |
| Weight | 41.89 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1445304 |
| Energy Class | Class G |
| Power Consumption Operational | 82 watt |
| Power Consumption SDR (On mode) | 82 kWh/1000h |
| Diagonal Class | 43" |
| Commercial Use | Yes - surveillance |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | Composite, HDMI |
| HDMI Ports Qty | 1 ports |
| PC Interface | DVI, VGA (HD-15) |
| Modes | Portrait mode, landscape mode, CCTV picture mode |
| Picture Enhancements | Adjustable gamma, black-level adjustment |
| Dimensions | Without stand |
| Width | 39.4 in |
| Depth | 3.3 in |
| Height | 23.3 in |
| Weight | 41.89 lbs |
| Miscellaneous | |
| Cables Included | HDMI cable |
| Compliant Standards | BSMI, FCC, RoHS, WEEE, REACH, IK10, LVD, IP22, EAC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Power Consumption (Off Mode) | 0 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.245 mm |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 3H Hard, 1% haze |
| Image Contrast Ratio | 1200:1 |
| Brightness | 450 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 5 ms |
| Commercial Features | Metal casing |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Anti Burn-in Technology |
| Connections | |
| Connector Type | DVI-I input ¦ HDMI ¦ Composite video input ¦ Composite video output ¦ RS-232 input ¦ LAN ¦ USB 2.0 ¦ Audio line-in ¦ Audio line-out / SPDIF output |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 24 watt |
| Speakers | 2 x main channel speaker - 12 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 44.1 in |
| Depth (Shipping) | 7.1 in |
| Height (Shipping) | 28 in |
| Weight (Shipping) | 49.38 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 200 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
