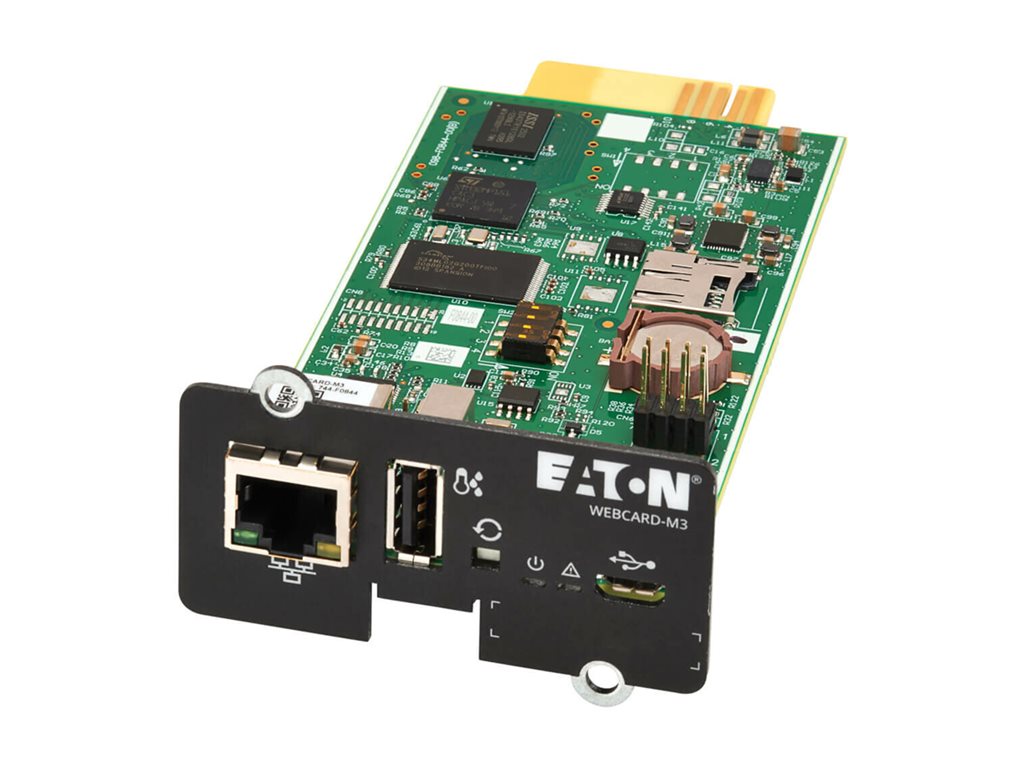

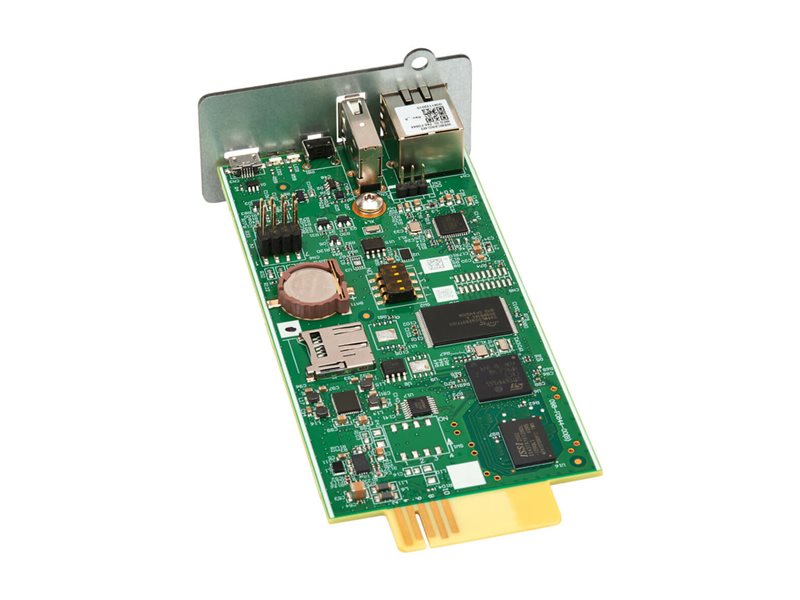

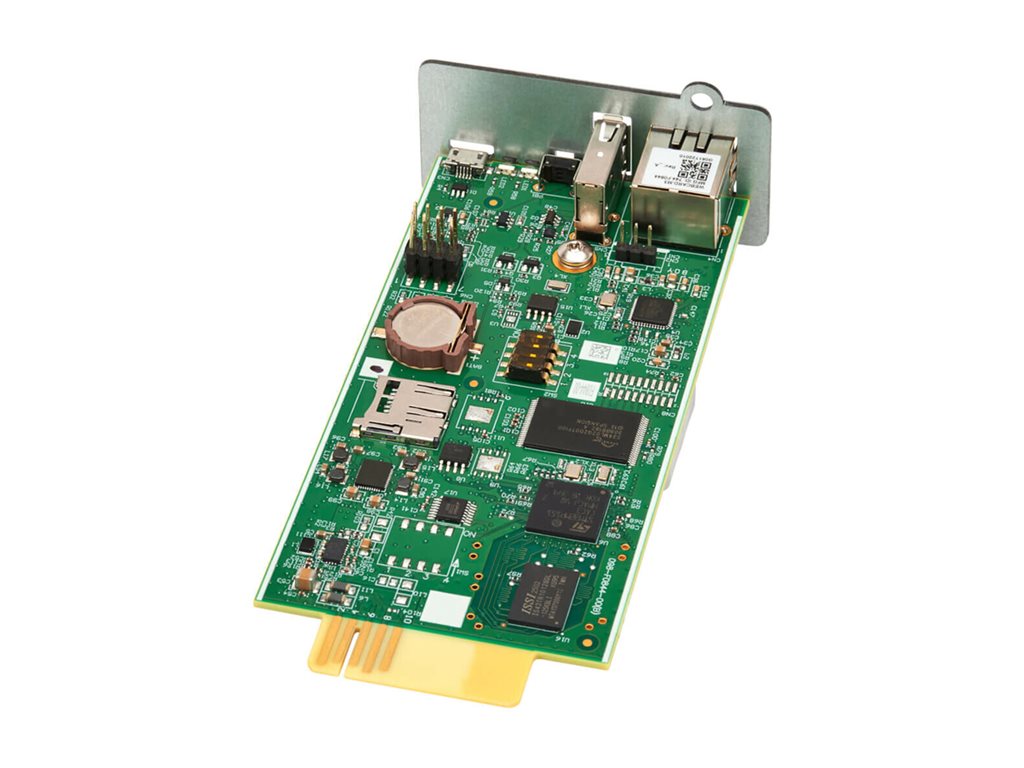

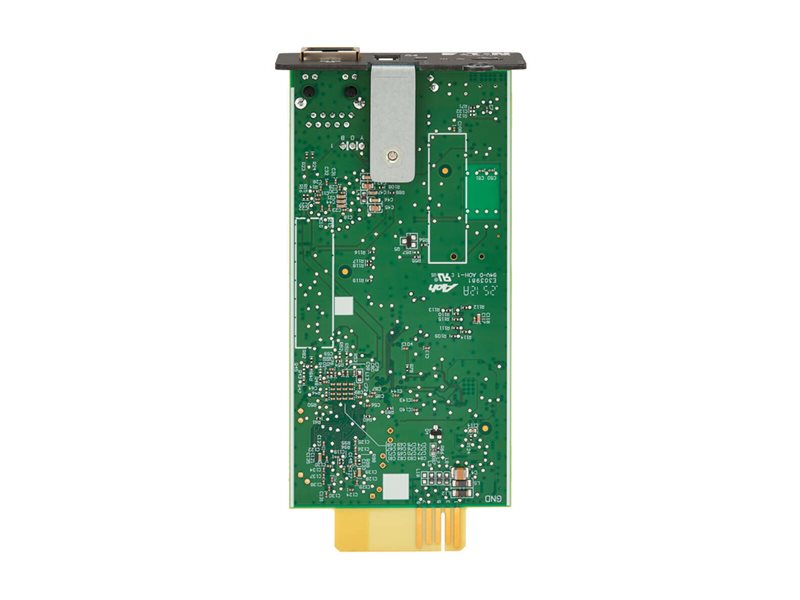

UPS network management card - Gigabit Ethernet x 1 + USB x 2
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - UPS network management card - Gigabit Ethernet x 1 + USB x 2 |
| Device Type | UPS network management card |
| Form Factor | Plug-in module |
| Ports | Gigabit Ethernet x 1 + USB x 2 |
| Dimensions (WxDxH) | 2.6 in x 5.2 in x 1.7 in |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | ARP |
| Power | DC 5 - 18 V (50/60 Hz) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS network management card |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x USB - 4 pin Micro-USB Type B ¦ 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Encryption Algorithm | TLS 1.2 |
| Compliant Standards | RoHS |
| Networking | |
| Ports | Gigabit Ethernet x 1 + USB x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | ARP |
| Remote Management Protocol | HTTPS, MQTTS, TLS 1.2, SNMP 1, SNMP 3, NTP, SMTPS, BOOTP, DHCP, CLI, SSH, Syslog |
| Status Indicators | Power, warning |
| Features | Remote reboot, reset button, remote device management, E-mail alert, SMS alert, Modbus compatible |
| Power | |
| Voltage Required | DC 5 - 18 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 5.2 in |
| Height | 1.7 in |
