Barcode scanner - desktop - decoded - USB, RS-232
| Main Specifications | |
|---|---|
| Product Description | Star NLS-FM431 - barcode scanner |
| Type | Barcode scanner - desktop - USB, RS-232 - decoded |
| Color | Black |
| Minimum Bar Width | 3 mil |
| Scan Element Type | CMOS - white LED / green LED |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wired |
| Dimensions (WxDxH) | 1.6 in x 1.9 in x 1 in |
| Weight | 1.98 oz |
| General | |
| Type | Barcode scanner - desktop |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |

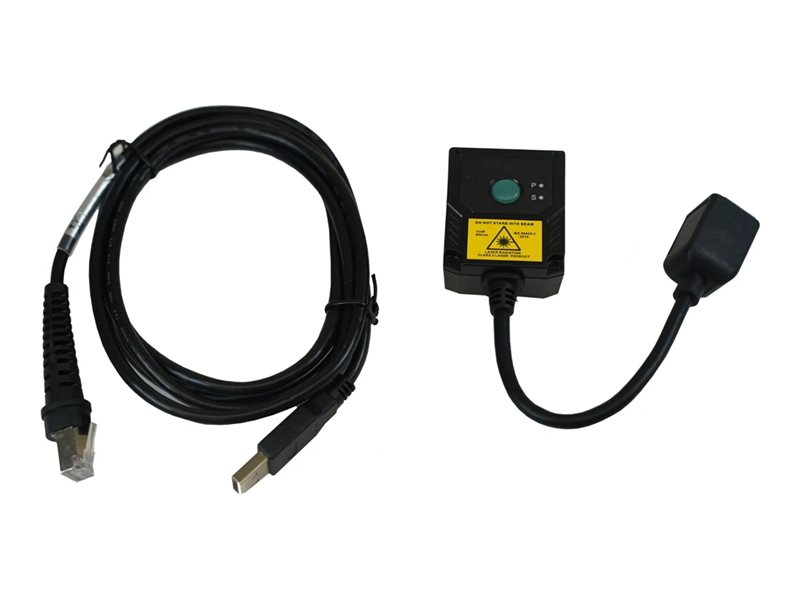

| Included Accessories | USB dongle |
| Cables Included | 1 x USB cable |
| Compliant Standards | IP54, FCC Part 15 Class B, EMC Class B, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 1.9 in |
| Height | 1 in |
| Weight | 1.98 oz |
| Barcode | |
| Interface Type | USB, RS-232 |
| Minimum Bar Width | 3 mil |
| Scan Element Type | CMOS - white LED / green LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 650 nm |
| Skew (Degrees) | 55 |
| Pitch (Degrees) | 55 |
| Decode Capability | PDF417, QR code, Data Matrix, EAN-8, Aztec, Micro QR code, GM Code, Code One, Code 128, EAN-13, UPC-E, UPC-A, Code 39, Codabar, Code 93, GS1 DataBar, ISBN, ISSN, MSI-Plessey, USPS Postnet, Intelligent Mail Barcode, Royal Mail, Kix (Netherlands) Post, Australian Post, Japanese Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | Drop protection, 15 kV ESD protection (air discharge), 25% min. symbol contrast, 32° vertical field of view, 51° horizontal field of view, 8 kV ESD protection (direct discharge) |
