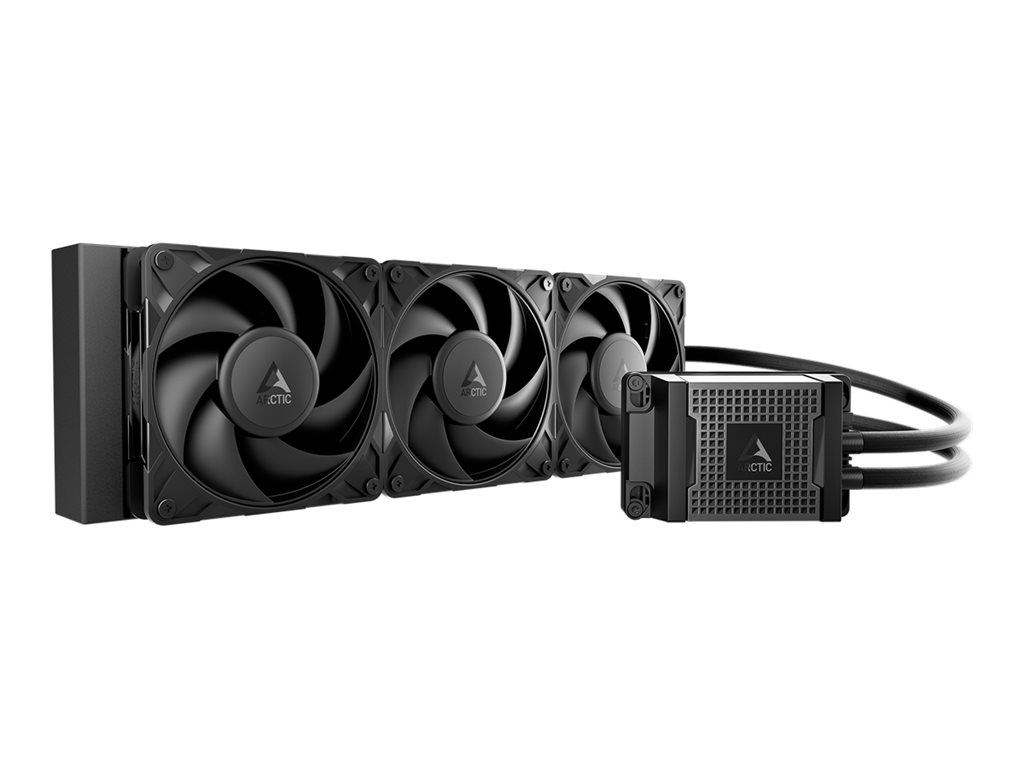

Processor liquid cooling system - Radiator Size: 360 mm - (for: SP3, SP6, sTR5, sTRX4, sWRX8, TR4) - copper base with skiving fins - 120 mm
| Main Specifications | |
|---|---|
| Product Description | ARCTIC Liquid Freezer WS360-SP6 - processor liquid cooling system |
| Product Type | Processor liquid cooling system |
| Package Content | Thermal paste MX-7 (2g), 3 x P12 Pro PST CO fans |
| Compatibility | Socket SP3, Socket SP6, Socket sTR5, Socket sTRX4, Socket sWRX8, Socket TR4 |
| Heatsink Material | Copper base with skiving fins |
| Liquid Cooler Radiator Size | 360 mm |
| Fans Qty | Triple |
| Fan Diameter | 120 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 600-3000 rpm |
| Air Flow | 77 cfm |
| Power Connector | 4-pin connector + 4-pin socket |
| Rated Voltage | 12 V |
| Features | Pulse-width modulation (PWM) support, tube (450 mm) |
| Product Material | Ethylene propylene rubber (EPDM), aluminum, copper |
| Weight | 4.63 lbs |
| Manufacturer Warranty | 6-year warranty |
| General | |
| Product Type | Processor liquid cooling system |
| Product Material | Ethylene propylene rubber (EPDM), aluminum, copper |
| Package Content | Thermal paste MX-7 (2g), 3 x P12 Pro PST CO fans |
| Weight | 4.63 lbs |
| Shipping Dimensions (WxDxH) / Weight | 6.1 in x 17 in x 6.1 in / 5.62 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 6 years |
| Miscellaneous | |
| Mounting Kit | Included |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Heatsink & Fan | |
| Compatible With | Socket SP3, Socket SP6, Socket sTR5, Socket sTRX4, Socket sWRX8, Socket TR4 |
| Heatsink Material | Copper base with skiving fins |
| Radiator Material | Aluminum |
| Radiator Dimensions | 398 mm x 120 mm x 38 mm |
| Fans Qty | 3 |
| Fan Diameter | 120 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 600-3000 rpm |
| Air Flow | 77 cfm |
| Air Pressure | 6.9 mm |
| Power Connector | 4-pin connector + 4-pin socket |
| Rated Voltage | 12 V |
| Rated Current | 0.33 A |
| Features | Pulse-width modulation (PWM) support, tube (450 mm) |
