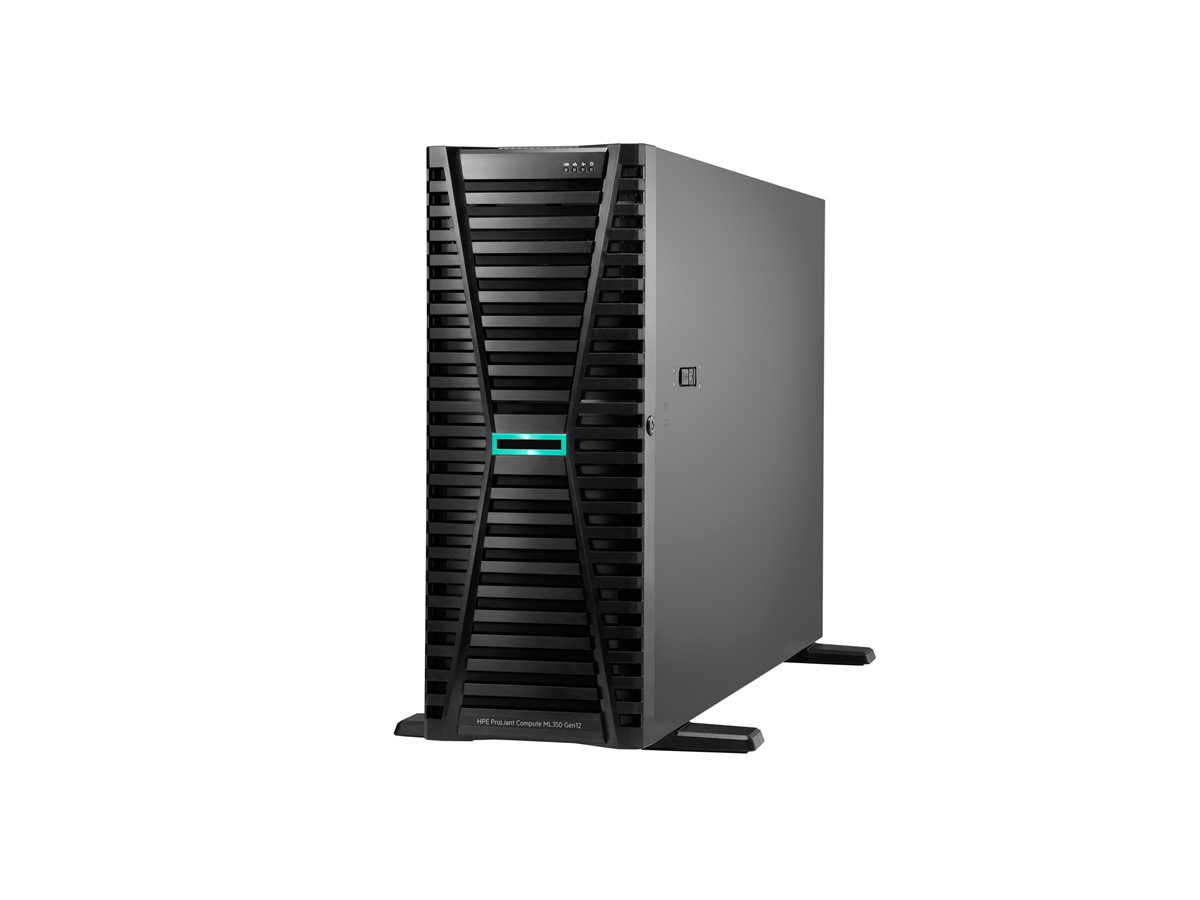

Server - tower 4U - 2-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 128 GB - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant Compute ML350 Gen12 - tower Xeon 6505P 2.2 GHz - 128 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localization | Region: North America |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon 6505P / 2.2 GHz (up to 4.1 GHz, (12-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP |
| Cache Memory | 48 MB L3 cache |
| Cache Per Processor | 48 MB |
| RAM | 128 GB (installed) / 8 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID (HPE NS204i-u v2) - OCP 3.0 (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included) |
| Dimensions (WxDxH) | 23.6 in x 39.4 in x 13.1 in |
| Weight | 115.45 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 4 (total) / 4 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) (for NIC adapter) ¦ 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) (for OROC/NIC adapter) |
| Interfaces | 1 x DisplayPort 1.1a (1 in front) ¦ 1 x VGA (1 rear) ¦ 5 x USB 3.2 Gen 1 - Type A (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO - Type C (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) (management port) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 3 standard fans |
| Theft/Intrusion Protection | Padlock eye, security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI 6.5, ASHRAE Class A3, ASHRAE Class A4, SMBIOS 3.7, Active Directory v1.0, Redfish API, UEFI 2.10, UEFI Class 3, APML, TLS v1.3, PCIe 5.0, AES, DMTF, ACPI, UEFI, WEEE 2002/95/EC, IPv6 Ready |
| RAM | |
| Installed Size | 128 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 28 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 4 x 32 GB |
| Networking | |
| Remote Management Controller | Integrated Lights-Out 7 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 1000 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP 3.0 |
| Controller Interface Type | HPE NS204i-u v2 |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 48 MB |
| Cache Per Processor | 48 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | DisplayPort, VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included) |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 39.4 in |
| Height | 13.1 in |
| Weight | 115.45 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon 6505P |
| Clock Speed | 2.2 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
